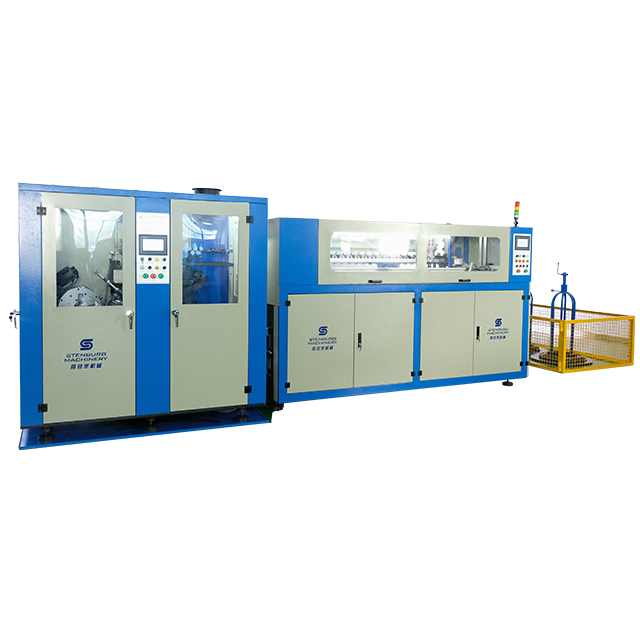

XDB-880 Automatic bonnell spring transfer line
Product Description

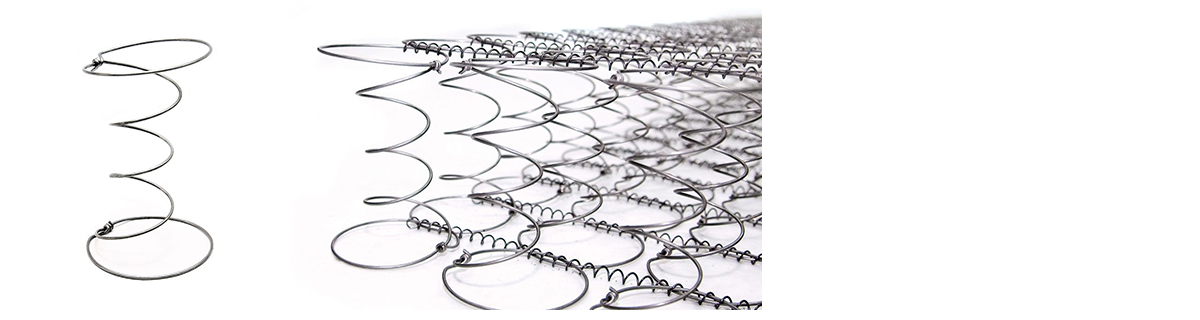

XDB-880 Automatic spring bed core production line Bonnell Springs with Φ2.2 steel wire,5 turns and Φ86 were produced to a innerspring unit with the sizes 90 * 190mm. ln a 8 hours shift XDB-880 produces about 190 innerspring uits for the sizes single bed(90 * 190mm，8 * 23 springs)and about 120 innerspring units for double bed(140 * 190mm，13 * 23 springs)
Technical Characteristics
1.Fully - Computerized coiler,digital Adjustment
2.Various specificiation of coils available in PLC for production
3.Quality products with stable performance
4.Advanced system with operation easily and conveniently
5.Space between coils adjusted accurately and flexibly by Servo Motor
6.High grade protection with hommization design
7.Artustuc design enriching workshop environment
Technical Specification
| Technical Data |
| Spring Type | Bonnell |
| Capacity | 43200 Picces /8 Hours(1800MM*2000MM) |
| Spring Wire Diameter | 1.9mm - 2.4mm |
| Spiral Wire Diameter | 1.30mm - 1.50mm |
| Spring Outside Dimaeter | Φ65-Φ92MM |
| Center Coil Outside Diameter | Φ32-Φ55MM |
| Spring Height | 80-190mm |
| 4 turns(ring) 80 - 120mm |
| 5 turns(ring) 120 - 150mm |
| 6 turns(ring) 140 - 190mm |
| Standard:5 turns(ring) |
| Working Width | 2000mm |
| Performance | 90pcs./ min. 38400pcs. / 8 hours |
| Working Temperature | 0 - 40°C |
| Wire Basket Capacity | ≥ 1000kg |
| Area of use | 800 * 800cm |
| weight | 5000kg |
| Power Requirements | Three Phase 380V,Single Phase 220V 50 - 60hz,lnput Fuse 63A,Cable 4 * 4mm |
| Power Consumption | 18KW |
