XDB-7040 Mattress Side Border Pulling Edge Machine

Product Description




XDB-7040 Mattress Side Border Pulling Edge Machine

Product Description:

This machine is used for the sewing of the entire woven belt ofthe mattress border.Easy operation,exact fixing.

Technical characteristics:

1. Big shuttle core, reduce the chance of replacing the bottom line

2.Automatic oil supply

3.Multi-language selection of display screens

4.The size of the webbing can be replaced by the template to achieve a variety of sizes and styles

5.Automatic stop for thread breakage, which can be returned to the thread

breakage position, and the thread can be threaded to continue sewing

6.Machine failure alarm, machine failure display indicates the corresponding fault code and problem

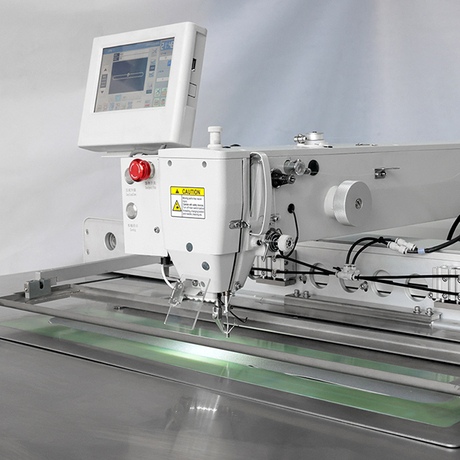

Detail Pictures

Effect Pictures

Technical Specification

                              XDB-7040

Border width

80-450mm

Border thickness

5-30mm

Webbing thickness

2-6mm

Sewing stroke

700*400mm

Sewing speed

1000-2500 RPM

Power supply

1 phase,220V,50Hz

Air pressure

0.6-0.7Mpa

Total power

1KW

Weight

600kg
