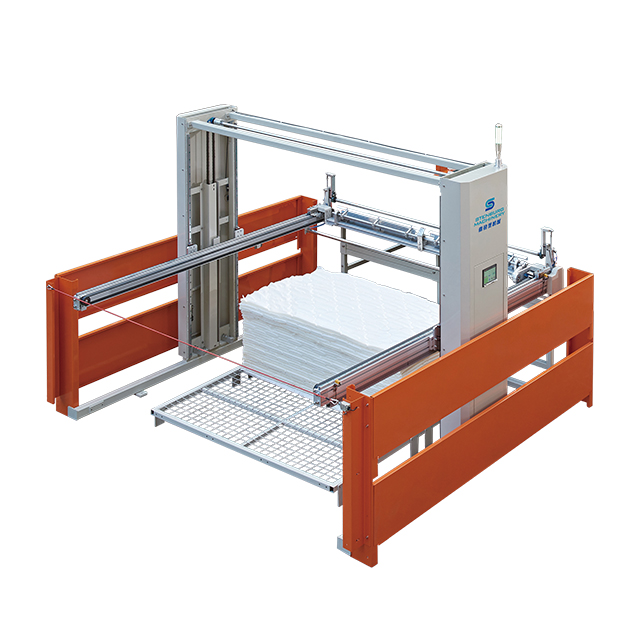

XDB-D-1 Automatic Fabric Stacking Machine

XDB-D-1 Automatic Fabric Stacking Machine

Model:
XDB-D-1
Brand:
Stengburg Mattress machinery

Quantity:
Availability:





Inquire Add to Basket

Product Description

XDB-D-1 Automatic Fabric Stacking Machine

Product Description

suitable for use with computer automatic cutting machine, which can stack the cut materials neatly.

Technical Characteristics

1. Reasonable structure to save space.

2. The operation system is precisely controlled by double servo motor. Stacking fast ,orderly and efficiently.

3. Panasonic PLC control system, which is intelligent, stable and easy to operate.

4. Strong functions of automatic storage and automatic detection .

5. Various stacking modes to meet the different needs of customers, flexible and diverse in use.

6. Strong functions of automatic storage and automatic detection .

7. It is used for stacking mattress material, home textile products etc.

8. Save labor cost to reduce the cost of production.

Detail Pictures

XDB-D-1细节图

Effect Pictures

Technical Specification

Parameter Unit(mm)	XDB-D-1
Machine Size	L3350 × W3685 × H2170mm
Stacking material	2200*2445mm
Stacking speed	>200pcs/hour
Maximum stacking height	1800mm
Operating air pressure	0.4-0.8Mpa
Total power required	2.3KW
Voltage	220V/50HZ
Gross Weight	750kg
