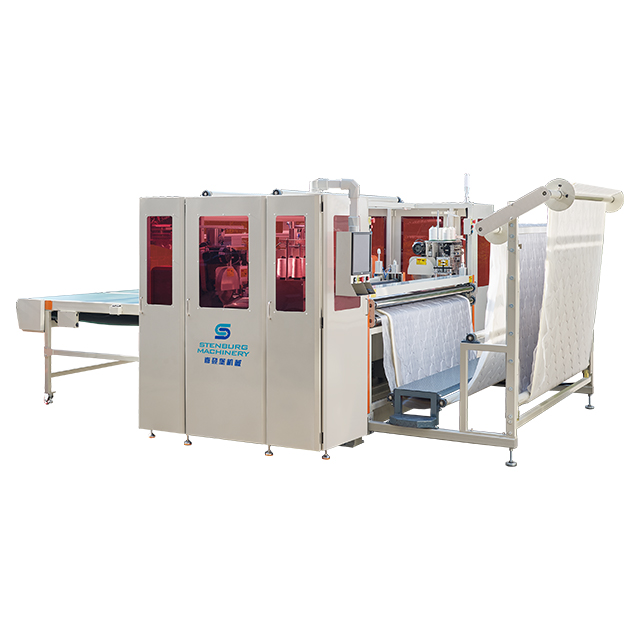

HY-FQ-2 Four Side Hemming And Cutting Machine

It is mainly used for cross-cutting, trimming and fourside seaming of quilted products such as high-grade mattresses, bedding, home decoration, etc. It is suitable for use withquilting machines, stacking machines, etc. Save labor
Availability:
Quantity:
sharethis sharing button
  • HY-FQ-2

  • STENBURG MACHINERY

7

HY-FQ-2 Four Side Hemming And Cutting Machine

Technical Characteristics

1.Various parameters are controlled by computer, which is accurate and fast

2.Automatic slicing,automatic edge locking, various sizes and specifications are easy to operate

3.The needle and cutter can be lifted,which is convenient for cloth loading and high efficiency

4.The length dimension are adjusted electrically by the conveyor belt, which is convenient

5.The width dimension are controlled by computer, which is convenient and accurate

6.It can be matched with a stacking machine to realize automatic stacking

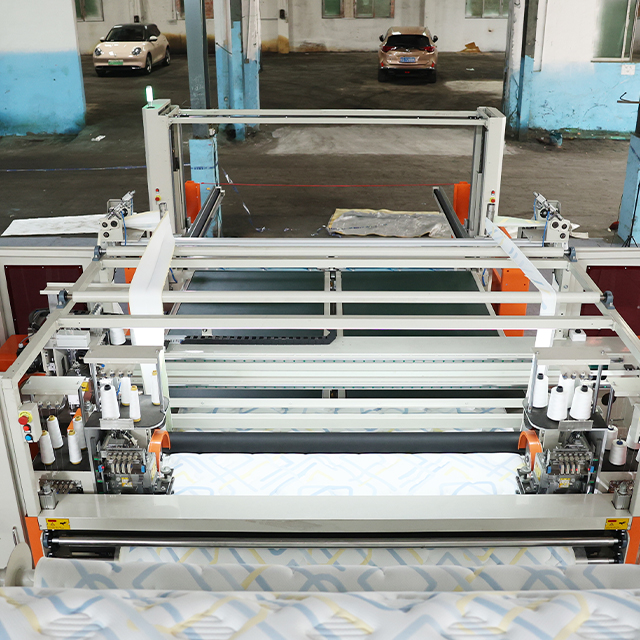

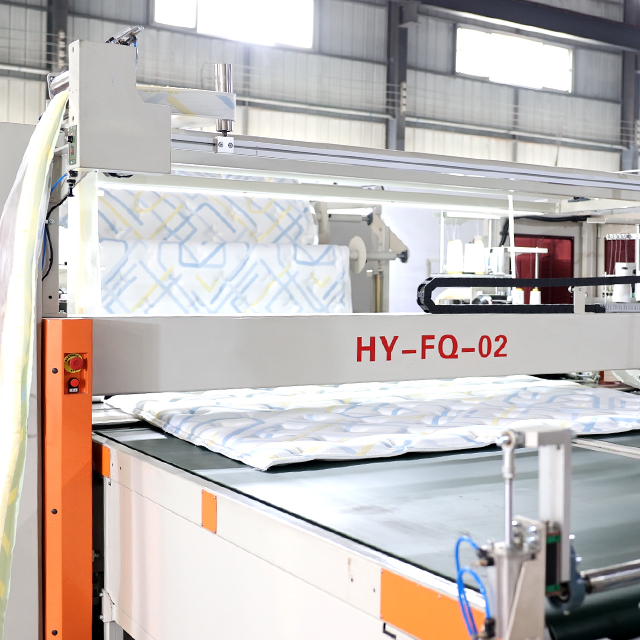

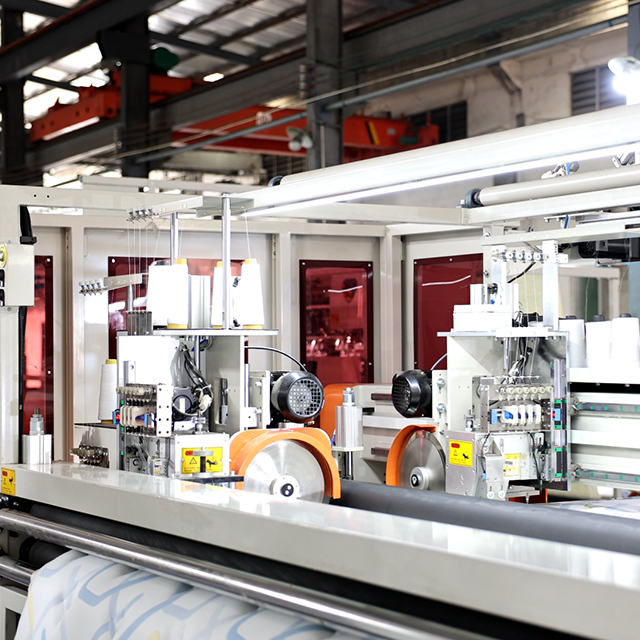

Detail Pictures

细节图

Effect Pictures

效果图

Technical Specifications

Model HY-FQ-2
( Edge trim ) The Max.X dimension 2450mm
( Edge trim ) The Min.X dimension 1450mm
( Cross cut ) The Max.Y dimension 2250mm
( Cross cut ) The Min.Y dimension 600mm
Thickness 5~80mm
Seam cutting speed 5~12 m/min(adjustable)
Stitch length 2~10mm
Power supply 380V/50HZ、220V/60HZ
Operating air preasure 0.4~0.8Mpa
Total power required 11KW
Machine size

L4500xW1700xH2000

Weight 3500KG
Installation dimension 5000x4500

( Including conveyor belt,buffer rack )
