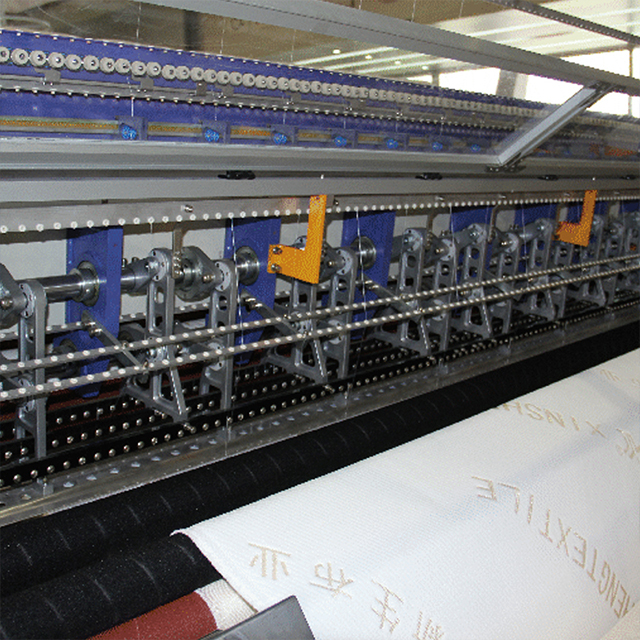

HY-W-JH Computerized Chain Stitch Multi Needle Quilting Machine (Thicker)

Basic model of Chain Stitch Multi-Functional Quilting Machine,It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast!

Quantity:
  • HY-W-JH
  • Stenburg Mattress Machinery

1

HY-W-JH Computerized Chain Stitch Multi Needle Quilting Machine (Thicker)

Products Description

It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast.

Technical Characteristics

Needle bar and press  plate are controlled by a double-swinging device with out cam avoiding  lubrication and dirtying of material;

Multi-span and  independent patterns(360°and 180°patterns  are available)

Automatic pause in the  case that the upper thread or the bottom thread breaks. Automatic  needle-lifting and CNC speed adjustment.

4. CE certification

5.No need to adjust the press plate's position when  the thickness of quilting materials varies.

6.Outstanding features such as high rigidity,high  running speed,low vibration and noise;

7.New edition of CNC control system,no need to  adjust the press plate' s position when the thickness of quilting material  varies;

8.CAD drawing method to ensure the precision of  pattern and facilitate the operation;

9.Strong functions of pattern-combining and  multi-span quilting to enable you to quilt different patterns in each row in  the mattresses of different sizes;

10.Fault detection function for ease of determining  the running state of the machine at any given time;

Technical Specification

Model HY-W-JH
Dimension  (L*W*H) 4800× 1600× 2000mm
Width  of  quilting 2450mm
Space  between     needle  rows 50.8, 76.2, 127(5" )     76.2, 76.2, 152.4(6" )
Space  between  needles 25.4mm
X-axis  movement  distance 410mm
Thickness  of  quilting ≤ 80mm (for     all  patterns)
Length  of  step 3-8
Speed  between  production 60-230m/Hour
Model  of  needle 24/180    23/160       22/140    21/130
Speed  of  main     shaft 200-900RPM
Power 7KW
Voltage 380V  /220V       50HZ/60HZ
Machine  weight 4500KG
