JS-2 Single Needle Long-arm Sewing Machine
You are here: Home » Mattress Sewing Machine » Mattress Long-Arm Reparing Machine » JS-2 Single Needle Long-arm Sewing Machine

JS-2 Single Needle Long-arm Sewing Machine

model: JS-2
product name: Single Needle Long-arm Sewing Machine
Application: Mattress
Brand Name: STENBURG MACHINERY
Place of Origin: Guangdong, China (Mainland)
Certificate: ISO9001: 2000
Minimum order quantity: 1 set
Price terms: FOB, C&F, CIF (optional)
Payment method: letter of credit wire transfer
Packaging details: film packaging/wooden box
Delivery time: 15~30 working days
Quantity:
  • JS-2
  • Stenburg Mattress Machinery

1

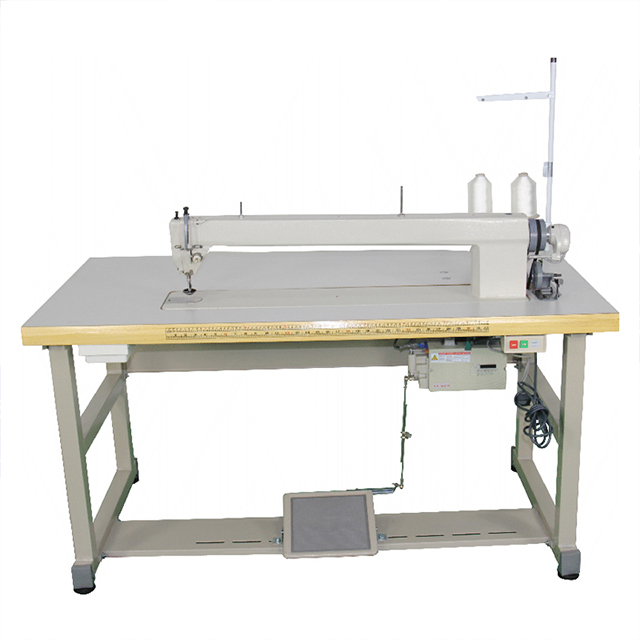

JS-2 Single Needle Long-arm Sewing Machine

Product Description

JS-2 Single Needle Long-arm Sewing Machine is the kind of single-needle, connecting level, lock stitch and mattress sewing machine. The upper and lower shafts of the machine are of integral structure, and the step less speed regulating motor is adopted to automatically position the needle. The new pressurized foot is equipped with a needle bar lifting device to make the thick fabric complement more convenient and beautiful.

Technical Characteristics

1.The upper and lower shafts are driven by bevel gear with stable performance.

2.It is also equipped with electric positioning system and 7.8mm height-lifting presser foot for thicker panel.

3.Combined with the computer control system, the speed control is convenient, the pressure protection, the light touch back seam, and other functions.

4.This sewing machine is suitable for sewing mattress panel, bedspread, sofa panel and tent.

Technical Specification

Model JS-2 JS-3
Arm Length 780mm 780mm
Sewing Speed  1500spm  1500spm
Sewing Thickness 40mm 70mm
Lifting Range of Presser Foot 20mm 25mm
Needle DPx5,15-18# DPx5,15-18#
Air pressure 0.5-0.8mpa 0.5-0.8mpa
Voltage 1 phase,220V.50HZ 1 phase,220V.50HZ
Motor Power 560W 560W
Machine Weight 168KG 168KG
