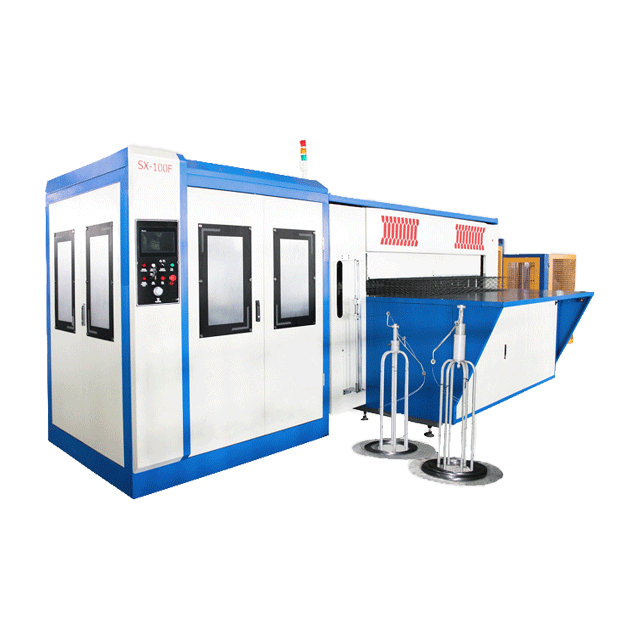

SX-100F Automatic LFK Spring Transfer Line
Product Description
The SX-100T automatic spring bed core production line is the latest development of our company. It is used to produce double cone spring bed cores. It can directly produce spring bed cores from steel wire at one time. It can independently complete spring winding, shaping, heat treatment, forward and reverse direction, arrangement and positioning, spring stringing and other functions, and directly produce non-knotted spring bed core from steel wire; the machine adopts bus servo system, and the control method is more digital and intelligent .
The advantages are as follows:
1. The spring bed cores arranged in forward and reverse directions can solve all the problems of spiral springs tilting under pressure.
2. Can be customized according to different non-knotted spring shapes.
Technical Specification
| Model | SX-100F |
Spring Type | Open coil |
| Capacity | 90 pcs/min |
| Max Width | 2M |
| Spring Height | 100-170MM |
| Spring End Ring | Φ80mm -Φ87mm , Φ65mm, Φ75mm |
| Spring Steel wire gauge | Φ1.9mm-Φ2.2mm |
| Helical Wire Gauge | Φ1.3mm |
| Convolutions | 4-6Turns |
| Air consumption | 3M3/H,6-8MPA |
| Main Drive Power | 3KW |
| Weight | Net Approx: 990KG |
| Power Requirement | 380V，3 Phase，50-60HZ(Option：415V-480V，220V) |
