This product is no longer available

WB-1 Economy Type Popular Mattress Tape Edge Machine

WB-1 Economy Type Popular Mattress Tape Edge Machine

Mattress Tape Edge Machine，Equipped with imported or China-made sewing head according to customers requirement. Hand-controlled lifting table, hand-controlled titling of sewing head. Hand-controlled speed for moving of carriage and sewing, hand-controlled slowdown at corners. Straight, enen and trim seam. Low noise, low vibration, stable performance！

Model:
WB-1
Brand:
Stenburg Mattress Machinery


Availability:

Product Description

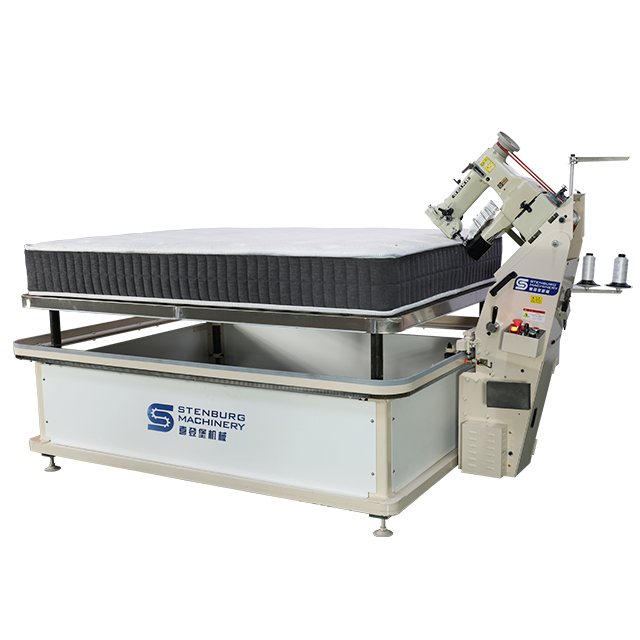

WB-1 Mattress Tape Edge Machine

Technical Characteristics

1.Equipped with imported or China-made sewing head according to customers requirement.

2.Hand-controlled lifting table, hand-controlled titling of sewing head.

3.Hand-controlled speed for moving of carriage and sewing, hand-controlled slowdown at corners.

4.Straight, enen and trim seam.

5.Low noise, low vibration, stable performance.

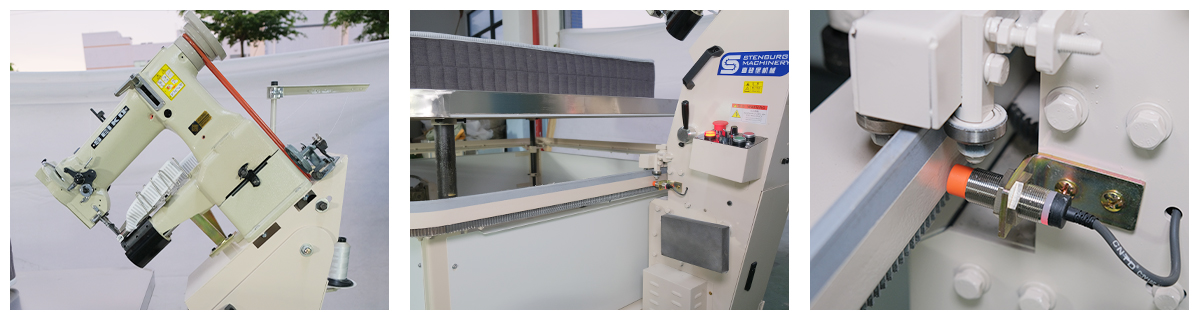

Detail Pictures

Effect Pictures

Technical Specifications

model	WB-1
Capacity	15units/h
Thickness of Mattress	40-300mm
Table Lifting Range	260mm
Max Tilting Angle	40
Table Size	1500×1950mm
Overall Dimension	2130×2010×1565mm
Total Power	400W
Power Supply	Single-Phase, 220V/240V, 50/60Hz
Total Weight	465Kg
