XD-240ZM CNC Fabric Digital Cutting Machine

  • XD-240ZM

  • Stenburg Mattress Machinery

Availability:

2

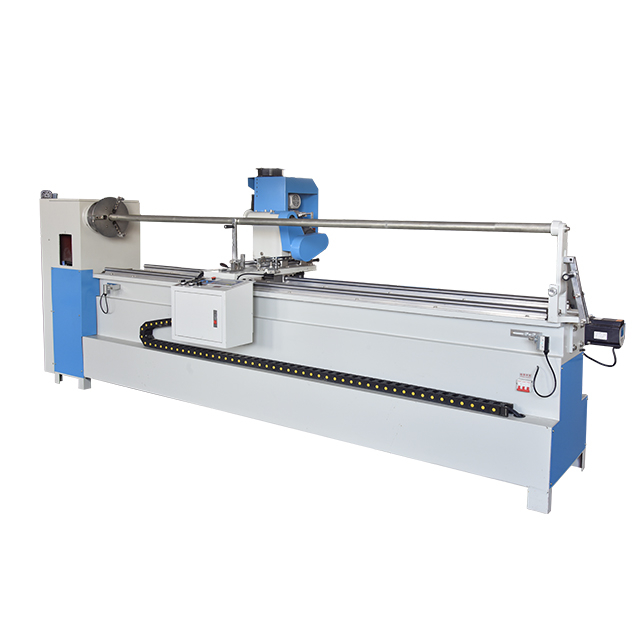

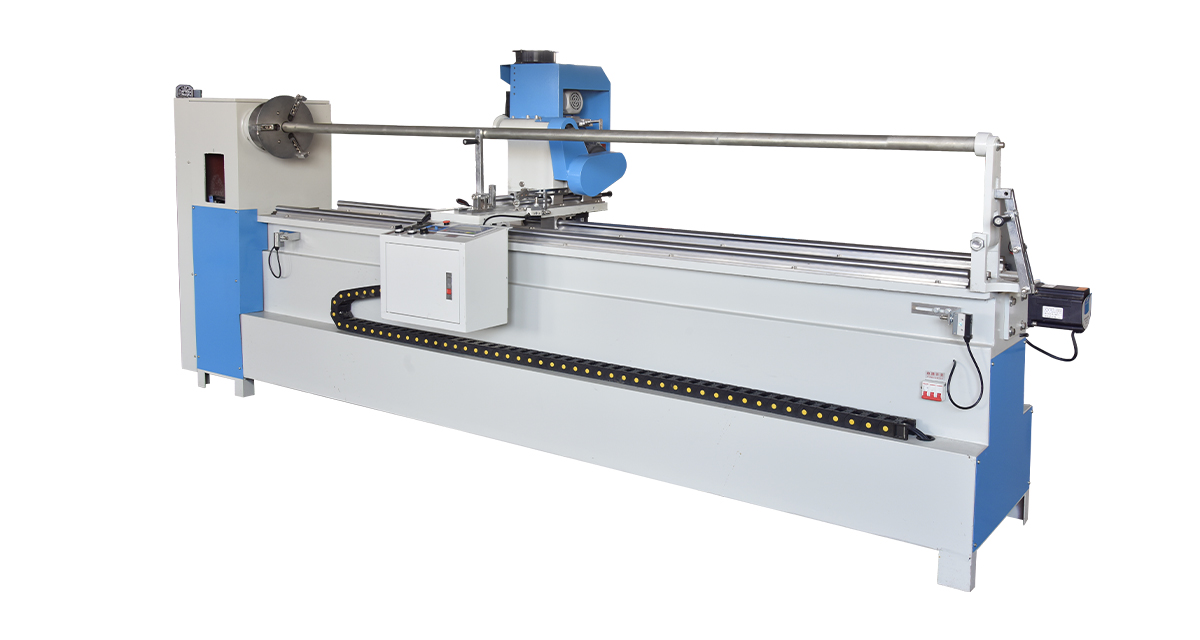

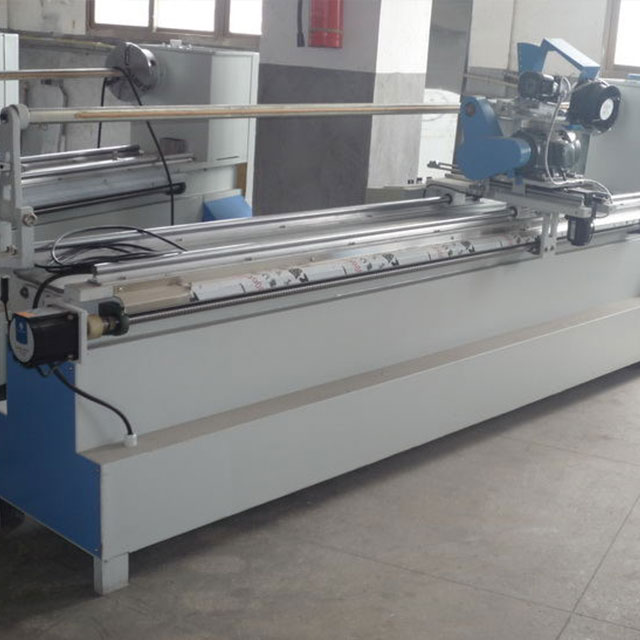

XD-240ZM  CNC Fabric Digital Cutting Machine

Product Description

This Machine is used to cut non-woven  fabrics.

Technical characteristics

1. Principal axis and circular knife use  step less speed regulation system, it enable to change rotating speed and  control positive / negative switching.

2. Equipped with the automatic system, can be sharpened without move blades,  with dust cleaning equipment, keep fabric and track clean.

3. Using imported high precision system to control cutting width, with precision  ball screw and slide, control width of 0.1mm, to achieve high precision  cutting.

4. Using imported screw ball and slide track, parallel to cut, using step less  speed regulation ac motor, steadily move without abrasion to get the best  quality.

5. Using LCD screen, can be directly input kinds of cutting width, and amount,  Equipped with the conversion functions of manual or automatic

6. Using Rapidly feeding design, you can operate it easily.

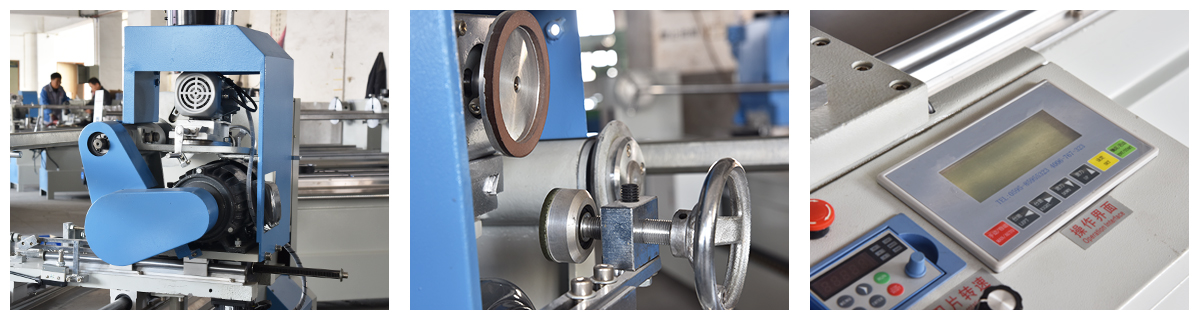

Detail Pictures

Detail Pictures

Technical  Specification

model XD-240ZM
Cloth width 2.4m
Rotating speed    of cloth roll 0-800rpm/min
Diameter of    cloth axis 37mm
Power 0.75kw
Blade power 1.5kw
Minimum width    of cut strap 2mm
Voltage 380v/220v    optional
