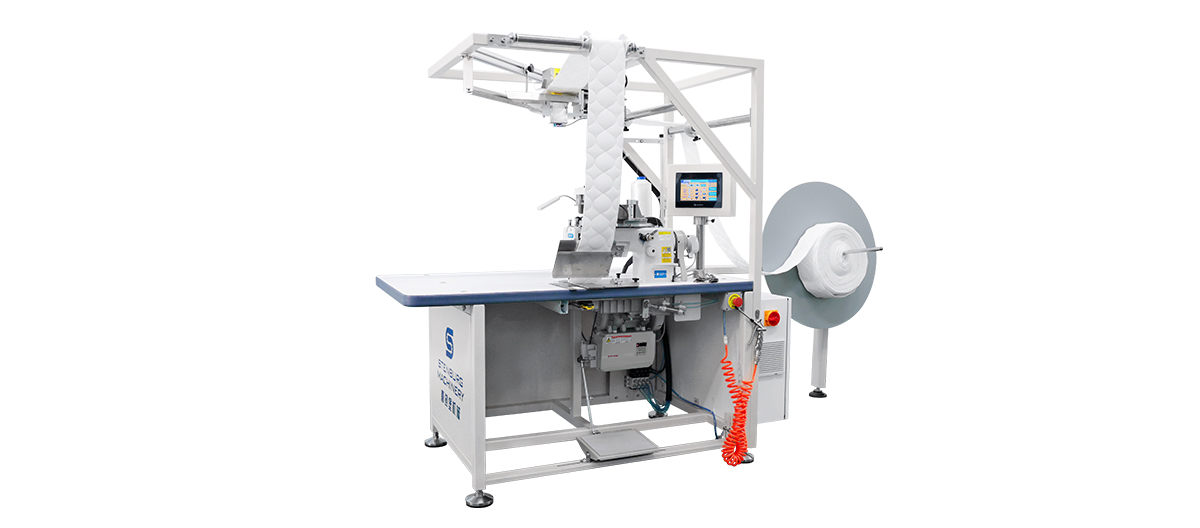

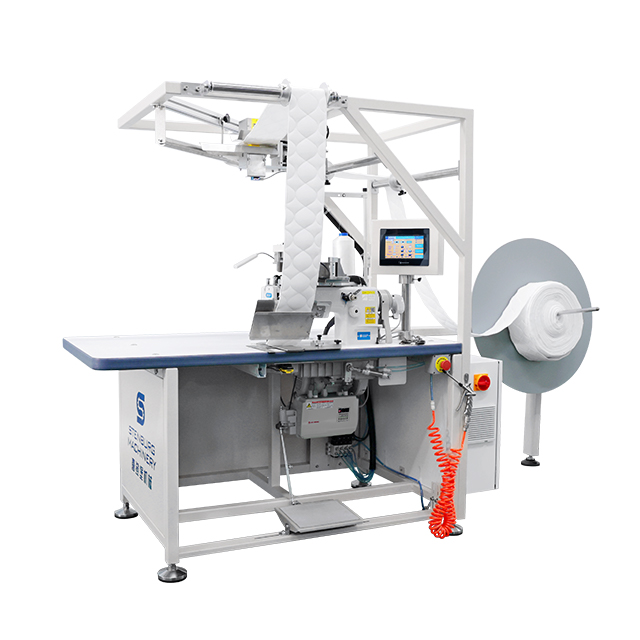

XDB-300 Automatic Pillow top Euro top Ruffler Sewing Machine For Mattress
Technical Characteristics
The machine is used to process the comfort layer of the double-layer mattress, replacing the old multi-manual patchwork process. This equipment sews the entire non-woven fabric and the double-layer fabric, and at the same time, when it reaches each corner, it will automatically wrinkle to form a corner. It saves
complicated multi-worker operations, and at the same time improves the output quality, making the whole mattress to be upgraded, beautiful, and has unique value. It is a very practical machine and equipment. The machine is driven by Japanese Yaskawa servo motor and Mitsubishi inverter as well as French Schneider electrical components, Taiwan Jinlun shuttleless chain sewing machine head, American Banner sensor control, Mitsubishi PLC, WEINVIEW display screen, the machine has excellent quality and stability.

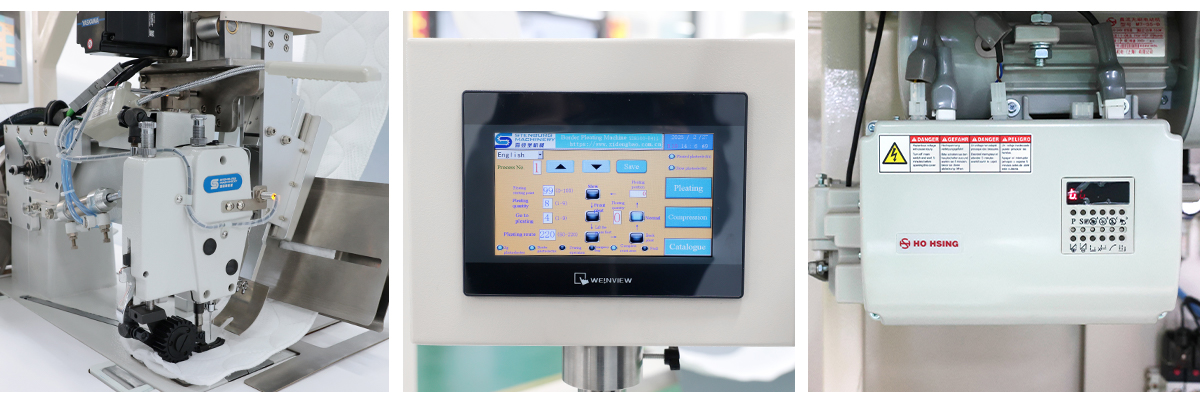

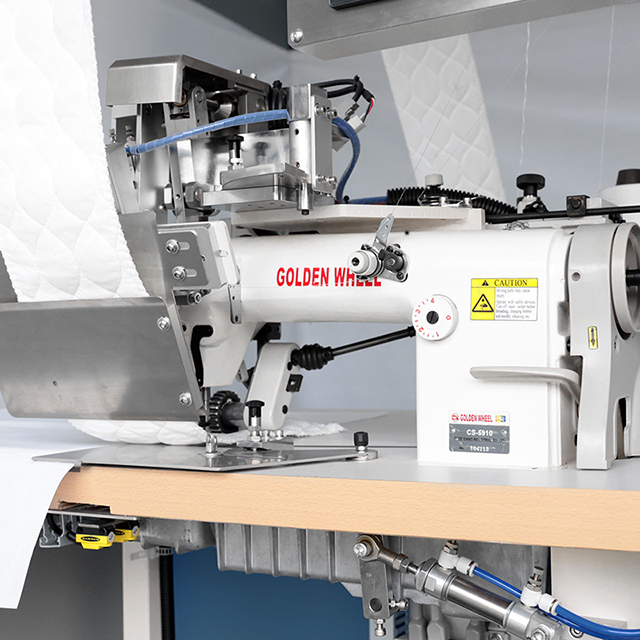

Detail Pictures
Effect Pictures
Technical Specification
XDB-300
Sewing head
JUKI481 / CS5910
Sewing speed
1pcs/2min
Bordar width
Standard :80-200mm
Stitch :120-300mm
Stitch
2-7mm
Fabric thickness
2-12mm
Maximum speed
2800RPM
Ruffle quantity
3-8 selections for a single corner
Air Pressure
0.6-0.7MPa
Total Power
750W
Power supply
1 phase 220V 50HZ
Weight
600kg
