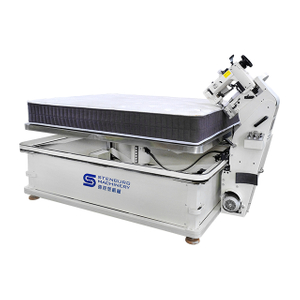

XDB-3B High Speed Mattress Faux Tape Edge Sewing Machine
Technical Characteristics
The machine is specially customized for double-layer mattresses. The large and small sides are bound by the tape binding machine head. It only takes one minute to complete the whole process of tape binding. Edge wrapping belt, automatic conveyor belt, user-friendly design, simple operation without learning, use directly.
1. Adopt Japan's Mitsubishi inverter and PLC
2. Sewing drive adopts Taiwan He Jiaxin
3. French Schneider relays and electrical components
4. The frequency conversion controller and the pneumatic components adopt Taiwan Delta, which makes the whole machine stable and durable
DetailEffect PicturesPictures
Effect Pictures
Technical Specification
XDB-3B
Sewing head
Singer 300U
Material thickness
5-40mm
Bordar width
50-500mm
Band width
30-50mm
Speed
1600-2800RPM
Power supply
1 phase 220V 50HZ
Air Pressure
0.6MPa
Total Power
1.5kw
Output
1psc/60-70s
