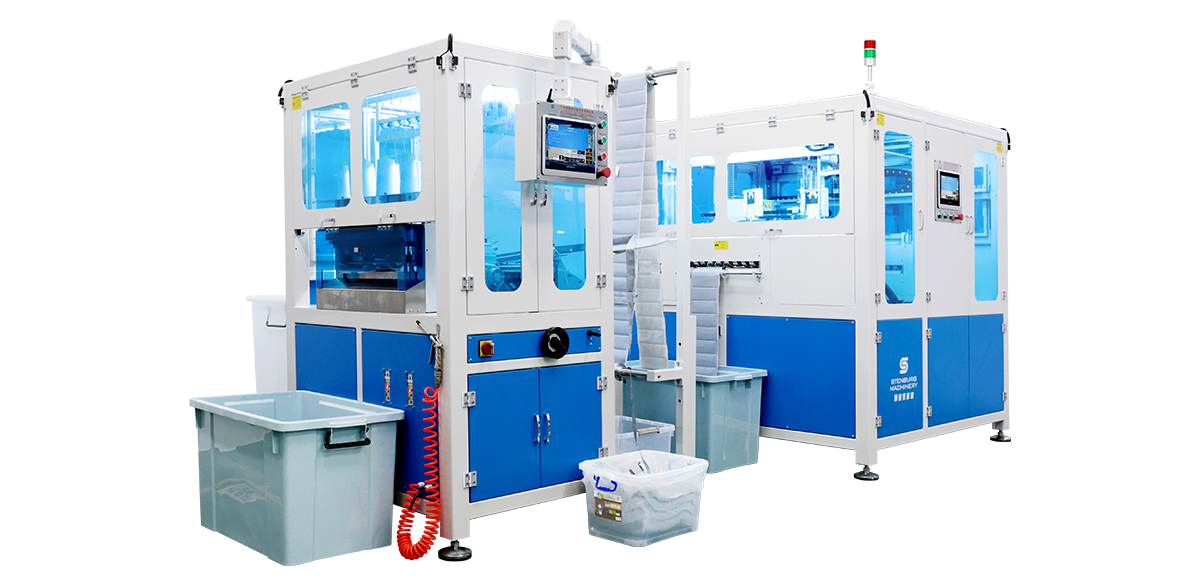

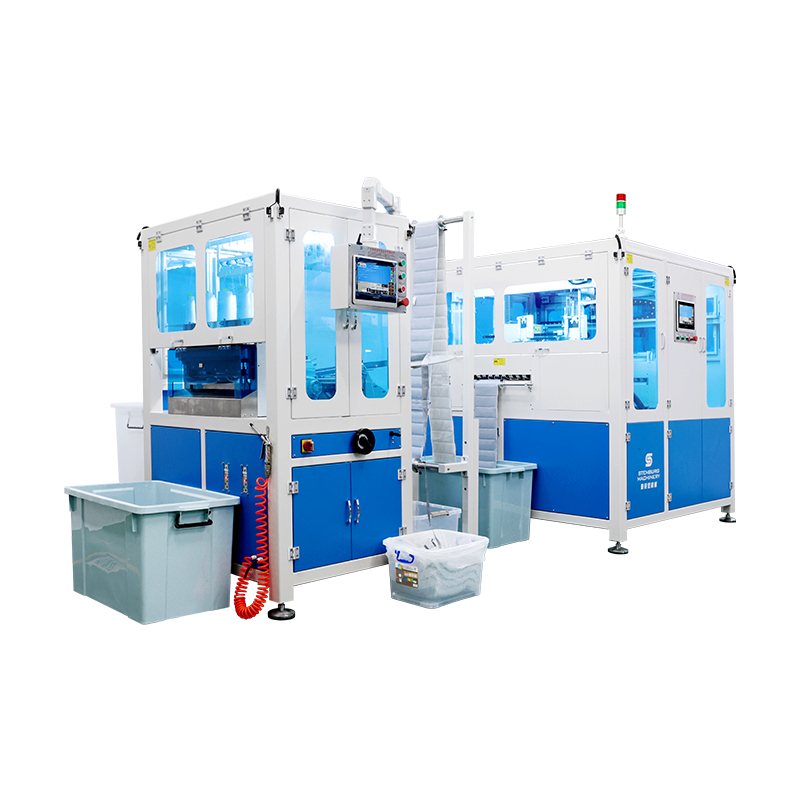

XDB-BS07-2B Automatic Mattress Borders Longitudinal Handles Production Line

The machine is used for processing mattress borders, combining 7 processes: 1. Automatic sewing vertical handles, 2. Automatic sewing label, 3. Inlay binding, 4. Automatic double-sided overlocking, 5. Automatic marking, 6. Automatic measurement length, 7. Automatic cutting.
  • XDB-BS07-2B

  • Stenburg Mattress Machinery

Availability:
Quantity:

XDB-BS07-2B Automatic Mattress Borders Longitudinal Handles Production Line

Technical Characteristics

The machine is used for processing mattress borders, combining 7 processes: 1. Automatic sewing vertical handles, 2. Automatic sewing label, 3. Inlay binding, 4. Automatic double-sided overlocking, 5. Automatic marking, 6. Automatic measurement length, 7. Automatic cutting

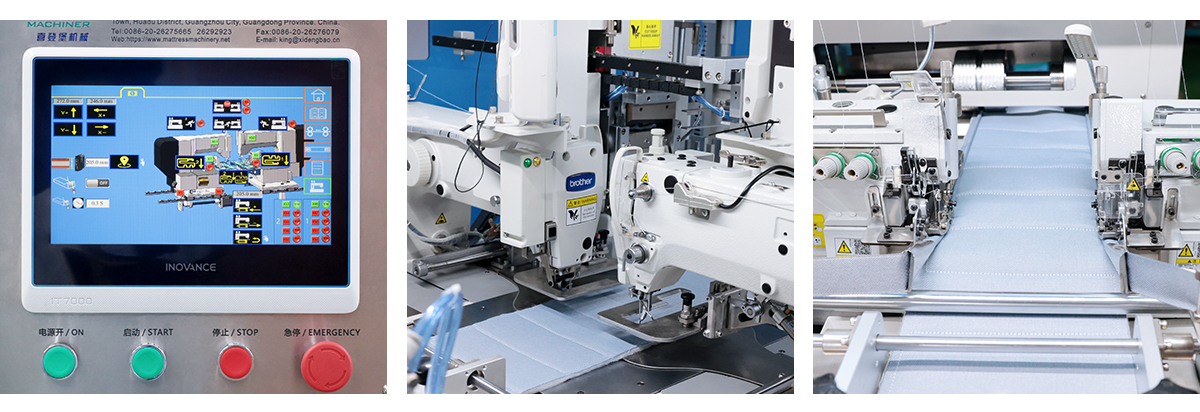

Detail Pictures

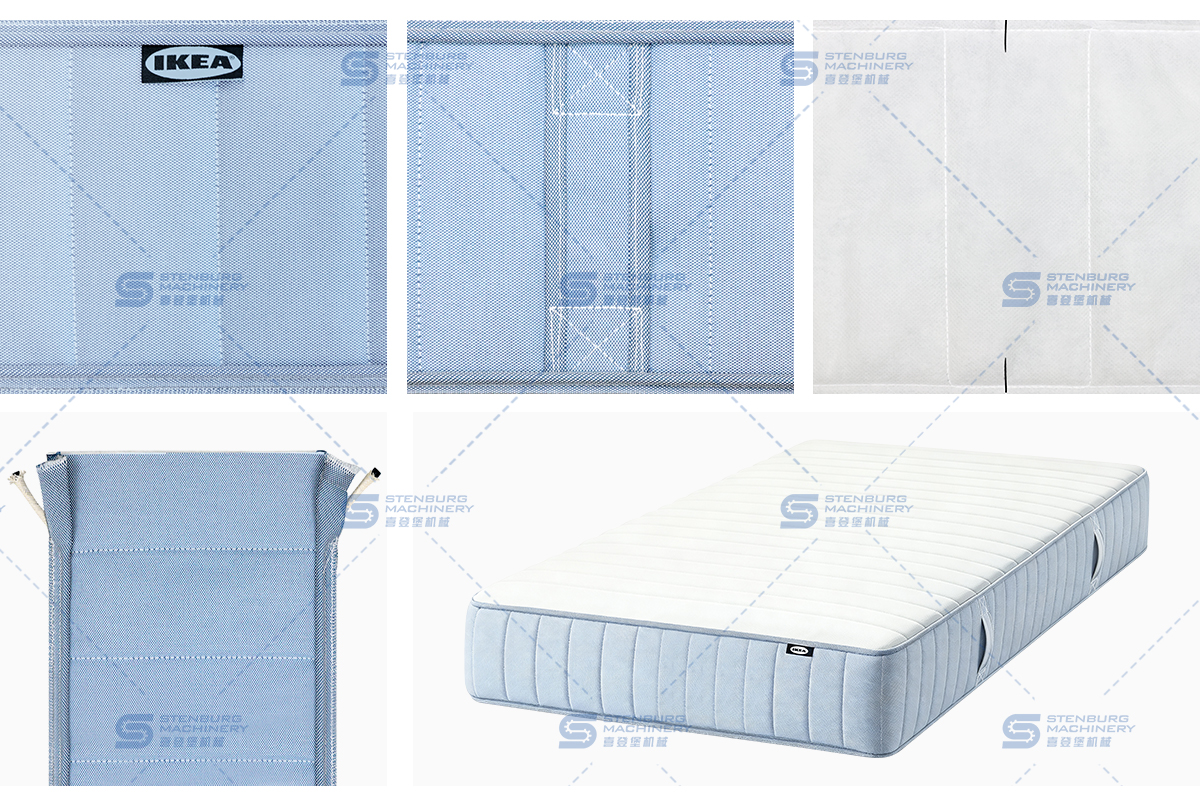

Effect Pictures


Technical Specification

Production efficiency

60-100 s/pcs

Sewing speed

1500–2200 RPM

Border width

170-350mm

Border thickness

5-20mm

Handle width

50mm-70mm Customizable

Handle thickness

2-10mm

Label width

40-140mm Customizable

Label length

30-200mm Customizable

Stitch

2-6mm

Air pressure

0.7MPa

Voltage

1 Phase 220V 50-60HZ 7KW

Weight

2300Kg
