You are here: Home » Mattress Sewing Machine » Mattress Handle Sewing Machine » XDB-HS2A Mattress Handle Strap Sewing/Cutting Machine

Product Category

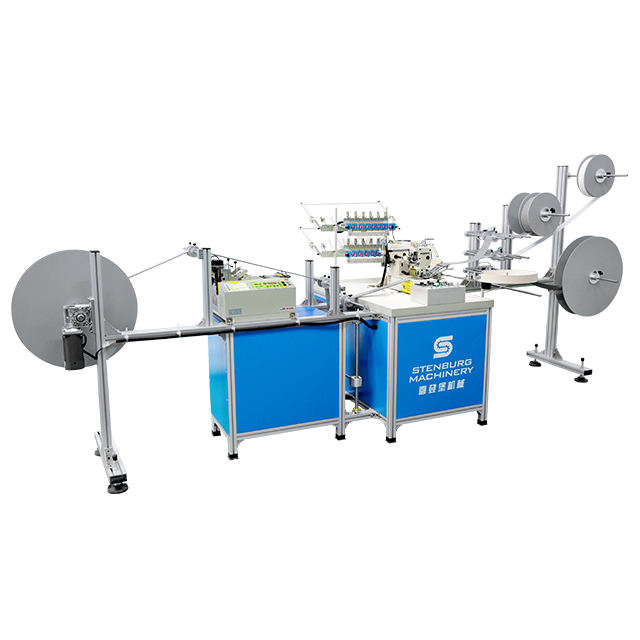

XDB-HS2A Mattress Handle Strap Sewing/Cutting Machine

model: XDB-HS2A product name: Mattress Handle Strap Sewing/Cutting Machine Application: Mattress Brand Name: STENBURG MACHINERY Place of Origin: Guangdong, China (Mainland) Certificate: ISO9001: 2000 Minimum order quantity: 1 set Price terms: FOB, C&F, CIF (optional) Payment method: letter of credit wire transfer Packaging details: film packaging/wooden box Delivery time: 15~30 working days
  • XDB-HS2A

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

XDB-HS2A Mattress Handle Strap Sewing/Cutting Machine

Technical Characteristics

1.Fully automatic sewing and hemming

2.Automatic lubrication system

3.Auto stops when raw material depleted

4.Adopt Japanese Kansai Kansai head, French Schneider electric components

5.Mattress pull strap size, cut, count (adjustable)

6.Handle width and fixture can be customized according to customer requirements

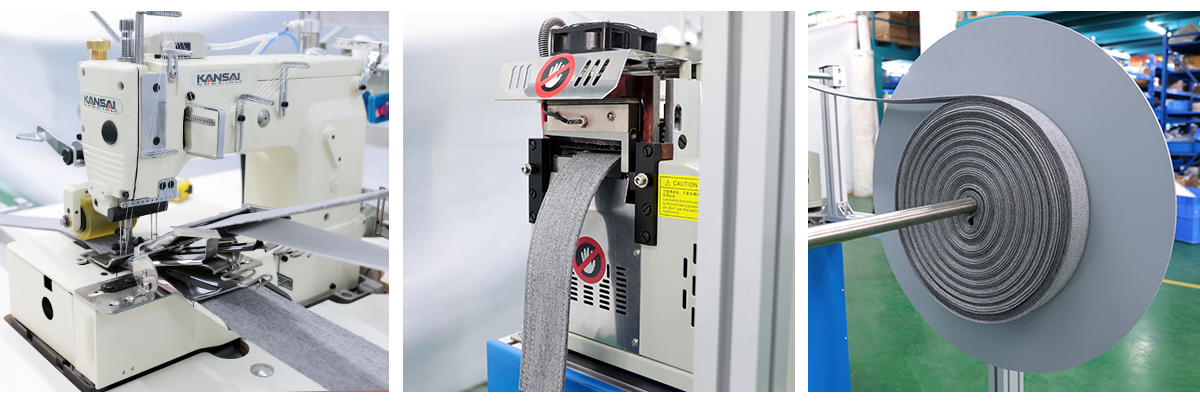

Detail Pictures

HS-2A-细节图

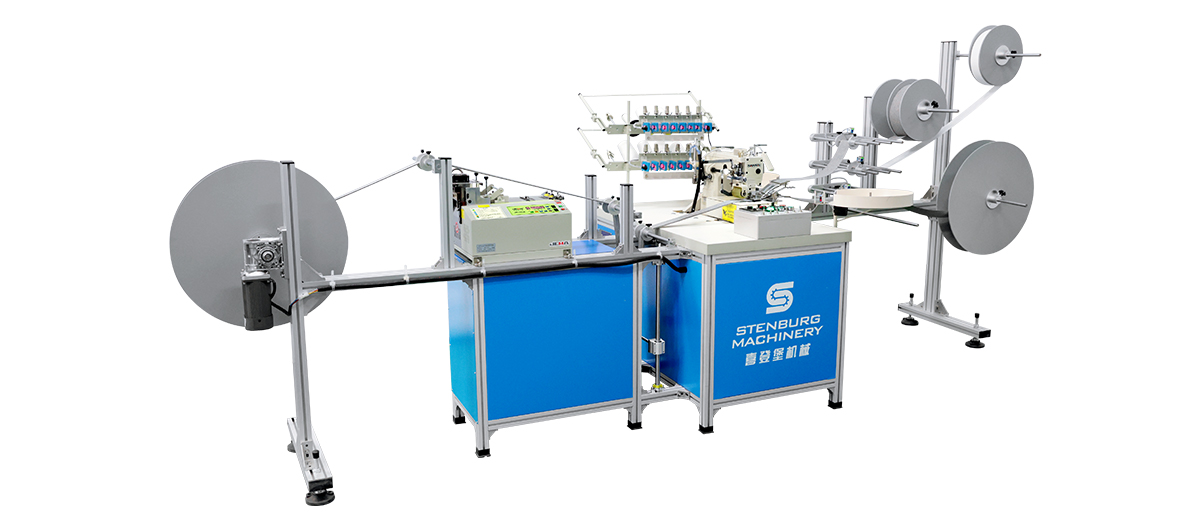

Effect Pictures

HS-2A-效果图

Technical Specification

model XDB-HS2A
Sewing speed

4-5m/min

Sewing range

57.15mm
Handle strap width <75mm
Sewing thickness <10mm
Pitch 6.35mm
Rotating speed 1000-1800RPM
Stitch 2-5mm
Power supply 1 phase 220V 60HZ
Power 0.98KW
Air pressure 0.6-0.7MPa
Weight 300kg
