XDB-JZ-2 Automatic Wire Straightener
Technical Characteristics
This machine is specially used for processing mattress frame steel wire. After the equipment straightens the steel wire, it will be automatically hydraulically cut according to the length and size.
1. The load capacity of the wire rack can bear 1000KG.
2. Cross wire wheel protection device

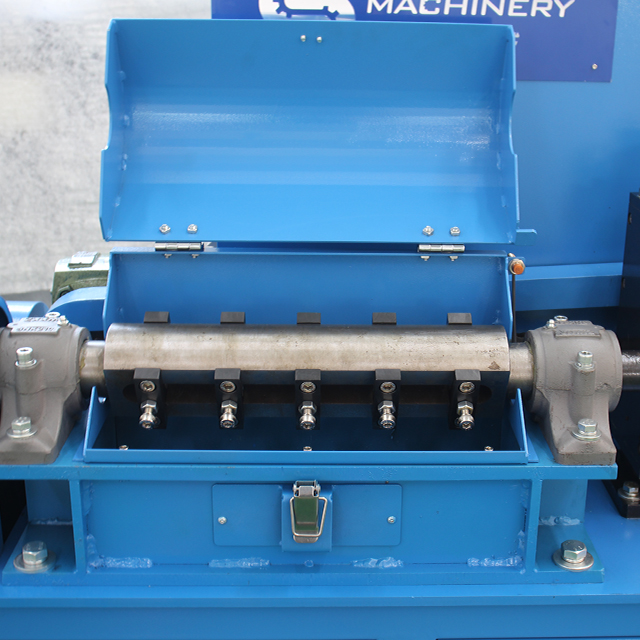

3. The straightening mechanism has a protective cover, and the closed protective cover can work safely
4. The wire feeding wheel and the straightening mechanism work together
5. The standard track mechanism is 9 meters 5, and the intelligent opening and closing work can prevent the steel wire from falling.
6. The wire straightening speed is adjustable. Set the straightening speed in the display
Effect Pictures
Technical Specification
Sewing head | Φ4.0-4.4mm/Φ4.5-5.0mm(Need to customize) |
Out put | 30 m / minute |
Cutting Length | 1000-8000mm |
Main Motor | 3*AC380V/4KW/50-60 Hz |
Hydraulic System | 3*AC380V/2.2KW/50-60 Hz /8-10MPa/40# Hydraulic oil |
Overall Dimension | 2100×800×1400mm(Nose part) |
Weight | 1000KG |
