This machine is mainly used for the bending and forming of frame frames such as mattresses and bed nets. processing is the ideal equipment for modern mattress manufacturers.
1. It can be bent into four corners in turn
2. The size of the curved frame can be adjusted, which is suitable for the needs of various bed net frames.
3. The diameter of the arc seat can be customized according to the special requirements of customers.
4. It is suitable for bending and forming of the edge of Φ3-Φ5 bed net.
5. The structure is simple, the operation is convenient, the sizing is accurate, and the work efficiency is high.
6. Moving wheel: The machine has only one fixed, and the remaining three are equipped with moving wheels, which are more convenient to assemble and move to adjust the position.
Detail PicturesEffect Pictures
Technical Specification
Work efficiency
500Pcs/h
Processing wire diameter
( 3-5 ) mm
Bed net frame length
1800-2300mm
Bed net frame width
800-1800mm
Max. working pressure
1.0Mpa
Overall Dimension
L6500×W2700×H820mm
Weight
687KG

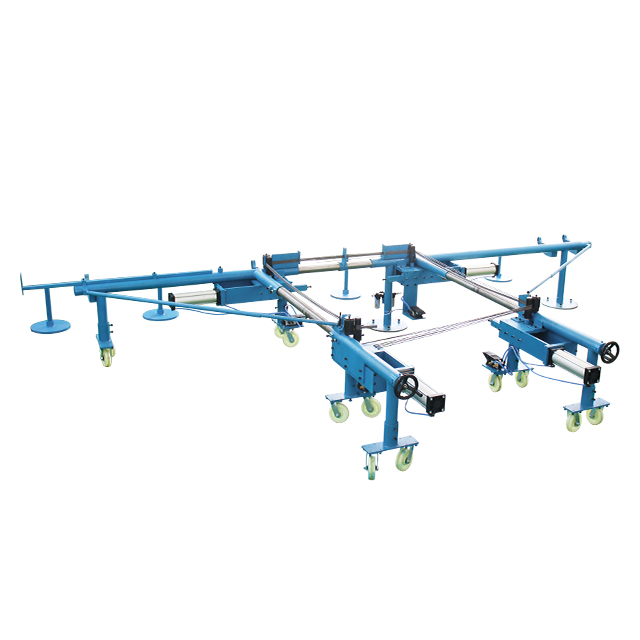

XDB-ZW-4 Pneumatic Frame Bending Machine
Technical Characteristics
This machine is mainly used for the bending and forming of frame frames such as mattresses and bed nets. processing is the ideal equipment for modern mattress manufacturers.
1. It can be bent into four corners in turn
2. The size of the curved frame can be adjusted, which is suitable for the needs of various bed net frames.
3. The diameter of the arc seat can be customized according to the special requirements of customers.
4. It is suitable for bending and forming of the edge of Φ3-Φ5 bed net.
5. The structure is simple, the operation is convenient, the sizing is accurate, and the work efficiency is high.
6. Moving wheel: The machine has only one fixed, and the remaining three are equipped with moving wheels, which are more convenient to assemble and move to adjust the position.
Effect Pictures
