You are here: Home » Mattress Sewing Machine » Mattress Border Vertical Stitch Machine » CC-1A Mattress Border Vertical Stitch Machine

Product Category

CC-1A Mattress Border Vertical Stitch Machine

model: CC-1A product name: Mattress Border Vertical Stitch Machine Application: Mattress Brand Name: STENBURG MACHINERY Place of Origin: Guangdong, China (Mainland) Certificate: ISO9001: 2000 Minimum order quantity: 1 set Price terms: FOB, C&F, CIF (optional) Payment method: letter of credit wire transfer Packaging details: film packaging/wooden box Delivery time: 15~30 working days
  • CC-1A

  • Stenburg Mattress Machinery

Availability:
Quantity:

2

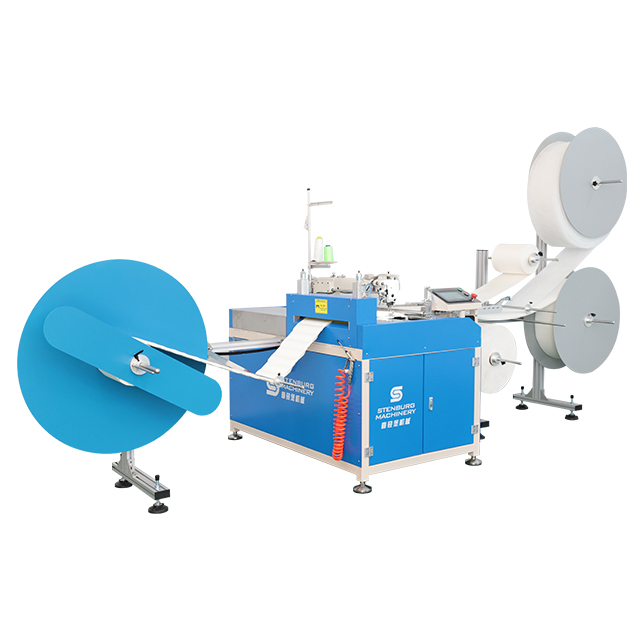

CC-1A Mattress Border Vertical Stitch Machine

Product Description

Mattress border vertical stitching machine has two sewing patterns: rectangular and triangle. It is a optional mattress border sewing machine for mattress manufacturers to beautify the mattress design.

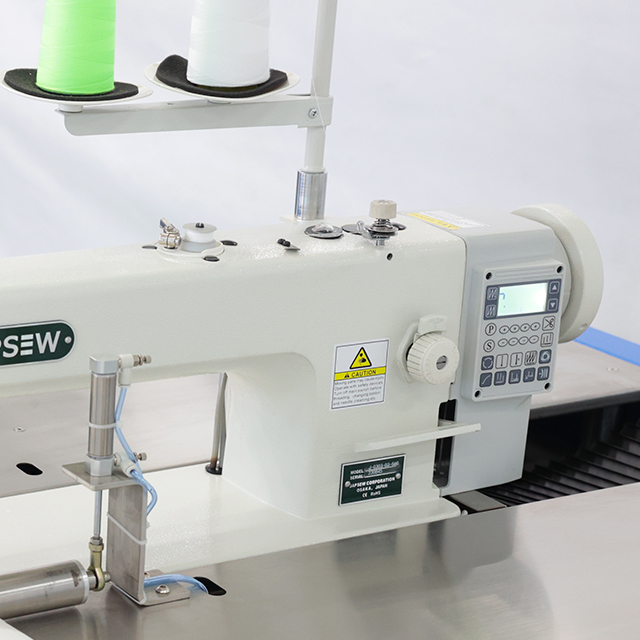

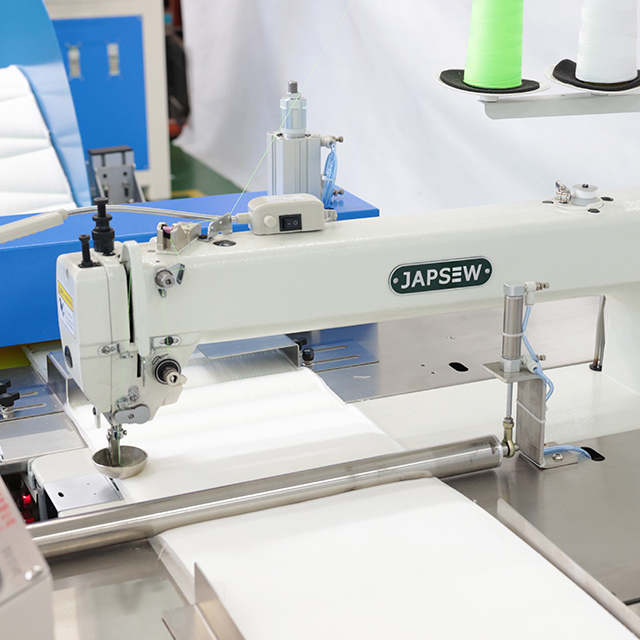

Detail Pictures

Detail

Effect Pictures

effect

Technical Characteristics

1. 2 programmable patterns;

2. Head moves to ensure accurate seam

3. Each pattern can have variations in seam margin and pattern width;

4.Border widths up to 400mm;

5.Auto stop for material depletion;

6.Automatic roll device

Technical Specifications

model CC-1A
Sewing speed

2.5-3.5m/min(depending on the pattern and  width of Border

Foam thicknes

<25cm

Fabric width <45cm
Non-woven fabric thickness

40-100mm

Voltage   1 phase,220V,50Hz
Total power ≤850KW
Weight 550kg
