You are here: Home » Products » Mattress Spring Machine » Superlastic Spring Machine » LSTS-01A Fully Automatic DIGITAL Superlastic Spring Coiling Machine

Product Category

LSTS-01A Fully Automatic DIGITAL Superlastic Spring Coiling Machine

This unit is a special equipment for manufacturing various springs for upholstered furniture. It has high degree of automation,strong reliability
and wide applicability (applicable to ordinary hot and cold steel wires) and long service life (the main wear parts of the unit are mostly made of
alloy
  • LSTS-01A

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

LSTS-01A Fully Automatic DIGITAL Superlastic Spring Coiling Machine

Product Description

1. This unit is a special equipment for manufacturing various springs for upholstered furniture. It has high degree of automation,strong reliability and wide applicability (applicable to ordinary hot and cold steel wires) and long service life (the main wear parts of the unit are mostly made of alloy)

2.This machine has 2 modes to choose from, including mechanical structure and digital coiling head structure. And you can also choose additional heat treatment process requirements.

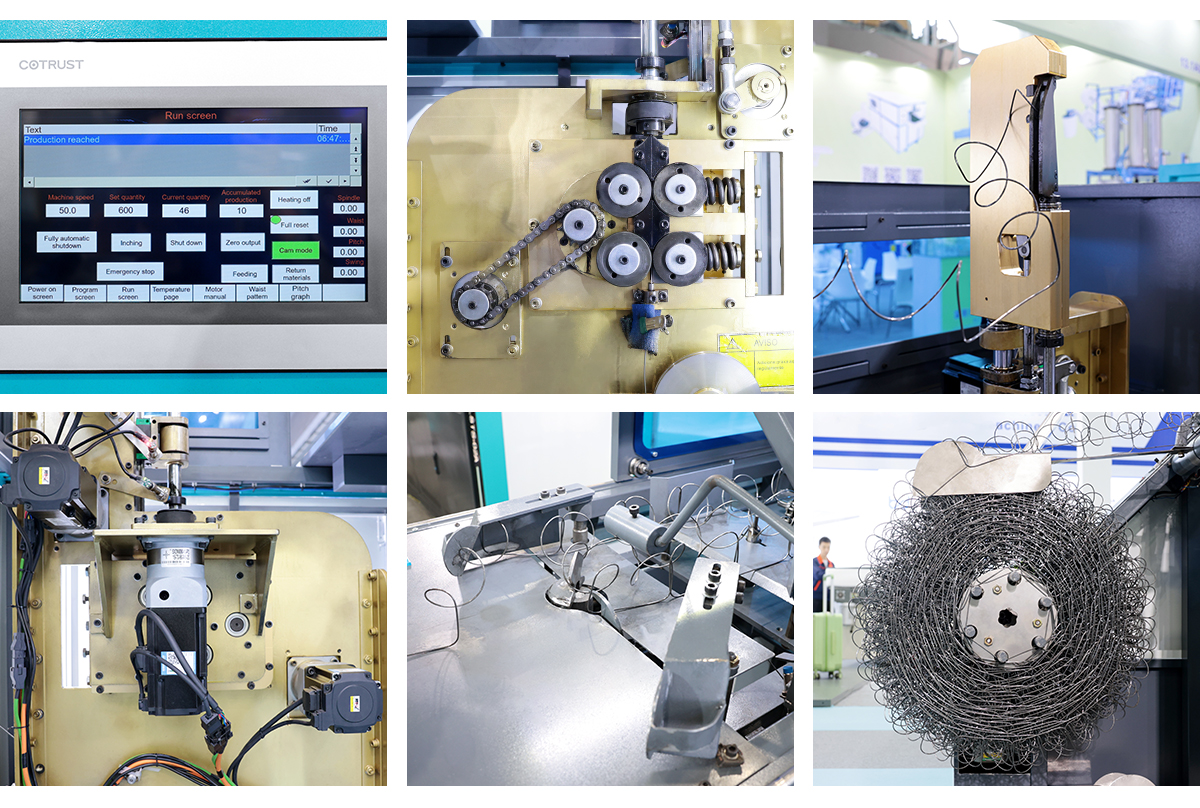

Detail Pictures

LSTS-01A Detail

Effect Pictures

LSTS-01 Aeffect

Technical Specification

Model LSTS-01A
Applicable wire diameter 1.7mm-2.2mm
Height

80-200mm customizable

Outer diameter of end ring 53X104MM(85type)
Spring coils 4 Turn
Spring waist gauge 48mm(85type) customizable
Bending radius R15MM Bending customization
Output 48 pcs/min continuous
Dimensions L8300*W1180*H1977mm
weight 2300KG
