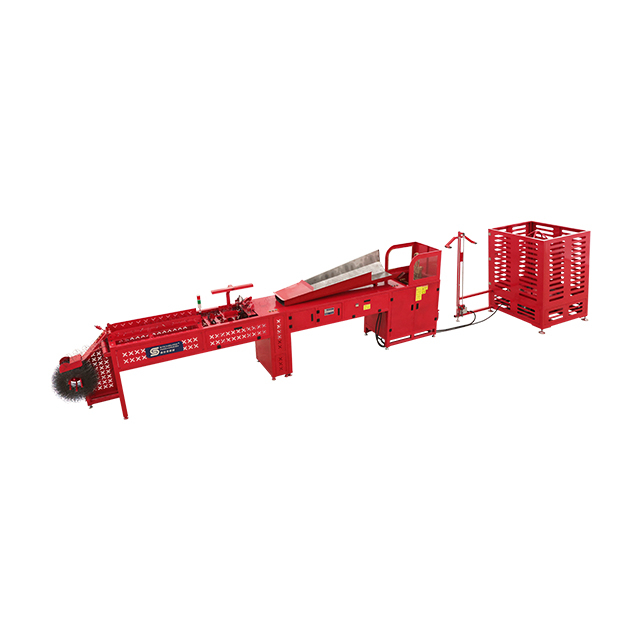

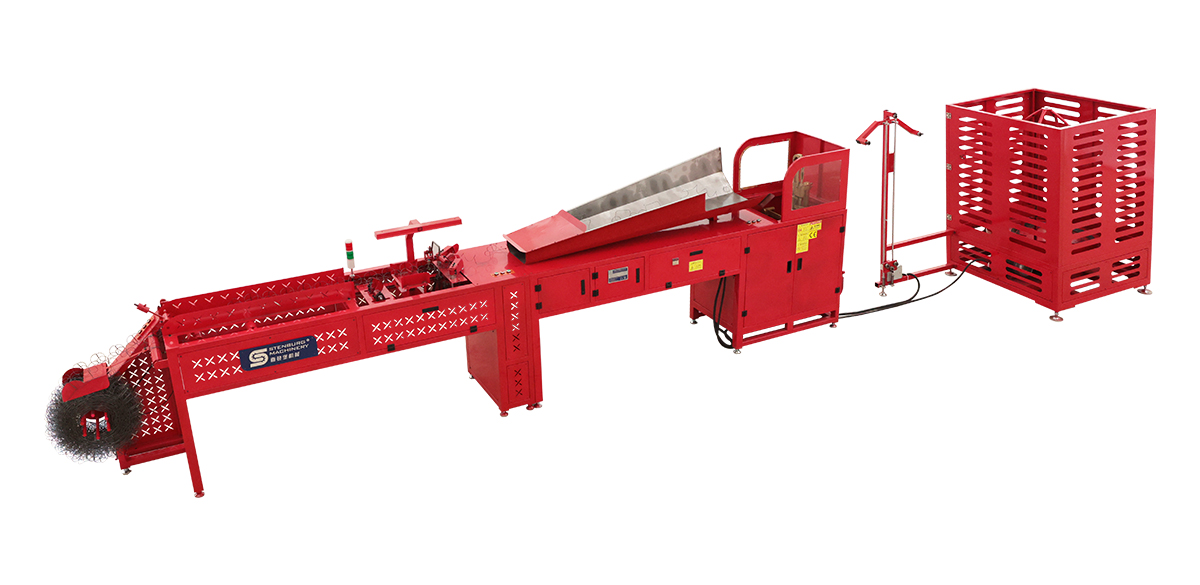

LSTS-01 Superlastic Spring Coiling Machine
Product Description
Superlastic spring is done by a continuous spring steel,so it is also called the" continuous spring". Superlastic spring coiling machine is used to produce the superlastic spring out of the spring steel wire.The superlastic spring size can be adjusted and meet the market requirement according to your requirement.
State-of-the-art processes utilize servo control coil formation.
Thanks to the coilers' innovative design, maintenance of the system and costly parts usage is reduced to an absolute minimum.No
specialist operators are required-previously a major issue with spring unit manufacturing.

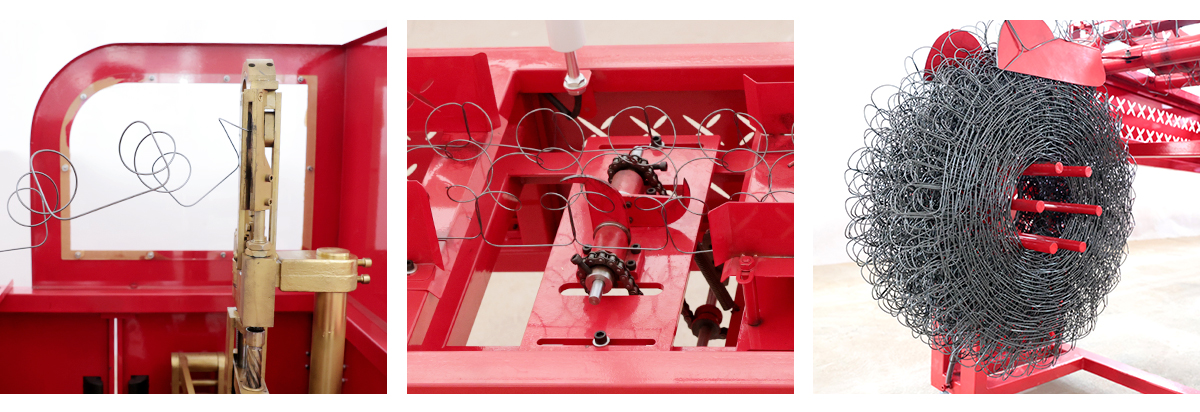

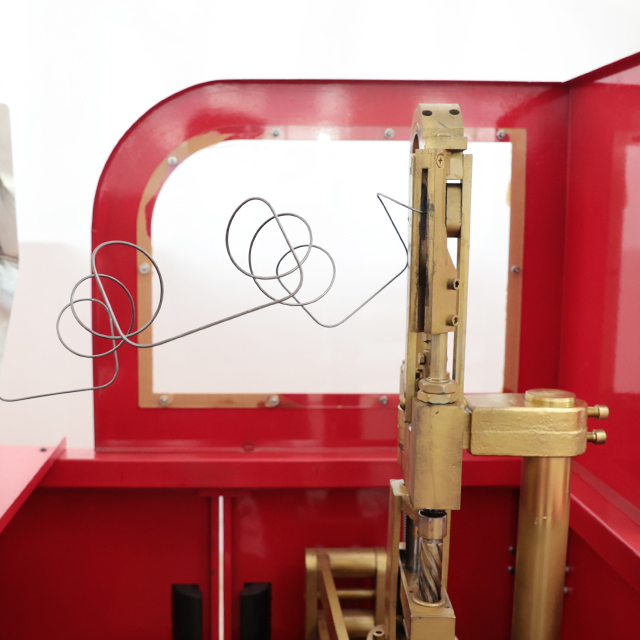

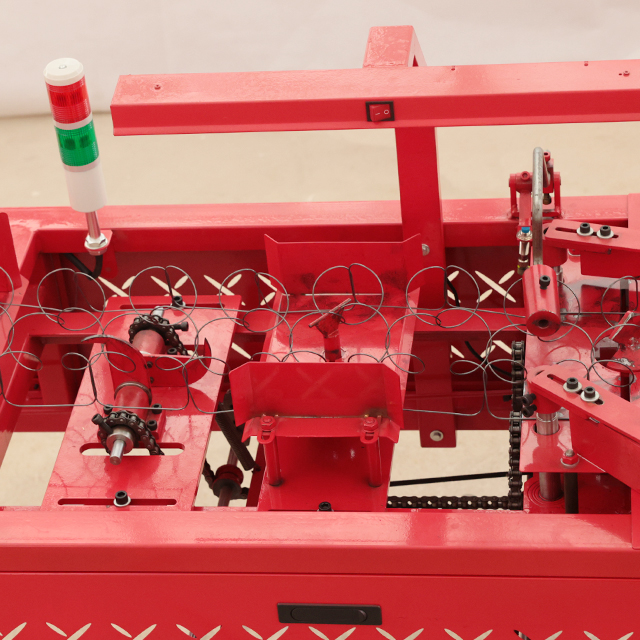

Detail Pictures

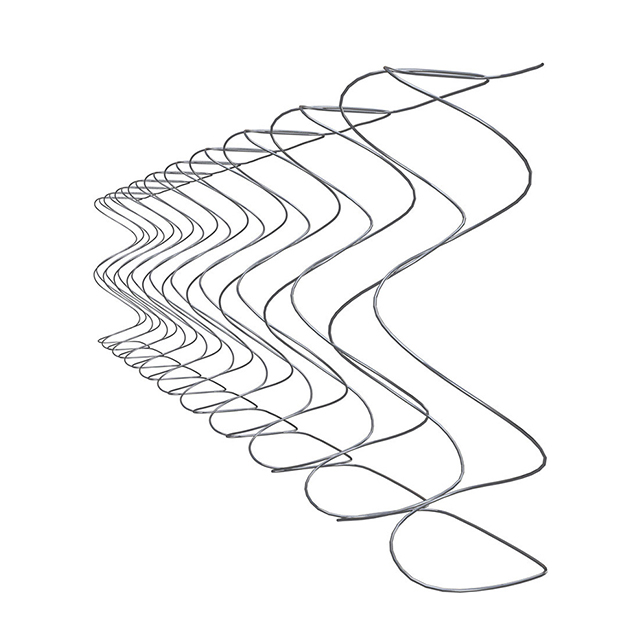

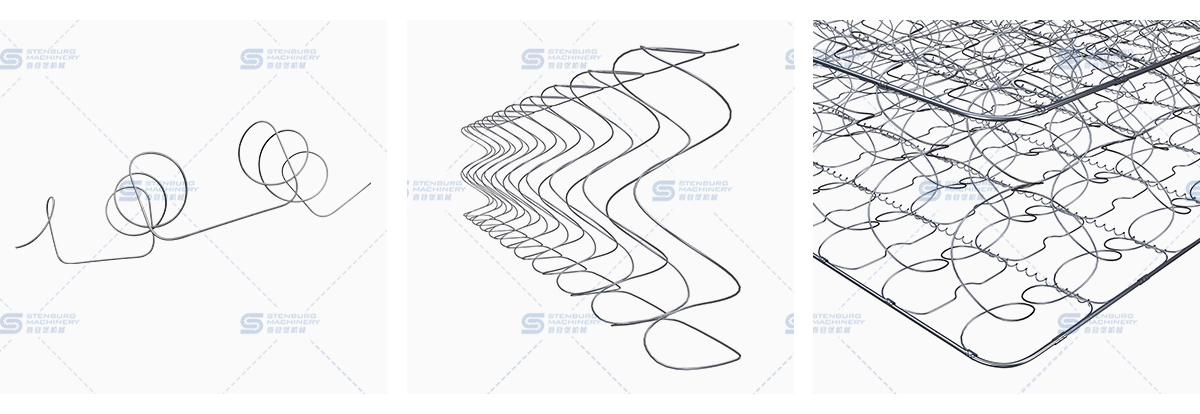

Effect Pictures
Technical Specification
| Model | LSTS-01 |
| spring wire diameter | 1.7mm-2.2mm |
| spring height | 1700±10mm（special size could be made） |
| spring end ring | 51*113±3mm |
| Spring Coils | 4 |
| spring waist gauge | 48mm（special size could be made） |
| output | 35pcs/min |
| total power | 1.5kw |
| measurement | 6000*1000*1600mm |
| weight | 950kgs |
