SB-70 High Speed Mattress Flanging Machine

Heavy-duty Flanging Machine have Japan JUKI-6900 high speed straight needle sewing head, Double Straight needle design,  With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning. Push-button type stitch length regulator, no need for changing the cam,Micro adjustment of differential feeding ratio,With thread & needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread leaping.Adopt double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam,The sewing speed is controlled with imported needle position motor and control box. Low noise, small vibration, stable performance!
Availability:
Quantity:
  • SB-70

  • Stenburg Mattress Machinery

1200

SB-70 Heavy-duty Flanging Machine

Technical characteristics

1. Japan JUKI-6900 high speed straight needle sewing head,

2. Double Straight needle design,

3. With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning.

4. Push-button type stitch length regulator, no need for changing the cam,

5. Micro adjustment of differential feeding ratio,

6. With thread & needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread leaping.

7.Adopt double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam,

8. The sewing speed is controlled with imported needle position motor and control box.

9. Equipped with pneumatic auto presser foot, equipped with special encoder to position needles,

10. Low noise, small vibration, stable performance,

Detail Pictures

SB-70细节图

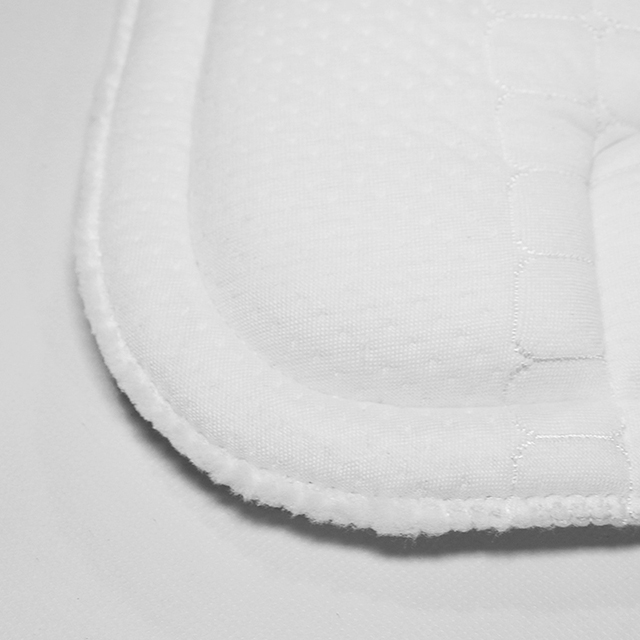

Effect Pictures

SB-70效果图

Technical Specification

model SB-70
Max Rotate Speed  3500PRM
Flanging Width  25mm
Flanging Thickness 15mm
Stitch pitch 2~5mm
aximum sewing speed 5000 needles/min
Lubrication SHELL C 10 Spindle oil (or the products of the same grade)
Needle Model D0*5 22#
Needle Gauge  2.0,3.0,5.0mm
Air Pressure 0.5~0.8MPa
Different motion ratio Contraction stitch: 1:2(Max.:1:4)      Stretch stitch: 1:0.7 (Max.:1:0.6)
Total Power  0.6KW
Voltage 1 phase, 220V,50HZ
Weight 180kg
