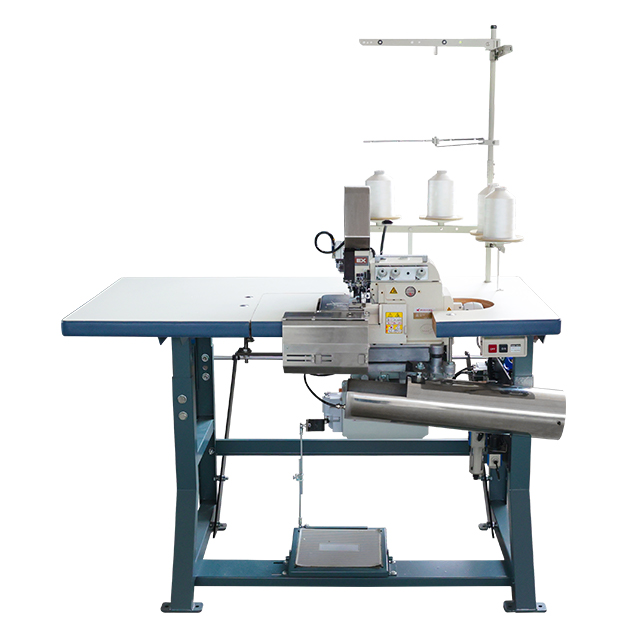

SB-80 Heavy-duty Mattress Flanging Machine

Mattress Flanging Machine have Japan PEGASUS high speed straight needle sewing head ,Straight needle design, With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning. Push-button type stitch length regulator, no need for changing the cam ,With thread & needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread leaping.Double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam,The sewing speed is controlled with imported needle position motor and control box.Equipped with pneumatic auto presser foot, equipped with special encoder to position needles.Low noise, small vibration, stable performance!
Availability:
Quantity:
  • SB-80

  • Stenburg Mattress Machinery

1200

SB-80 Heavy-duty Flanging Machine

Technical characteristics

1. Japan PEGASUS high speed straight needle sewing head

2. Straight needle design,

3. With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning.

4. Push-button type stitch length regulator, no need for changing the cam

5. With thread & needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread leaping.

6. Double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam

7.The sewing speed is controlled with imported needle position motor and control box.

8.Equipped with pneumatic auto presser foot, equipped with special encoder to position needles.Low noise, small vibration, stable performance

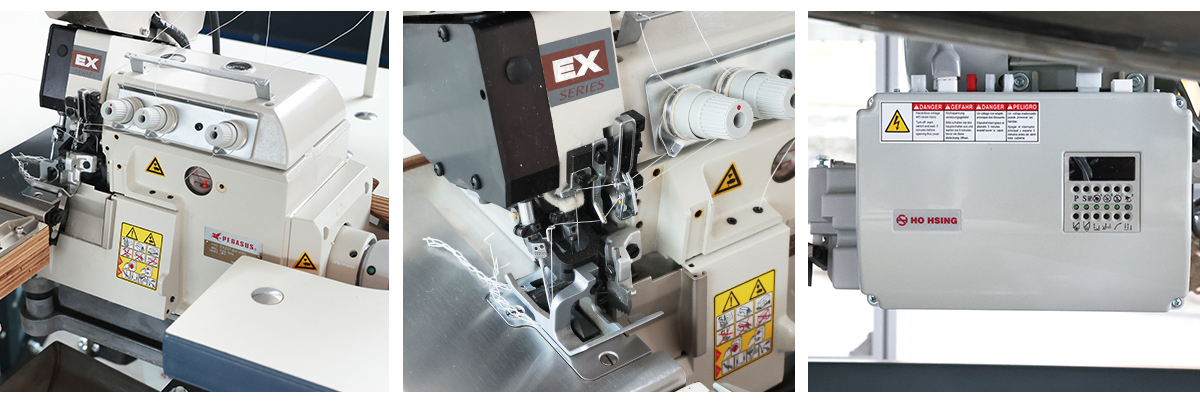

Detail Pictures

SB-80细节图

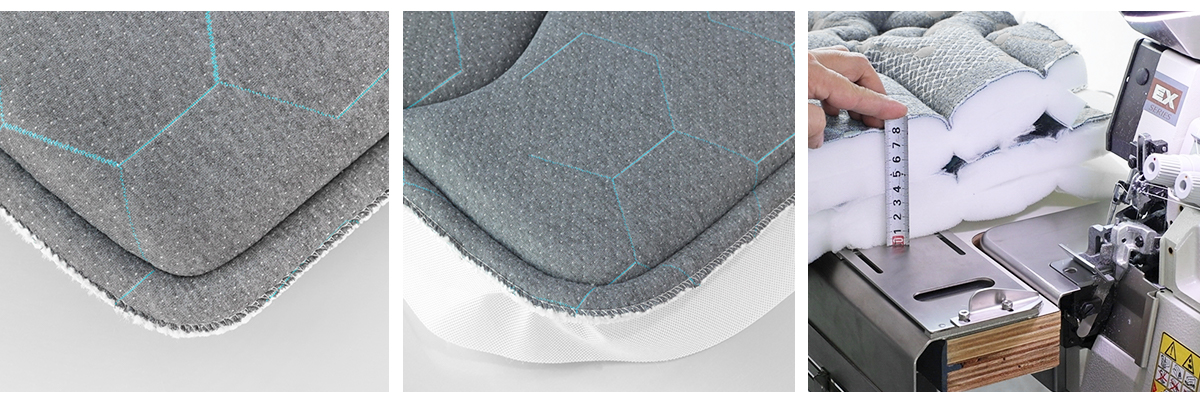

Effect Pictures

SB-80效果图

Technical Specification

model SB-80
Max Rotate Speed  2500 RPM
Flanging Width  25 mm
Flanging Thickness  (35-80) mm
Stitch Length  (2-5) mm
Lubrication SHELL C 10 Spindle oil
Needle Model RM-6  22-23#
Needle Gauge 2.0, 3.0, 5.0 mm
Needle bar type Double-bar
Air Pressure (0.5 – 0.8) Mpa
Total Power 600W
Voltage 1 phase, 220V, 50Hz
Weight 145kg
