You are here: Home » Products » Mattress Spring Machine » Sofa Spring Machine » SF-COIL Fully Automatic Sofa Zig-zag Coiling Spring Forming Machine

Product Category

SF-COIL Fully Automatic Sofa Zig-zag Coiling Spring Forming Machine

SF-COIL sofa spring coil spring automatic production line is used to produce continuous S-shaped springs. It is an ideal equipment for producing special springs for sofas and car cushions. which accurately conveys the curved spring according to the set number of sections, and can freely use the length of the sofa spring. It is suitable for inventory and transportation.. It is also suitable for customizing special sofa styles.
  • SF-COIL

  • Stenburg Mattress Machinery

Availability:
Quantity:

SF-COIL Fully Automatic Sofa Zig-zag Coiling Spring Forming Machine

6

Product Description

SF-COIL sofa spring coil spring automatic production line is used to produce continuous S-shaped springs. It is an ideal equipment for producing special springs for sofas and car cushions. which accurately conveys the curved spring according to the set number of sections, and can freely use the length of the sofa spring. It is suitable for inventory and transportation.. It is also suitable for customizing special sofa styles.

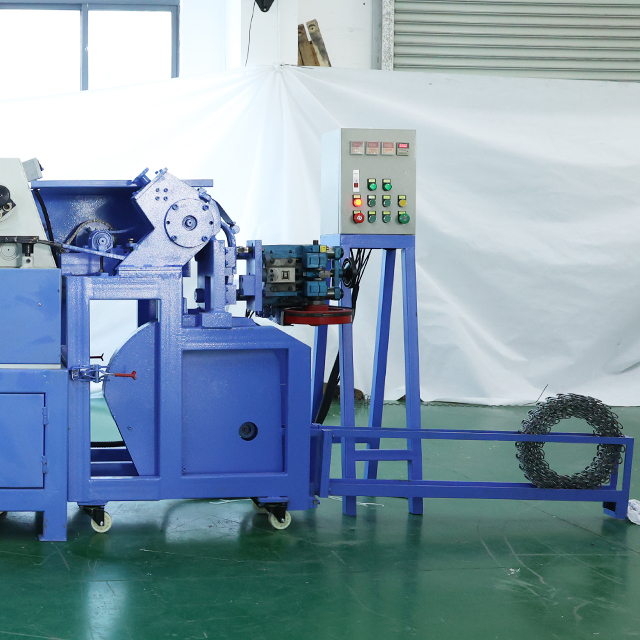

Detail Pictures

SF-COIL-细节图

Effect Pictures

SF-COIL

Technical Specification

Model SF-COIL
Production efficiency 160 single peak/Min,160 double peak/Min
Peak Height

38-70mm

Peak Width

24~36mm

Wire Diameter

Φ2.5~5.0mm

Spring pitch

16-60 mm

Regular spring pitch

20-30 mm

Diameter of spring

3.0-4.0 mm

Feeding speed

12 m/min

Power height of S-shape spring

40-50 mm

Cutting type

Adjustable single,double peak

Host motor power

2.2 Kw

Punch motor power

0.37 Kw

Punch pressure

1 ton

Zig zag spring forming machine motor power

2.2KW

Zig zag spring coiling device power

0.7KW

Weight

1000Kg

Total power

3KW
