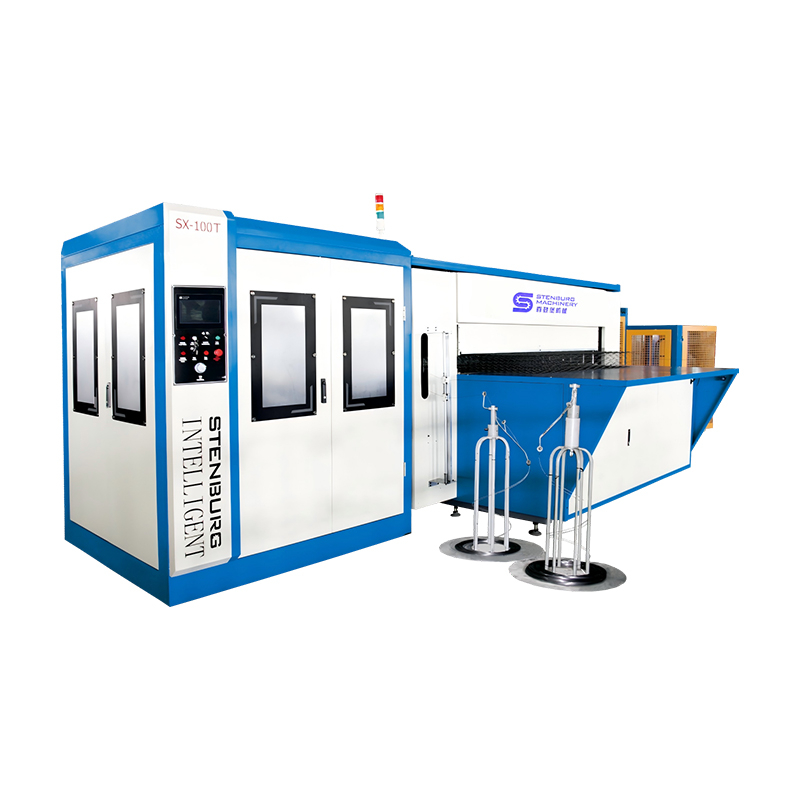

SX-100T Mattress New Design 100 Spring /min High Speed Automatic Bonnell Spring Transfer Machine Line

SX-100T Mattress New Design 100 Spring /min High Speed Automatic Bonnell Spring Transfer Machine Line

The whole machine adopts Stenburg's most advanced control system and the operation control software is the latest version. It
can directly produce built-in spring bed nets from steel wire.

Model:
SX-100T
Brand:
Stenburg Mattress Machinery

Quantity:
Availability:





Inquire Add to Basket

Product Description

SX-100T New Design 100 Spring /min High Speed Automatic Bonnell Spring Transfer Machine Line

1200

Product Description

The SX-100T automatic Bonnell spring production line is the latest model for producing "Bonnell" type inner spring units. The whole machine adopts Stenburg's most advanced control system and the operation control software is the latest version. It can directly produce built-in spring bed nets from steel wire.

Technical Characteristics

1. The manipulator transmission mode adopts worm gear transmission with high stability and no jitter. Production efficiency : 100 spring /min;

2.New generation patented clamping head ，made of special materials, durable.No need to replace traditional ceramic heads frequently

3.Stenburg's latest belt transmission technology,double-layer wide belt structure, upper and lower belts are transmitted synchronously

Detail Pictures

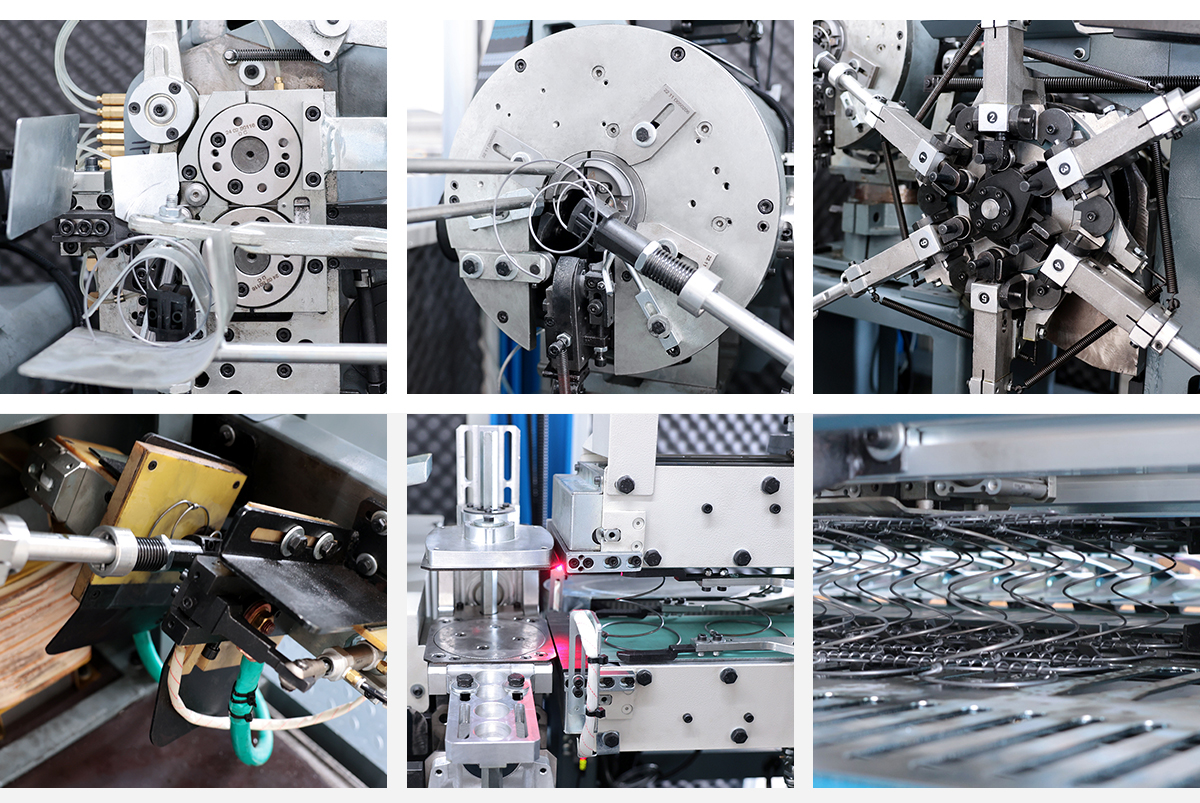

SX-100T细节图

Effect Pictures

SX-90-effect

Technical Specification

Technical Data
Spring Type	Bonnell
Production capacity	100 Springs/min
Max Width	≤2000MM
Spring Height	100-190MM(<100MM Or >190MM on request)
Spring End Ring	Φ65-Φ72MM，Φ75-90MM，Φ82-92MM
Spring Steel Wire Gauge	Φ1.8-Φ2.4MM
Helical Wire Gauge	Φ1.3-Φ1.5MM
Convolutions	4-7 Turns
Main Drive Power	30KVA
Weight	6530KG
Power Requirement	380V,3 Phase,50-60HZ(Option:415V-480V,220V)
