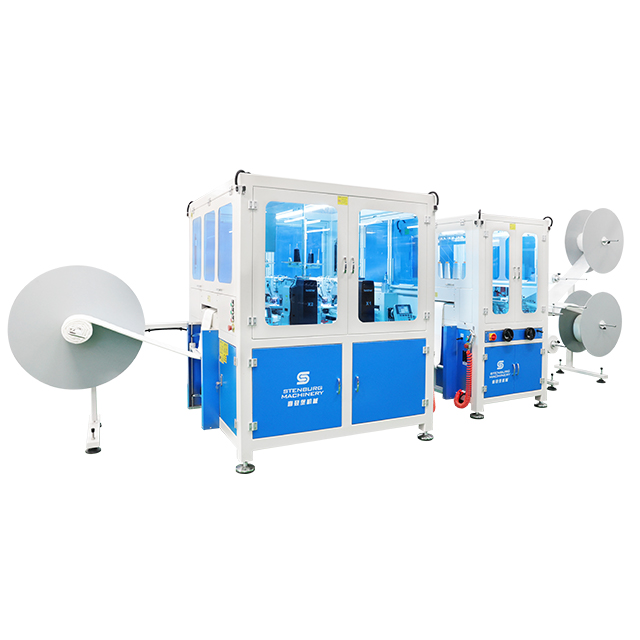

XDB-2B4A Automatic Mattress Border Side Stitching Production Line

model: XDB-2B4A product name: Automatic Border Side Stitching Production Line Application: Mattress Brand Name: STENBURG MACHINERY Place of Origin: Guangdong, China (Mainland) Certificate: ISO9001: 2000 Minimum order quantity: 1 set Price terms: FOB, C&F, CIF (optional) Payment method: letter of credit wire transfer Packaging details: film packaging/wooden box Delivery time: 15~30 working days
Availability:
Quantity:
  • XDB-2B4A

  • Stenburg Mattress Machinery

1200

XDB-2B4A  Automatic Border Side Stitching Production Line

Product Description

Two-dot,three-dot,four-dot,five-dot,six-dot,different dots can be chosen at will.Front and back automatic serging function makes border side look straight and tidy.Machine adopts servo motor to control parameters.All parameters can be changed by touch screen.Precise linear guideway from Taiwan makes stitching head move accurately and more wearproof.It conforms to CE standard for using electrics and control elements of world-famous brand.

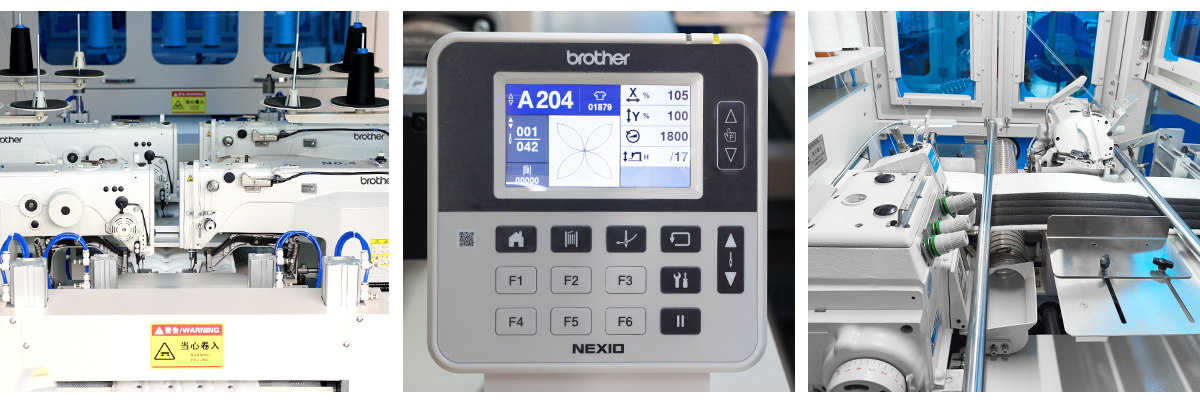

Detail Pictures

XDB-2B4A-细节图

Effect Pictures

XDB-2B4A-效果图

Technical Characteristics

1.Advanced thread break detector can raise the alarm and display thread disconnection break down.

2.Automatic marker function satisfies individual needs.

3.Length and quantity can be set.Machine will stop working automatically once output is finished.

4.Touch screen stores 58 patterns,pattern parameters can be changed randomly.

5.Two-dot,three-dot,four-dot,five-dot,six-dot,different dots can be chosen at will.

6.Front and back automatic serging function makes border side look straight and tidy.

7.Machine adopts servo motor to control parameters.All parameters can be changed by touch screen.

8.Precise linear guideway from Taiwan makes stitching head move accurately and more wearproof.

9.It conforms to CE standard for using electrics and control elements of world-famous brand.

Technical Specifications

model

XDB-2B4A
Maximum speed 2000RPM
Sewing width ≤400mm
Sewing thickness ≤30mm
Output 1-5m/min
Needle stitch 4-6mm
Total power 3.0KW
Power supply 220V,50Hz
Front and back double head sewing machine
Sewing width 5-7mm
Side-lock width range 50-450mm
Side-lock speed 15-30m/min
Sewing thickness ≤25mm
Needle stitch 0-6mm
Total power 1.5KW
Power supply 220V,50Hz
