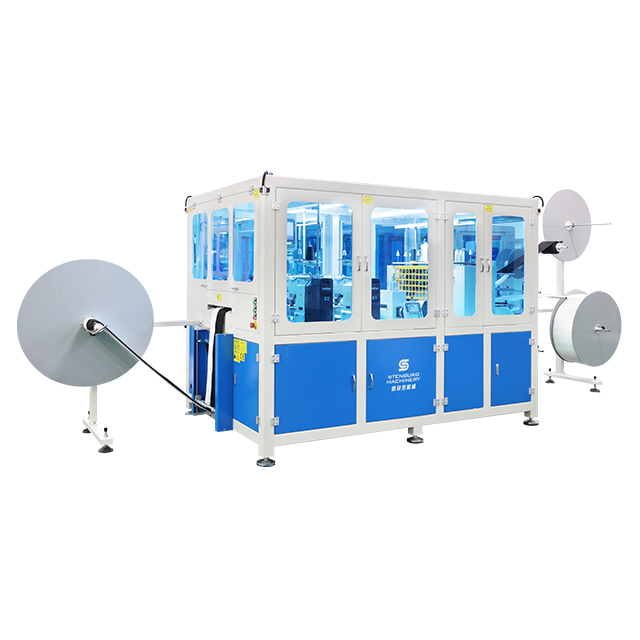

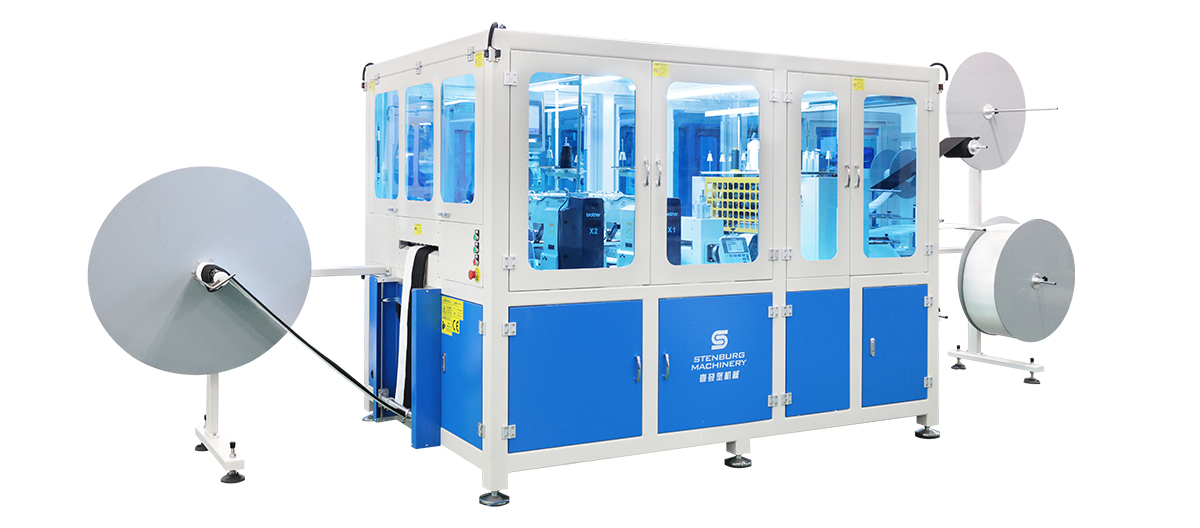

XDB-4A1H Mattress Border Linear Four-head Dotting Machine
Product Description
Two-dot,three-dot,four-dot,five-dot,six-dot,different dots can be chosen at will.Front and back automatic serging function makes border side look straight and tidy.Machine adopts servo motor to control parameters.All parameters can be changed by touch screen.Precise linear guideway from Taiwan makes stitching head move accurately and more wearproof.It conforms to CE standard for using electrics and control elements of world-famous brand.
Technical Characters
1.Broken wire detector, upper thread bottom thread, shut down immediately.
2.Simple and flexible design of the dotting machine, 4 heads can hit 1 point, 2 points, 3 points, 4 points at the same time.
3.The machine is equipped with a size data table, and the size can be changed according to the data table for 2 minutes.
4.Professional control system, programmable design interface,touch-screen control, easy to operate.
5.Able to move to left or right along X, roller cloth feeding and adopt imported servo motors, ensuring high precision.
6.16-axle full-automatic control, can be fully automatic or separate axle controlled, with pattern sewing of high precision.
Technical Specifications
Four-head machine |
| Sewing width | Sewing width |
| Sewing thickness | ≤25mm (depending on material density) |
| Maximum speed | 1200RPM |
| Needle pitch | 6.35mm |
| Needle stitch | 2~5mm |
| Straight line machine |
| Maximum speed | 2500RPM |
| Sewing width | ≤450mm |
| Sewing thickness | ≤30mm |
| Sewing speed | 2-5m/min |
| Needle stitch | 1~5mm |
| Air pressure | 0.6Mpa |
| Power supply | 220V,50Hz |
| Total power | 3.0KW |
