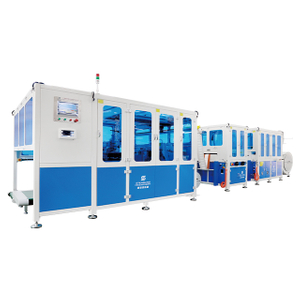

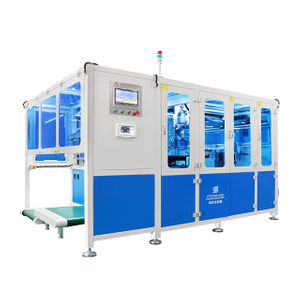

XDB-BS03-WB Fully automatic mattress border vertical handle three-side integrated machine

1. A 1.8m x 2.0m mattress border can be completed in just 1 minute.
2.The serging machine uses the Japanese Pegasus sewing machine head.
3.The overlock machine uses the Japanese Japsew brand to ensure the stability of the machine.
4.The machine head automatically supplies oil to ensure the lubrication of the machine.
5.The machine has 200 recipes to facilitate the needs of different mattress border sizes
  • XDB-BS03-WB

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

XDB-BS03-WB Fully automatic mattress border vertical handle three-side integrated machine

Technical Characteristics

1. A 1.8m x 2.0m mattress border can be completed in just 1 minute.

2.The serging machine uses the Japanese Pegasus sewing machine head.

3.The overlock machine uses the Japanese Japsew brand to ensure the stability of the machine.

4.The machine head automatically supplies oil to ensure the lubrication of the machine.

5.The machine has 200 recipes to facilitate the needs of different mattress border sizes

Detail Pictures

XDB-BS03-WB-detail

Effect Pictures

XDB-BS03-WB-effect

Technical Specification

Production speed

7-8m/min

Border width

190-420mm

Needle Step

2-6mm

Border thickness

<25mm

Handle width

45-70mm

Handle thickness

3-12mm

Non-woven size

100-200mm

Small side border width

70-200mm

Binder size 3.5/3.8/4.0/4.2/4.5cm(Choose one)
Machine size 4050X3070X2200mm
Voltage Power 1 phase 220V,60HZ 4.8KW
Air pressure 0.7Mpa
Weight 1000kg
