You are here: Home » Mattress Sewing Machine » Mattress Border Decorating Tape Sewing Machine » XDB-BS05+2B+BQ-65 Border Quilter + Serging + Horizontal Handle Production Line For mattress

Product Category

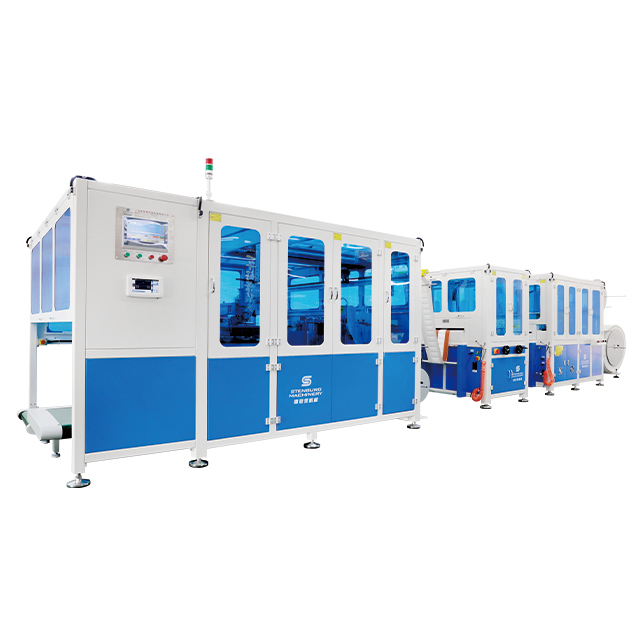

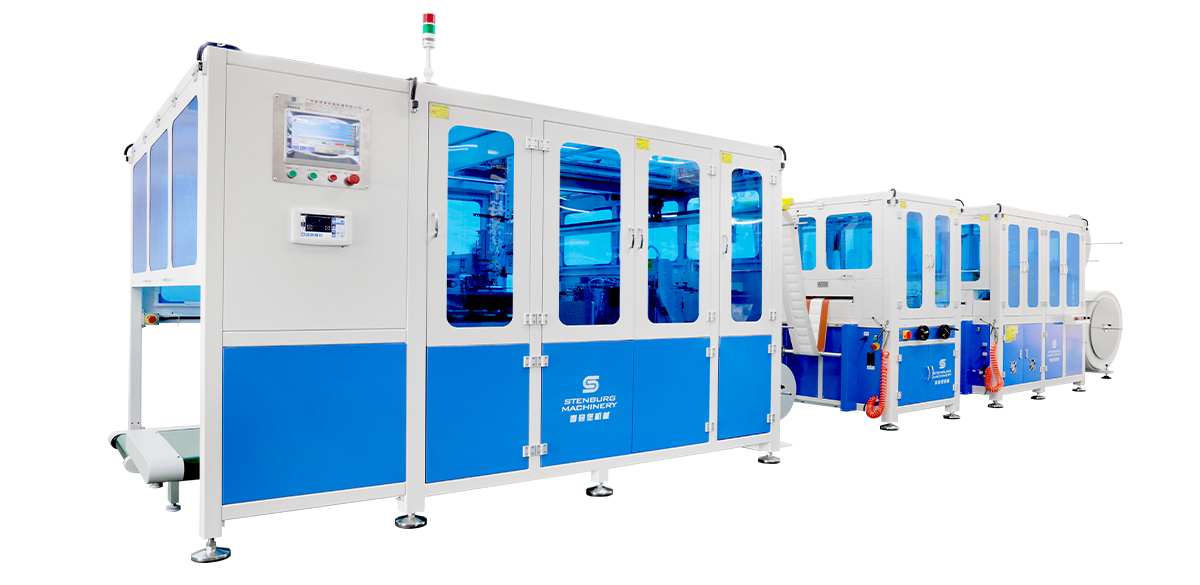

XDB-BS05+2B+BQ-65 Border Quilter + Serging + Horizontal Handle Production Line For mattress

model: XDB-BS05+2B+BQ-65
product name: Automatic Mattress Border Quilter Machine
Application: Mattress Brand
Name: STENBURG MACHINERY Place of Origin: Guangdong, China (Mainland) Certificate: ISO9001: 2000 Minimum order quantity: 1 set Price terms: FOB, C&F, CIF (optional) Payment method: letter of credit wire transfer Packaging details: film packaging/wooden box Delivery time: 15~30 working days
Model:XDB-BS05+2B+BQ-65
Brand:
Stenburg Mattress Machinery
Quantity:
  • XDB-BS05+2B+BQ-65

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

XDB-BS05+2B+BQ-65 Border Quilter + Serging + Horizontal Handle Production Line For mattress

Technical Characteristics

Machines are used for machining of the mattress border : 1. Automatic sewing hand, 2. automatic sewing label, 3 automatic marking, 4.automatic punching qir hole, 5. automatic measure length, 6.automatic cutting, 7. Automatic close two ends of border.

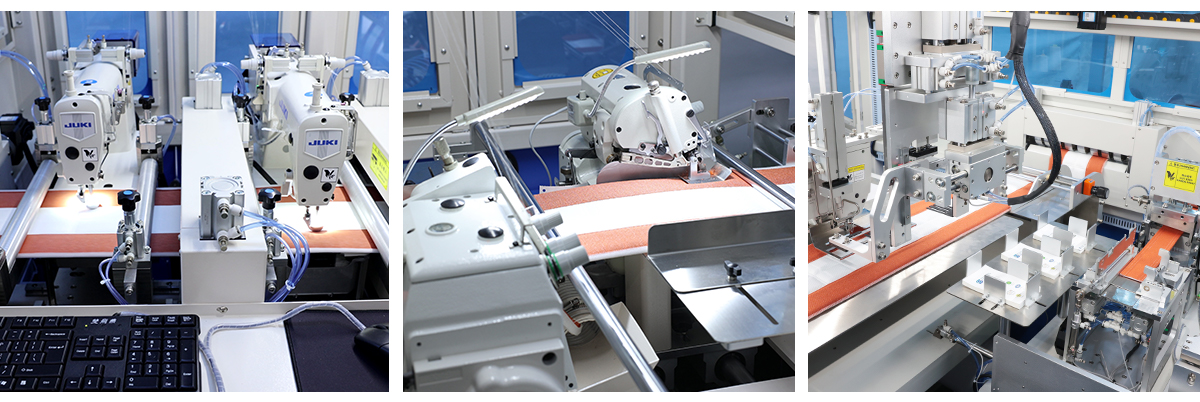

Detail Pictures

XDB-BS05+2B+BQ-65细节图


Effect Pictures

XDB-BS05+2B+BQ-65效果


Pattern sewing machine Straight line machine
Maximum speed 2200RPM Maximum speed 1200RPM
Sewing width Standard:260mm Sewing width 406mm
Special custom:420mm Border width 80-500mm
Sewing thickness 2-26mm Sewing thickness 2-35mm
Needle stitch 2-6mm
Horizontal Handle Machine Serging Machine
Production speed 2 minutes/pcs Overlock stitch width 5-7mm
Handle width 50mm-58mm(customized) Sewing thickness <25mm
Sewing speed 1500-2200RPM Needle stitch 2-6mm
Label width 30-100mm Output 10-25m/min
