XDB-BS01 Mattress Border Sewing Automatic Production Line

  • WY-3A

  • Stenburg Mattress Machinery

Availability:
Quantity:

product detail

XDB-BS01 Mattress Border Sewing Automatic Production Line(Universal Style)

Technical Characteristics

The machine is used for the processing of mattress side border, multi-functional automatic production of border, 1.automatic stitching of labels, 2.automatic front and back seaming, 3.automatic marking points, such as trademark position, air hole position, corner position, etc... ., 4.automatic air holes, 5.automatic calculation of length, 6.automatic cutting, 7.automatic splicing interfaces, the machine can save 60 mattress data of different sizes, which is convenient and quick, saves 6 workers' operations, and also improves the mattress quality and increases the output, so that the whole mattress is upgraded, beautiful, and with unique value. It is a very practical machine and equipment.

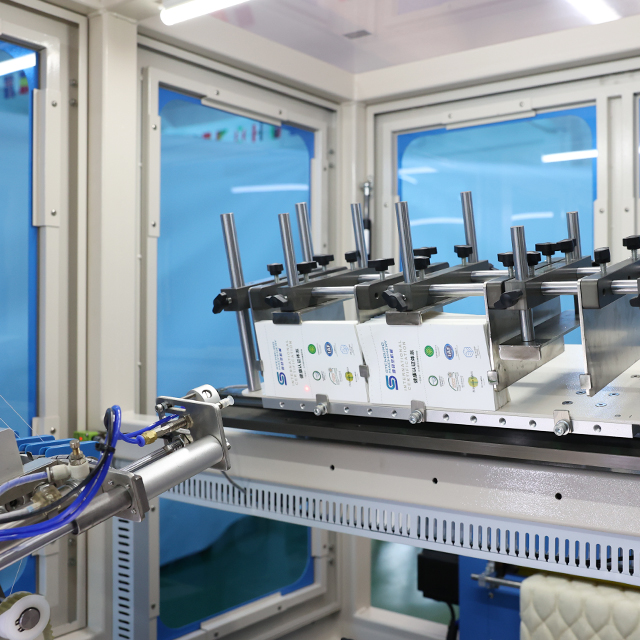

Detail Pictures

Detail Pictures

Effect Pictures

Effect Pictures

Technical Specification

Front and back sewing head

Pegasus 5 lines

Sewing speed

7-8m/min

Border width

50-450mm

Stitch

2-6mm

Border thickness

3-25mm

Label width

30-100mm

Label length

40-140mm

Stomatal diameter

10-30mm

Voltage power

1 phase 220V,60HZ 4KW

Air pressure

0.6mpa

Display

Schneider

PLC

Panasonic

Servo motor

Delta
