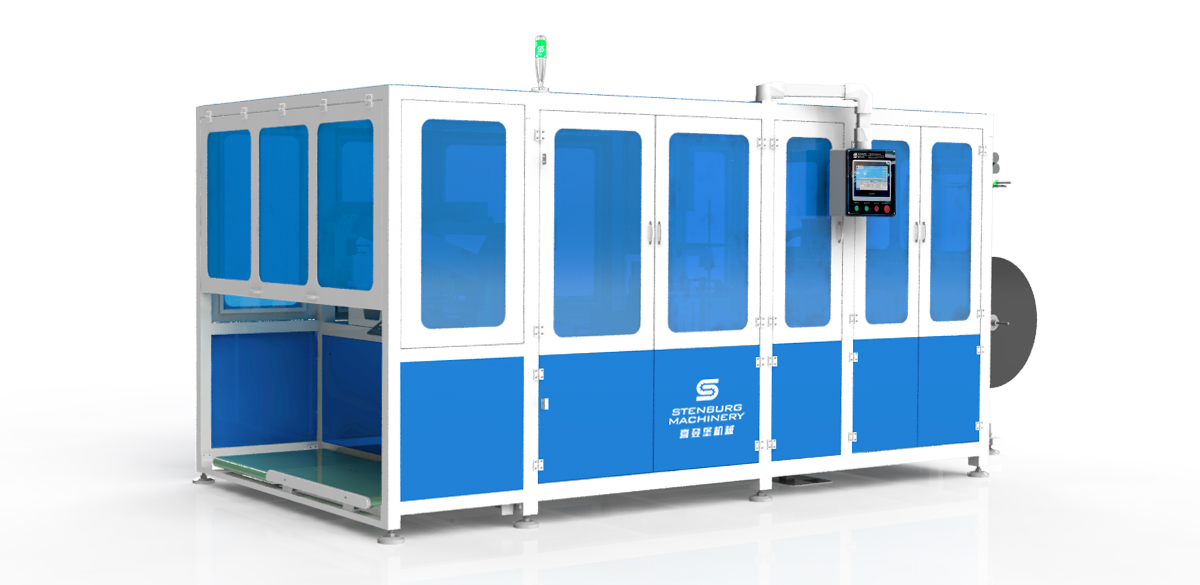

XDB-BS05-ZB Mattress Horizontal Handle + Front Label Sewing Automatic Production Line

The machine is used for mattress border processing, combining 7 processes: ① Automatic handle stitching, ②. Automatic main label stitching, ③. Automatic marking,④. Automatic air-hole punching, ⑤. Automatic length calculation, ⑥. Automatic cutting, ⑦. Automatic splicing.
  • XDB-BS05-ZB

  • Stenburg Mattress Machinery

Availability:
Quantity:

XDB-BS05-ZB Mattress Horizontal Handle + Front Label Sewing Automatic Production Line

Technical Characteristics

The machine is used for mattress border processing, combining 7 processes: ① Automatic handle stitching, ②. Automatic main label stitching, ③. Automatic marking, ④. Automatic air-hole punching, ⑤. Automatic length calculation, ⑥. Automatic cutting, ⑦. Automatic splicing.

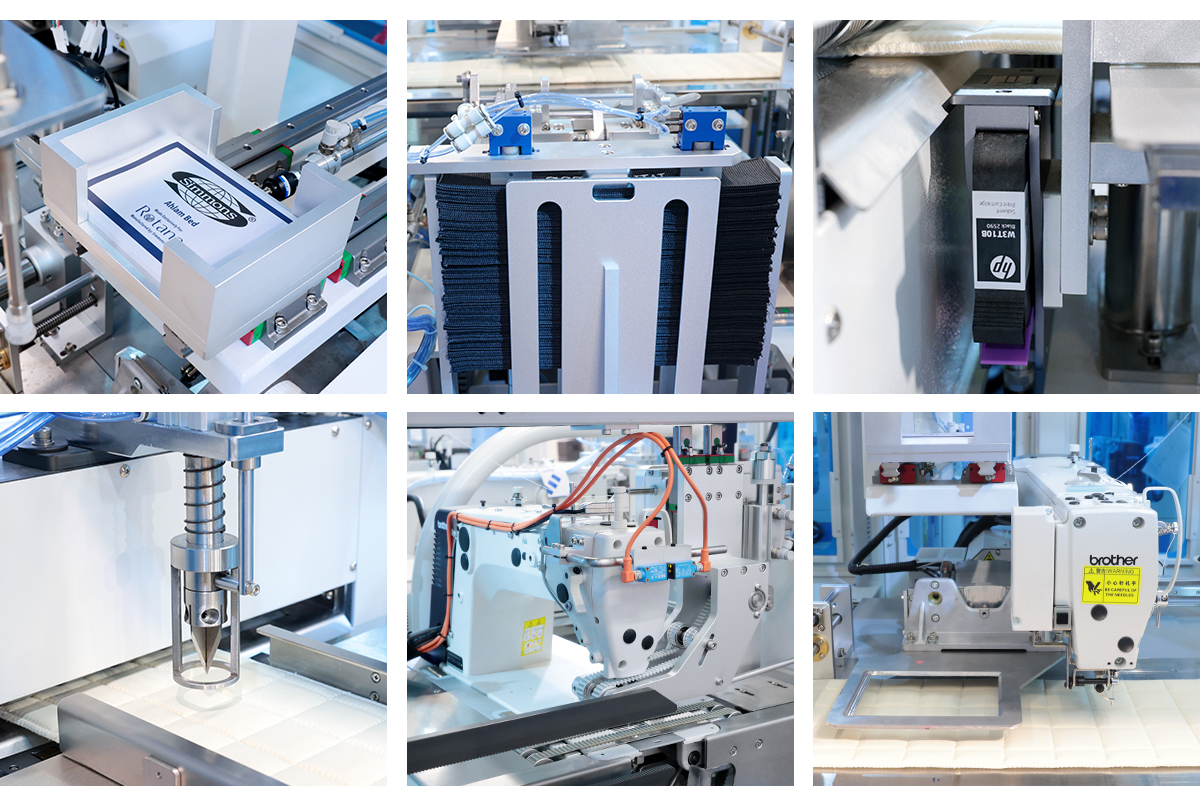

Detail Pictures


Effect Pictures


Technical Specification

Production speed

70-90 s/pcs

Border thickness

5-20mm

Border width

100-400mm

Handle Thickness

2-6mm

Handle Width

50mm-58mm Customizable

Handle Sewing Stroke

300X200mm

Sewing Speed

1500-2500RPM

Label Width

50-190mm Customizable

Label Length

50-290mm Customizable

Air pressure

0.7MPa

Voltage

220V 50-60HZ 8KW

Machine Weight

2000KG
