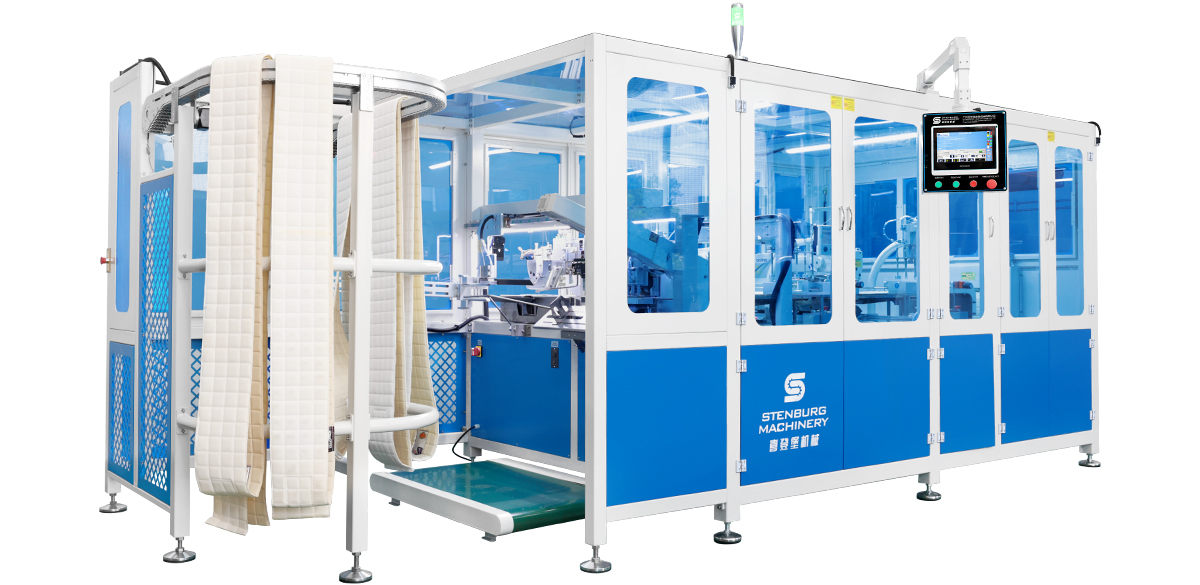

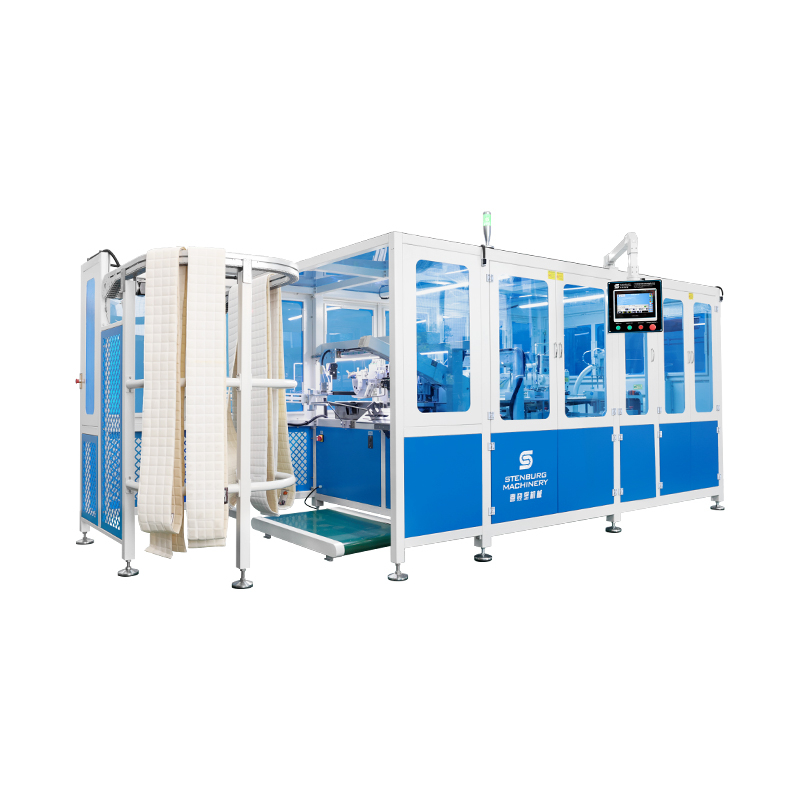

XDB-BS06-ZB-G Automatic Mattress Border Main Labels + Hanging Tags Sewing Production Line

The machine is used for mattress border processing, combining 9 processes: Automatic sewing main label Automatic sewing process card label Automatic sewing hang tag  Automatic marking  Automatic punching air hole Automatic calculation length Automatic cutting Automatic splicing Automatic Suspension
  • XDB-BS06-ZB-G

  • Stenburg Mattress Machinery

Availability:
Quantity:

XDB-BS06-ZB-G Automatic Mattress Border Main Labels + Hanging Tags Sewing Production Line

Technical Characteristics

The machine is used for mattress border processing, combining 9 processes: ① Automatic sewing main label ② Automatic sewing process card label ③ Automatic sewing hang tag ④ Automatic marking ⑤ Automatic punching air hole ⑥ Automatic calculation length ⑦ Automatic cutting ⑧ Automatic splicing ⑨ Automatic Suspension

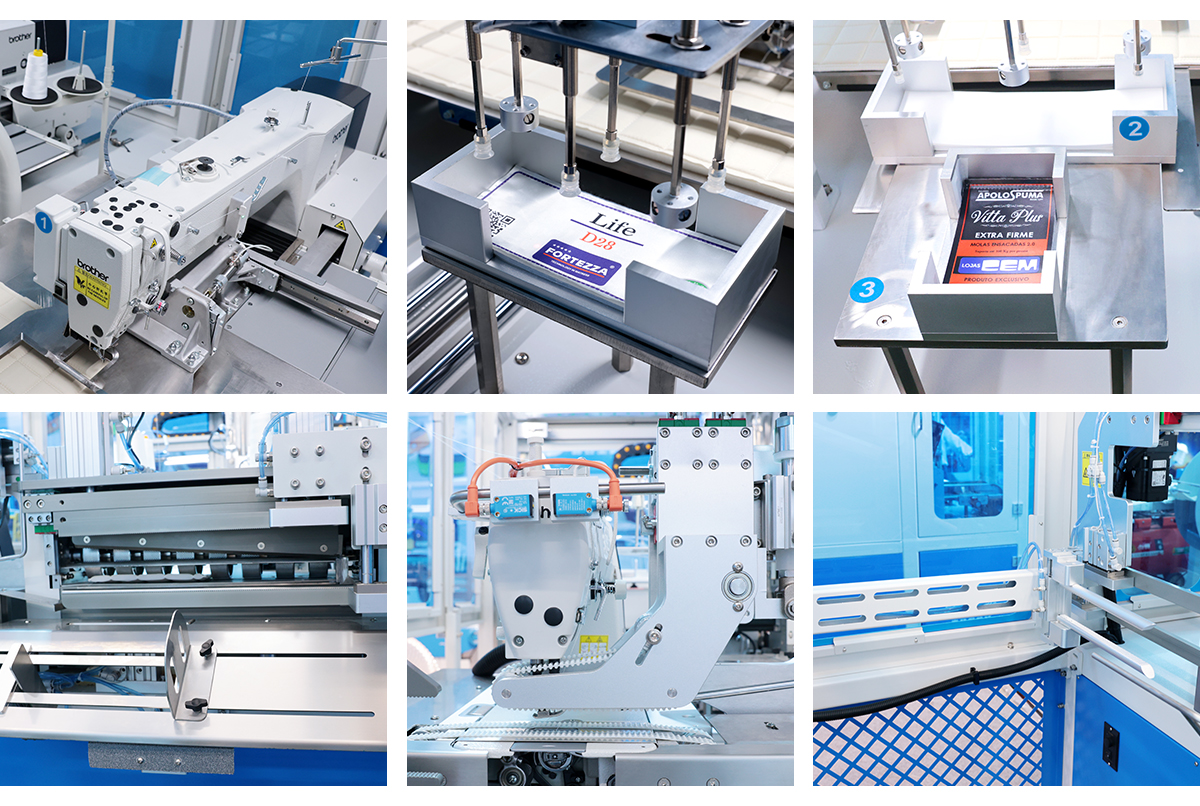

Detail Pictures


Effect Pictures


Technical Specification

Production speed

60-80 s/Item Border

Border width

150-400mm

Border thickness

5-20mm

Sewing speed

1500-2500RPM

Main label width

50-190mm/Customizable

Main label length

50-300mm/Customizable

Hang label width

40-130mm/Customizable

Hang label length

40-200mm/Customizable

Stitch length

2-6mm

Air pressure

0.7MPa

Voltage Power

220V 50-60HZ 8KW

Machine weight

2000KG
