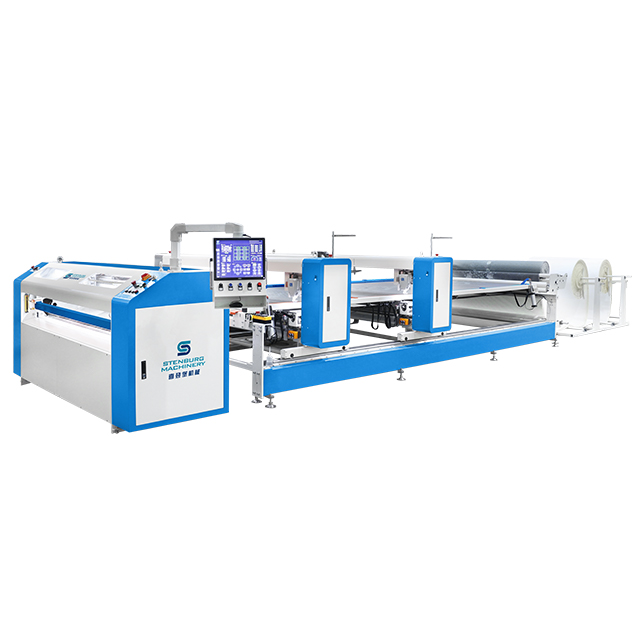

XDB-DZ-2L2T Computerized Double-beam Double-head Single Needle Quilting Machine

XDB-DZ-2L2T Computerized Double-beam Double-head Single Needle Quilting Machine

It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.

Model:
XDB-DZ-2L2T

Quantity:
Availability:





Inquire Add to Basket

Product Description

XDB-DZ-2L2T Computerized Double-beam Double-head Single Needle Quilting Machine

Technical Characteristics

Industry pioneer double independent beam design,which has been patented by the state.
The structure desian of double-beam anddouble-head can meet the simultaneous quilting of two beds of materials, and the production efficiency, space utilization efficiency, and labor utilization efficiency are increased by 100%.
Using the original imported industrial sewing machinehead from Europe,the maximum processing speed canreach 3000 RPM.
Clamping materials, feeding, tensioning, quilting, crosscutting and edge cutting can be realized integration au-tomatically
Automatic thread trimming, thread-broken detection,pattern compensation,adjustable presser for different thickness
Powerful pattern editing and modification functions,support embroidery file format and a variety of quiltingfile formats
More than 100,000 patterns can be stored
Support all the single needle quilting machine patterns
The use of precision linear quide rail to accurately ensure the relative position of the needle shuttle
High precision quilting with complicated patterns.Automatic needle-lifting,simulation indicated, output qualified,And it ensures quilting continuity with power-offprotection.

Detail PicturesEffect PicturesTechnical Specifications

Model	XDB-DZ-2L2T
Size	L11500×W3800×H1650
Quilting width	2200mm
Quilting Thickness	80mm
Needle Type	DP*17 19#/21# /22#
Stitch length	2~8mm
Needle Speed	3000RPM
Total power required	8.5KW
Voltage	3 Phases 380V/50HZ 3 Phases 220V/60HZ
Weight	4500kg
