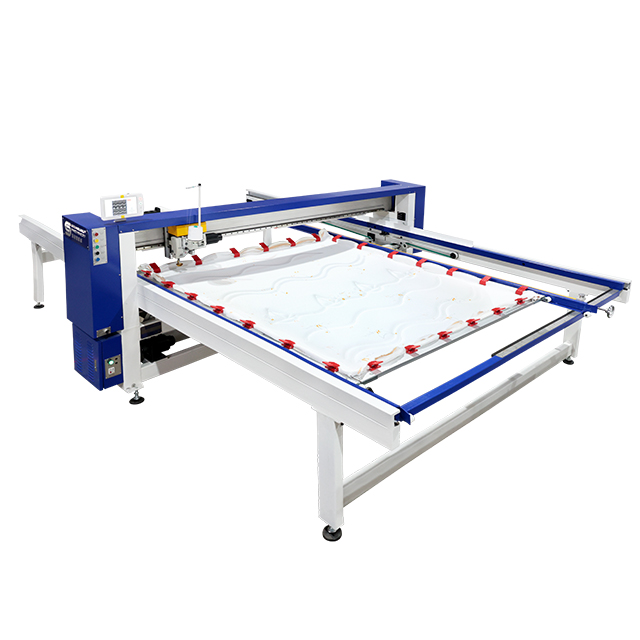

XDB-GS Computerized High Speed Single Needle Quilting Machine

Products Description

It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast.

Technical Characters

1. Adopt the  imported linear guider, sewing head moving with high efficiency but lower  vibration noise.

2.Max sewing speed  is 3000rpm, improve working efficiency 20-25%;

3. Easy worn parts  of sewing head free of oil, good for machine maintenance;

4. Auto adjust the  hook position will stock in computer memory;

5. Configuration  auto trimming and lubrication;

6. Industrial  computer update,system versatility optimization and high precision of quilting;

7. Main axis adopt  the electronic system, X and Y direction adopt the stepper drive system ;

8. Using new  industrial control board, USB flash disk will be useful to reset or coy the  designs in software;

9. Sewing head  provide the moving pressure equipment, quilting process will be stable and  smoothly,. Adopt single head ,single needle, lock stitch and big rotary hook;

10. Upper thread  detection is available , machine will auto stop when its open.

11. It has more  than 200 different kinds of designs in stock, Customer could copy the design  from USB flash disk;

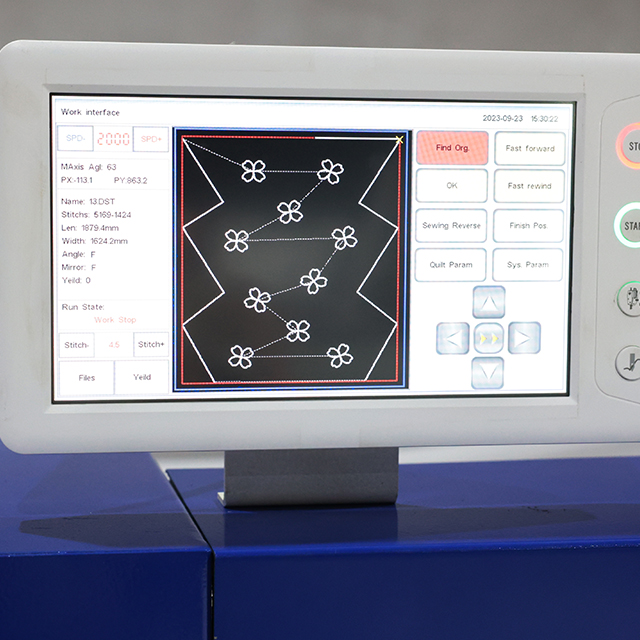

12. Through pattern  management, could check, copy or delete the pattern;

13.It has pattern  browse function,could read dst,dat,emb etc design format, could rotate and  mirror the pattern.

14. It has the  count quantity and clear function, could count the output very easy.

15, It could  quilting forward or backward and setting the lock stitch needle stitch length.

16, It could  tracking pattern stitch, easy to find any point of pattern.

17, It will show  quilting and note the operation method.

18, It easy to set  the pattern limit range and pattern space in computer.

19, It could  trimming the position, could exactly the piece by piece.

20, Through setting  the pattern limit range and space to enlarge  reduce the pattern.

21, Needle auto  stop in high position.

22, System testing  function, Easy to test the machine working process, good for maintenance  machine.

23, Main axis  problem testing function could avoid the quilt damage, because of the  main axis fault. It has the protection function of beyond the bound.

24, It has auto or  manual method to back to home position

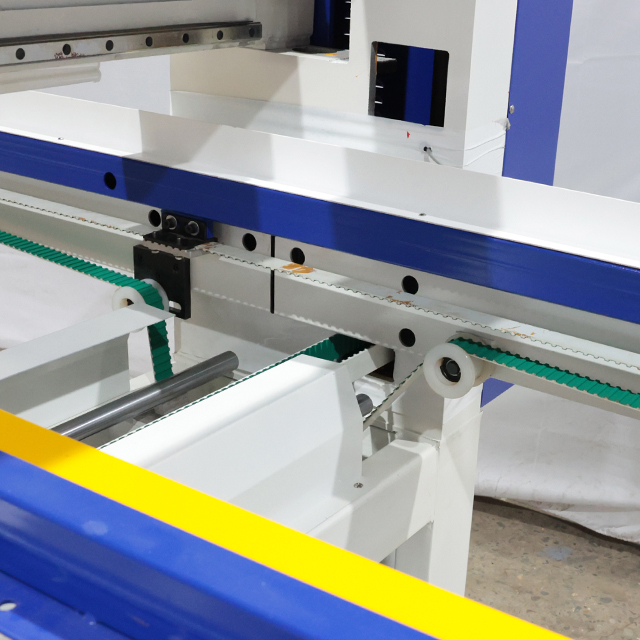

Detail Pictures

Effect Pictures

Technical Specification
