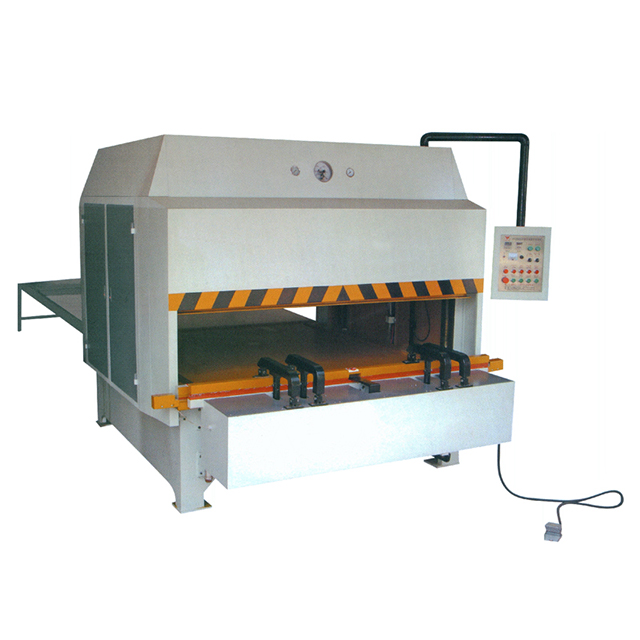

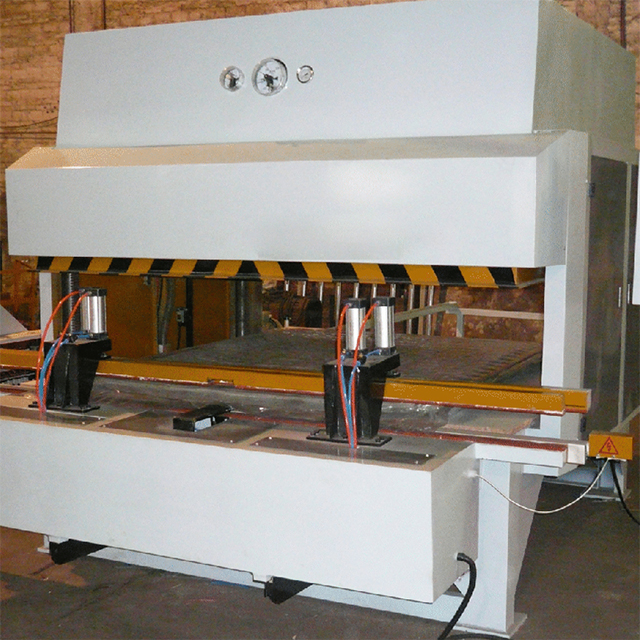

YS-220 Mattress  Compression Vacuum Packing Machine

Product Description

YS-220 Mattress Compression  Vacuum Packing Machine is mainly used for the compression of sponge  mattresses and spring mattresses. The use of vacuum compression packaging,  professional electronic control system, can ensure that the mattress of  different models and thickness can be quickly compressed without damaging the  mattress.

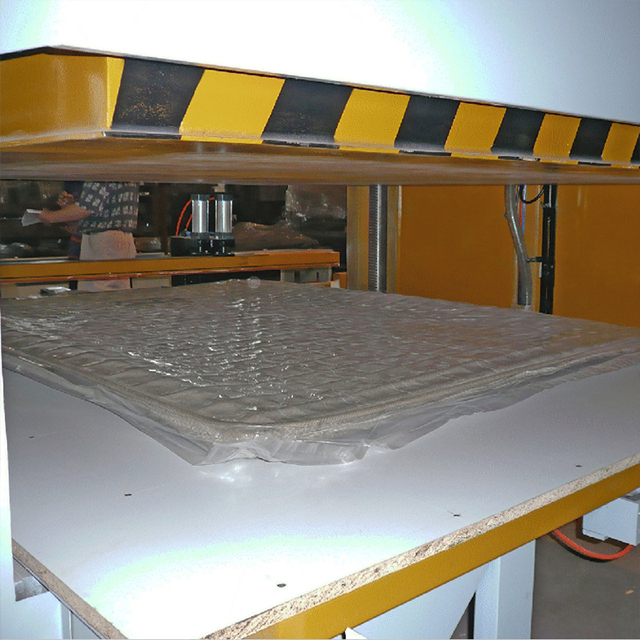

The compression of  the mattress is automatically completed by the conveyor belt from the entrance  to the exit, and has the functions of automatic vacuuming, automatic heat  sealing, etc., saving time and labor, reducing labor intensity, and greatly  saving storage, transportation space and enterprise cost.

Technical Characteristics


1.Economic machine

2.Easy to adjust

Technical Specifications

model YS-220
Machine dimensions L3100×W3000×H3050mm
Applicable packaging mattress type Individual pocket    spring mattress, regular spring mattress, sponge soft mattress
Maximum package mattress length 2200mm
Maximum package mattress width 2200mm
Maximum package mattress height 480mm
Number of cylinders 4PCS
Number of cylinders 2PCS
Heating power 5KW
Working power supply 3-phase 380V 50HZ    (can be customized)
Gas source pressure 0.6~0.8MPA
Total power 15KW
Total weight of the machine 5000kg
Platen pressure 60T
