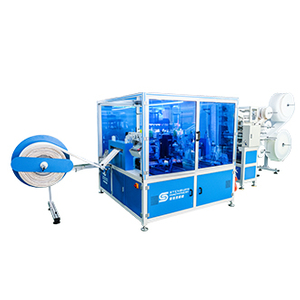

XDB-DD4A Computerized Four-Head Border Side Stitching Machine For Mattress

DD-4A Computerized Four-Head Border Side Stitching Machine For Mattress

XDB-DD4A Computerized Four-Head Border Side Stitching Machine For Mattress

model: XDB-DD4A product name: Computerized Four-Head Border Side Stitching Machine Application: Mattress Brand Name: STENBURG MACHINERY Place of Origin: Guangdong, China (Mainland) Certificate: ISO9001: 2000 Minimum order quantity: 1 set Price terms: FOB, C&F, CIF (optional) Payment method: letter of credit wire transfer Packaging details: film packaging/wooden box Delivery time: 15~30 working days

Model:
XDB-DD4A
Brand:
Stenburg Mattress Machinery

Quantity:
Availability:





Inquire Add to Basket

Product Description

XDB-DD4A Computerized Four-Head Border Side Stitching Machine

Technical Characteristics

1.Adopt 4 brother shuttle sewing heads that can work together or separately

2.Professional control system, programmable design interface,touch-screen control

3.Automatic thread cutting without any thread residue

4.Automatic cloth receiving and feeding device in synchronous movement

5.Able to design according to the patterns of clients

6.Able to move to left or right along X,roller cloth feeding and adopts servo and stepping motors ensuring more precision

7.Adopt humanized design concept, digitally adjust the size, can store 60 size data recipes, easy to start with one key

Detail Pictures

DD-4A-细节图

Effect Pictures

DD-4A-效果图

Technical Specification

Maximum speed	2500RPM
Sewing width	100-400mm
Sewing thickness	≤30mm
Output	2-3m/min
Pattern size	2-18mm
Total power	3.0KW
Power supply	1 phase 220V 50-60HZ
Air pressure	0.6-0.7MPa
Weight	1300kg
