LR-PSA-98F Power Edge Pocket Spring Assembly Machine

Model: LR-PSA-98F Product Name: Pocket Spring Machine Application: Mattress Brand Name: STENBURG MACHINERY Place of origin: Guangdong,China(mainland) Certificates: ISO9001:2000 Minimum Order: 1 Set Price Term: FOB, C&F, CIF (optional) Payment Terms: L/C T/T Packaging Details: Film Packing/Wooden Case Delivery: 15 ~30working days Quantity:
  • LR-PSA-98F

Availability:
Quantity:

详情图

LR-PSA-98F  Pocket Spring Assembly Machine(Power edge)

Product Description

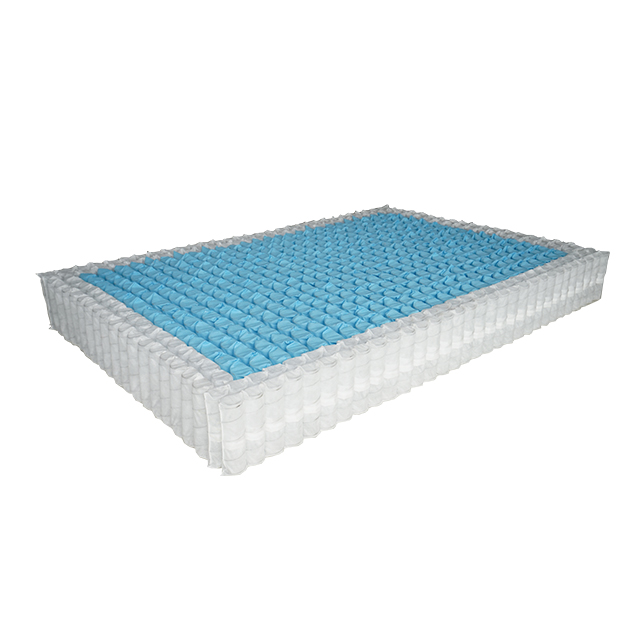

Available for producing spring cores with power edge

Technical Characteristics

1.Core with zones available
2. Reducing rate of spoiled

3. Coforming to CE standard

Detail Pictures

LR-PSA-99F-细节图

Effect Pictures

Effect Pictures

Technical Specifications

Model LR-PSA-98F
Production capacity 10-14spings/min.
Hot melt application system Nordson (the USA) or Robatech (Switzerland)
Capacity of glue tank 15kg/18kg/30kg
Gluing method Continuous gluing mode/interrupted gluing mode
Control of assembling zoned tape Electronic control
Possibility of assembling zoned tape possible
Possibility of assembling zoned mattress possible
Air consumption  0.3 m⊃3;/min
Air pressure
0.6-0.7mpa
Power consumption in total 15KW
Voltage 3AC   380V
Frequency 50/60Hz
Input current 25A
Cable section 3*10mm⊃2;+2*6mm⊃2;
Working temperature +5°C+35°C
Weight 5500Kg
Consumption Material Data
Non-woven fabric

No top/bottom fabric

Hot melt glue

Viscosity

125℃---6100cps

150℃---2300cps

175℃---1100cps

Softening point

85+5℃

Consumption Material Data
Spring Waist Diameter  Pocket Spring Height
Ø37-75 55-250
