LR-PSLINE-DL Pocket Spring Production Line
Technical Characteristics
1.Patented Product
2.120 springs/min
3.Conforming to CE standard
4.Leading technology in the industry

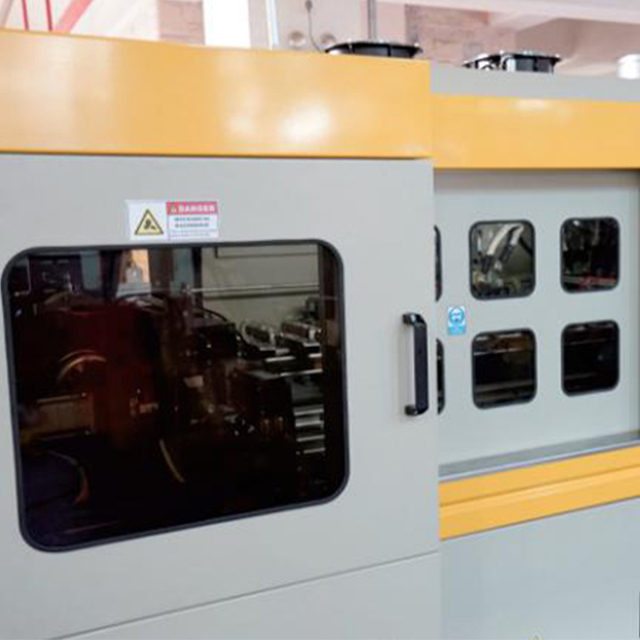

Detail Pictures

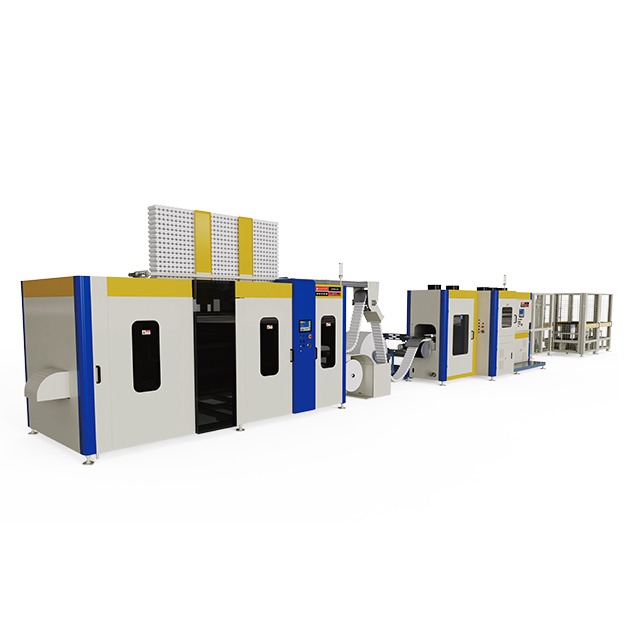

Effect Pictures
Technical Specification
| Character |
| Model | LR-PSLINE-DL |
| Production capacity | 120 pairs/min |
| Coiling head | Two servo coiling heads |
| Working principle | Servo control |
| Spring shape | Standard versions:barrel and cylindrical |
| Hot melt application system | Robatech(Switzerland) |
| Capacity of glue tank | 8KG |
| Gluing method | Continuous gluing mode/interrupted gluing |
| Air consumption | Approx.0.35m⊃3;+0.65m⊃3;/min |
| Air pressure | 0.6-0.7 mpa |
| Power consumption in total | Approx.8KW+55KW |
| Power requirement | Voltage | 3AC 380V |
| Frequency | 50/60 Hz |
| Input current | 13A+90A |
| Cable section | 3*6 mm2 + 2*4 mm2
3*35 mm2 + 2*16 mm2 |
| Working temperature | +5℃-+35℃ |
| weight | Approx.9000Kg |
| Consumption Material Data |
| Non-woven fabric |
| Fabric density | 65~90g/m2 |
| Fabric width | 520-740mm |
| Inner dia.of fabric roll | Min.75mm |
| Outer dia.of fabric roll | Max.1000mm |
| Steel Wire |
| Inner dia.of wire roll | Min.320mm |
| Outer dia.of wire roll | Max.1000mm |
| Acceptable weight of wire roll | Max.1000kg |
| Hot melt glue |
| Shape | Pallet or pieces |
| Viscosity | 125℃--6100cps
150℃--2300cps
175℃--1100cps |
| Softening Point | 85±5℃ |
| Working Range(mm) |
| | Wire Diameter | Spring Waist Diameter | Minimum pocketed height b of one of the layers | Pocket spring height |
| Option-01 | Φ1.3-1.6 | Φ42-52 | 60 | 180-230 |
| Option-02 | Φ1.5-2.1 | Φ52-65 | 60 | 180-230 |
