You are here: Home » Products » Mattress Spring Machine » Pocket Spring Machine » SX-SH1 Super Hybrid Dpockets Spring Machine

Product Category

loading

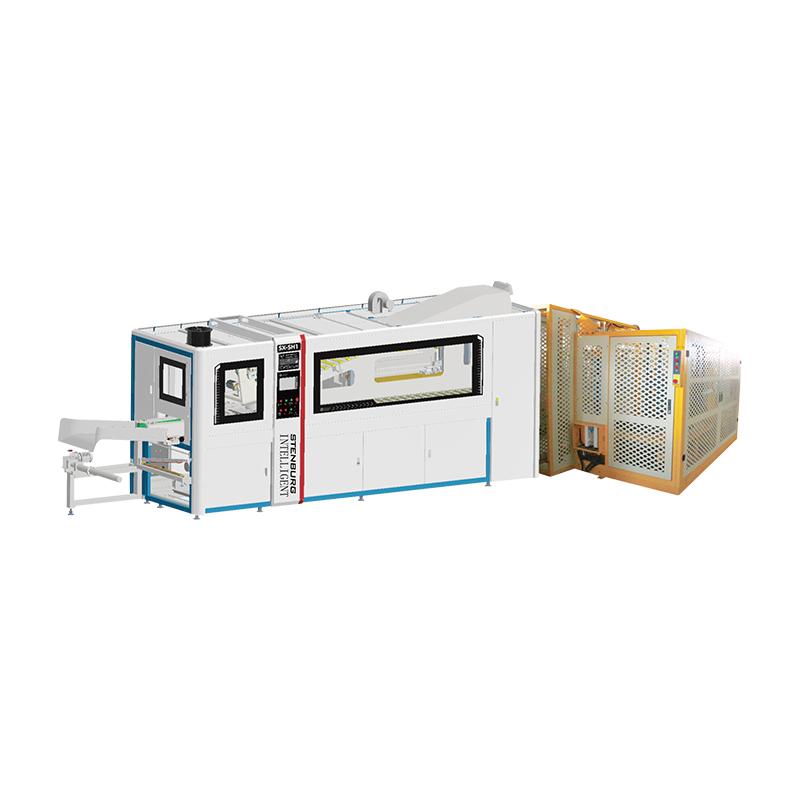

SX-SH1 Super Hybrid Dpockets Spring Machine

what spring type can be done by Sx-SH1:1.High compression pocket spring
2.Ultra-4 turns spring 3.Conventional pocket spring
  • SX-SH1

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

SX-SH1 Super Hybrid Dpockets Spring Machine

Product Description

what spring type can be done by Sx-SH1:1.High compression pocket spring 2.Ultra-4 turns spring 3.Conventional pocket spring

Detail Pictures

SX-SH2细节图

Effect Pictures

SX-SH2效果图

Technical Specification

Spring type Conventional pocket spring Ultra-4 pocket spring High compression pocket spring One row Ultra-4 pocket spring One row high compression pocket spring One row Ultra-4 pocket spring One row conventional pocket spring
Wire diameter(MM) 2 1.7 1.7 1.7&2.0
Spring wire(MM) 65 65 65 65 65
Spring turns 6 4 5.5 Ultra-4 spring 4 turns High compression 6 turns Ultra-4 spring 4 turns Conventional spring 6 turns
Spring top & botton diameter(MM) 55 50 50 Ultra-4 spring 50 High compression 50 Ultra-4 spring 50 Conventional spring 50
Wire length of each spring(MM) 1070 770 1220 Ultra-4 spring 770 High compression 1220 Ultra-4 spring 770 Conventional spring 1070
Before pocket height(MM) 170 170 170 170 170
Each pocket height(g) 26 13 20 Ultra-4 spring 13 High compression 20 Ultra-4 spring 13 Conventional spring 26
Spring counts (900mm*1900mm) 420(14*30rows) 434(14*31rows) 420(14*30rows) 420(14*30rows) 420(14*30rows)
Wire weight per unit (kgs) 10.9 5.64 8.4 6.93 8.19
Wire weight saved per unis(kgs) / 5.26 2.5 3.97 2.71
Saving proportion / 48.26% 22.94% 36.42% 24.86%
