LR-PSA-75P High Efficiency Semi Automatic Pocket Spring Assembly Machine
You are here: Home » Products » All Mattress Machine » Mattress Spring Machine » Pocket Spring Machine » LR-PSA-75P High Efficiency Semi Automatic Pocket Spring Assembly Machine

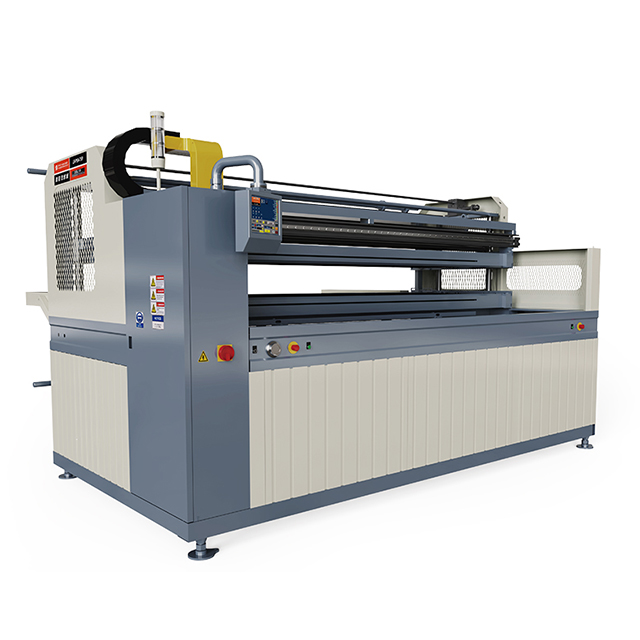

LR-PSA-75P High Efficiency Semi Automatic Pocket Spring Assembly Machine

Semi Automatic Pocket Spring Assembly Machine is a high efficiency, high performance model. semi automatic pocket spring assembling machine is the most economical pocket spring assembler model for mattress manufacturers. It has stable performance and high quality.
Quantity:
  • LR-PSA-75P
  • Stenburg Mattress Machinery

       1

LR-PSA-75P Automatic Pocket Spring Assembly Machine

Product Description

LR-PSA-75P Automatic Pocket Spring Assembly Machine is a high efficiency, high performance model. Equipped with high-performance glue dispensing system, equipped with independent three-nozzle design, advanced control method, digital adjustment of the size of the pocket spring, automatic induction cutting and other functions. Its output can be doubled that of other models

Technical Characteristics

1. Produces 5 rows per minute

2. The glue device and the spray glue are integrated, the glue is automatically sprayed, the glue is evenly distributed, and the glue is firm.

3. Continuous or interrupted glue-extruding mode according to requirement;save up to 30% hot melt cost when interrupted gluing mode selected.

4. Electrical and control components use world-class brands.

5. Built-in movable spring fixing block push groove makes the bag spring bed net stick evener

Technical Specification

Character
Production capacity 5-6 strings/min
Hot melt application system Nordson(the USA)or Robatech(Switzerland)
Capacity of glue tank 7kg
Gluing method Continuous gluing mode/interrupted gluing mode
Control of assembling platform Electronic control
Possibility of assembling zoning tape Possible
Possibility of assembling zoning mattress Possible
Operation and application Feed the pocket spring strings manually
Air pressure 0.25m3/min
Air pressure 0.6-0.7mpa
Power consumption in total 6.5kw
Power requirement voltage 3AC 380V
Frequency 50/60HZ
Input current 17A
Cable section 3*6mm2+2*4mm2
Working temperature ﹢5℃±35℃
Weight Approx.2600kg
Consumption Material Data
Non-woven fabric
Fabric density 65-80g/m2
Fabric width 450-2200mm
Inner dia.of fabric roll Min.60mm
Outer dia.of fabric roll Max.600mm
Hot melt glue
Shape Pellet or pieces
Viscosity 125℃---6100cps
150℃---2300cps
175℃---1100cps
Softening point 85±5℃
Working Range
  Spring Waist Diameter Pocket Spring Height
1 45-75 100-300
2 30-75 60-240
