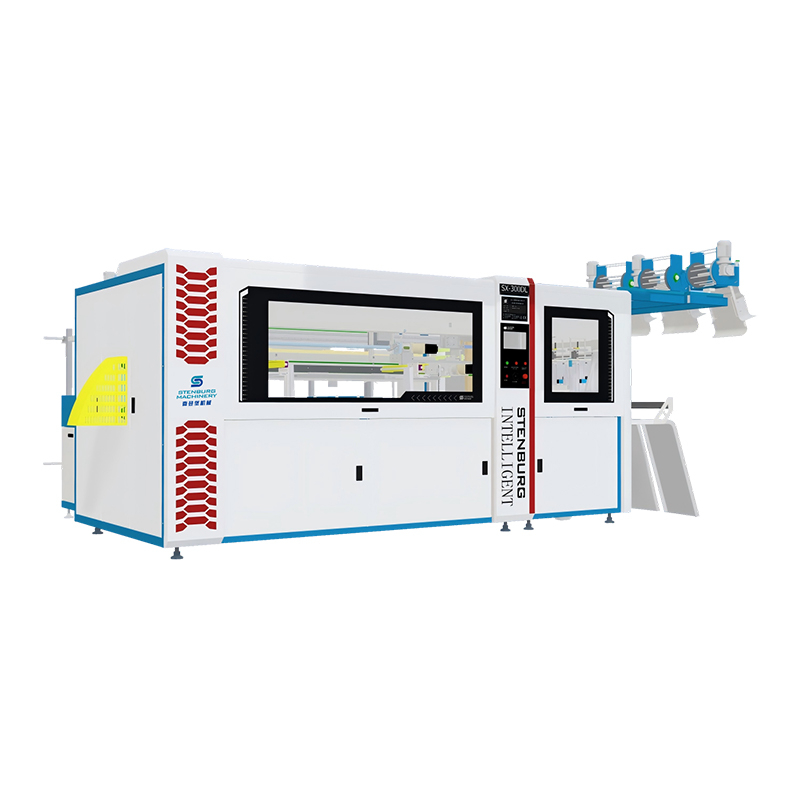

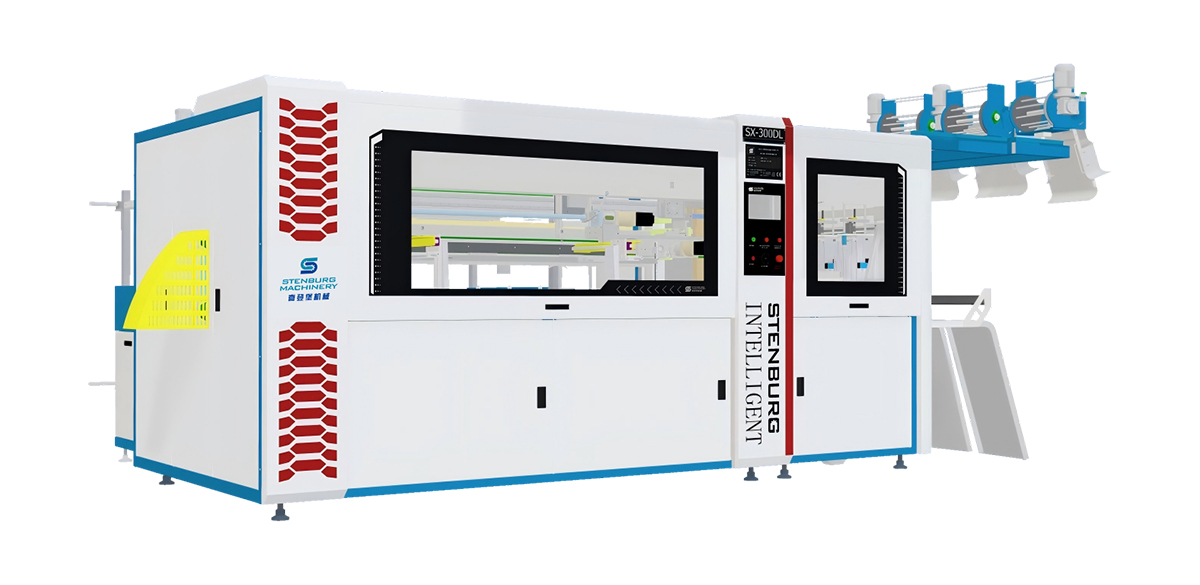

SX-300DL Digital Mattress Pockets Assembly Machine PLC-Controlled 380V 17-20 Rows/Min

1.Work with 3 coilers,  2.Order schedule with quality control, 3.With or without upper and lower fabric,  4.Make 4 sofa units at
the same time,   5.Capacity:17-20 rows/min, 6.5 glue lines are possible
  • SX-300DL

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

SX-300DL Digital Mattress Pockets Assembly Machine PLC-Controlled 380V 17-20 Rows/Min

Product Description

1.Work with 3 coilers,  2.Order schedule with quality control, 3.With or without upper and lower fabric,  4.Make 4 sofa units at the same time,   5.Capacity:17-20 rows/min, 6.5 glue lines are possible

Detail Pictures

SX-300DL细节图

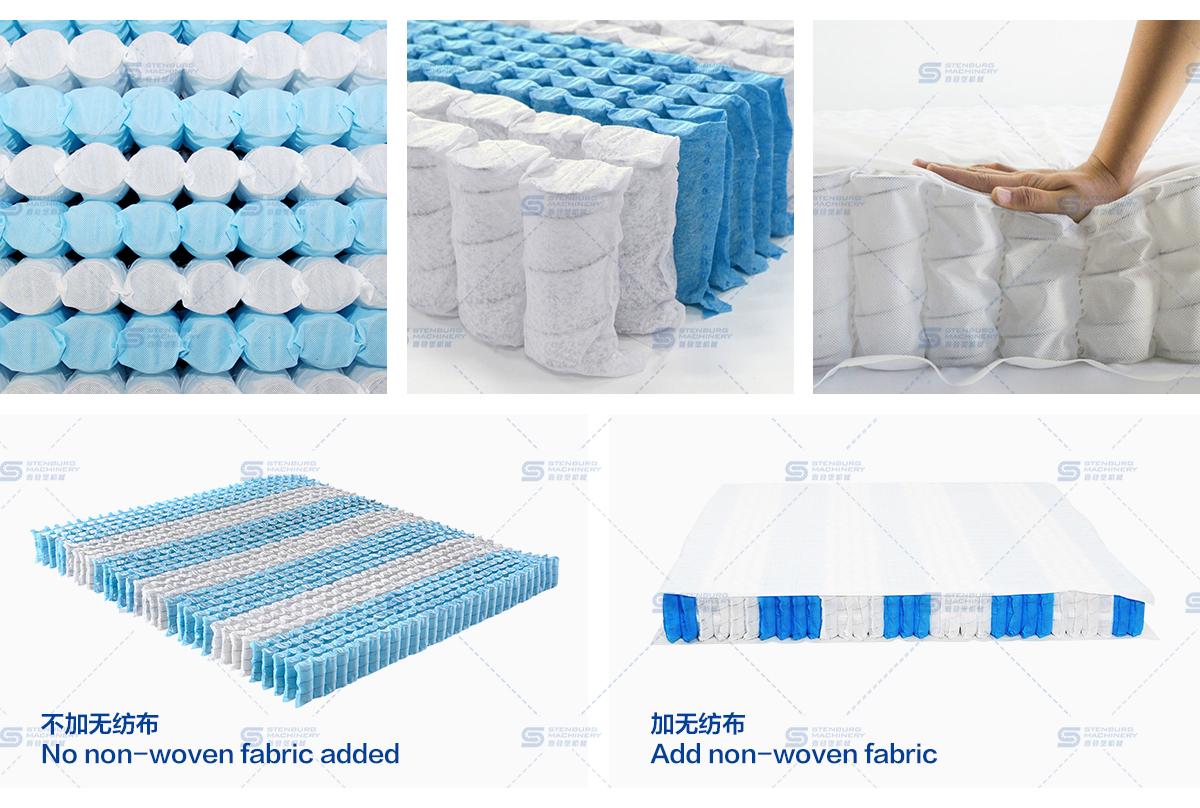

Effect Pictures

SX-300DL效果图

Technical Specification

Spring Type Barrel or Cylindrical
Spring core width ≤2200MM
Capacity 17-20rows/min
Spring Waist ext Dia Φ37-Φ75MM
Pocket Height 55-240MM(>240MM on request)
Fabric Thickness ≥60G/m²
Fabric width ≤2300MM
Main Drive Power 15KVA
Air Consumption 10m³/H
Weight 5140KG
Power Requirement 380V,3 Phase,50-60HZ(Option:415V-480V,220V)
