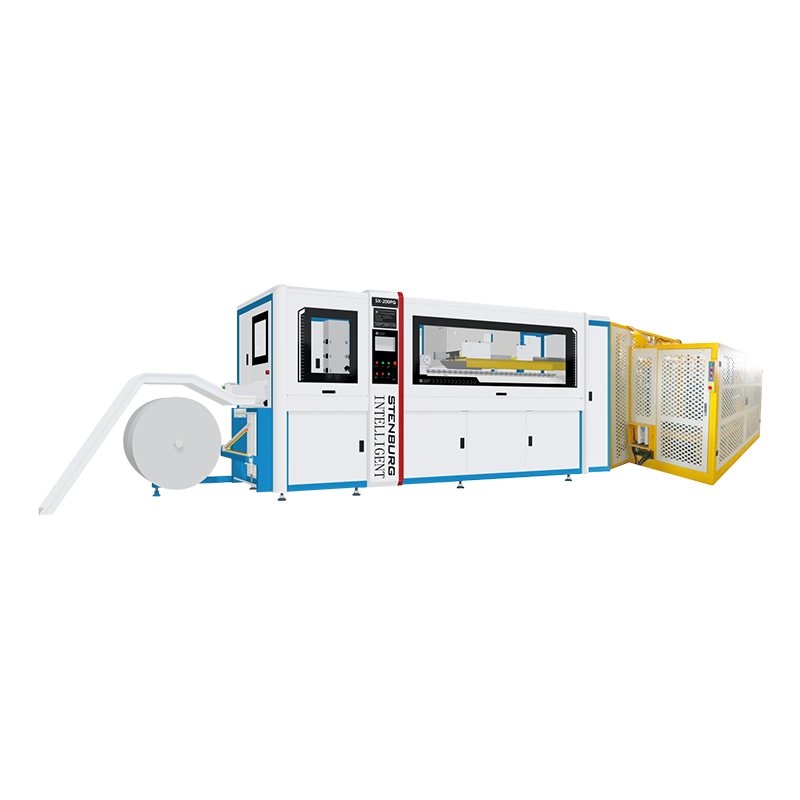

SX-200PG Digital Pocket Spring Mattress Coiling Machine 200 Springs/Min PLC Core

The machine SX-200PG is a machine for the production of pocket springs. Its maximum production capacity is 200 pieces/minute, and this product is a patented product.
  • SX-200PG

  • Stenburg Mattress Machinery

Availability:
Quantity:

1200

SX-200PG  Digital Pocket Spring Mattress Coiling Machine 200 Springs/Min PLC Core

Product Description

The machine SX-200PG is a machine for the production of pocket springs. Its maximum production capacity is 200 pieces/minute, and this product is a patented product.

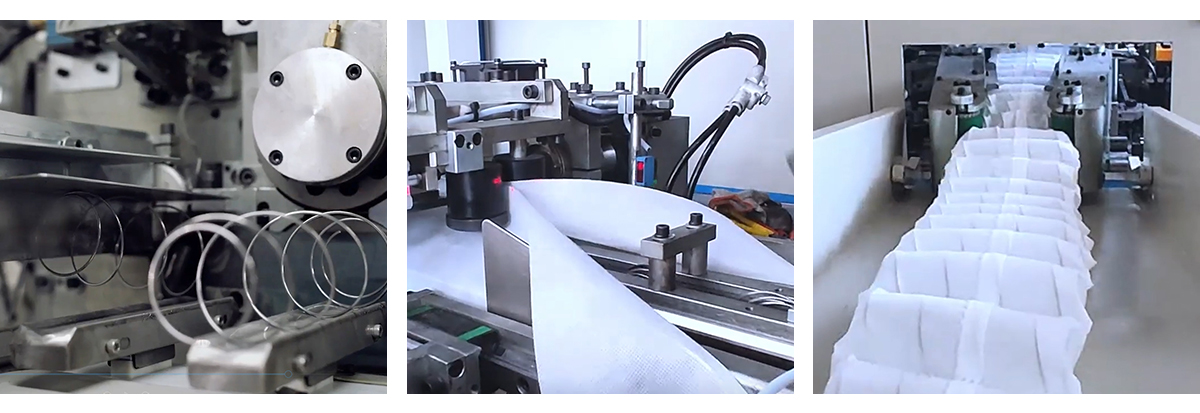

Detail Pictures

SX-200PG细节图

Effect Pictures

SX-200PG效果图

Technical Specification

Spring Type Barrel or Cylindrical
Capacity 200 springs/min.
Spring Waist ext Dia Φ48-Φ72,Φ37-Φ50MM (Φ72MM on request)
Steel wire Gauge Φ1.4-Φ2.3MM(Φ2.3MM on request)
Pocket Height 0-240MM ( 220MMon request)
Fabric width ≤770MM
Fabric Thickness ≥60G/m²
Fabric Diameter ≤1M
Weight 5205KG
Power Requirement 380V,3 Phase,50-60HZ(Option:415V-480V,220V)
