LR-PSA-99P Pocket Spring Assembling Machine
Technical Characteristics
1.Patented Product
2.17-18 strings/min
3.Conforming to CE standard
Product Description

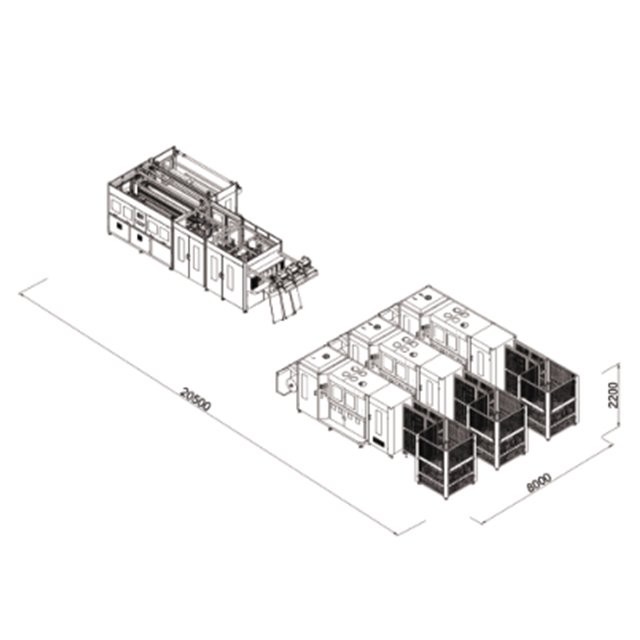

LR-PSA-99P Pocket Spring Assembly Machine is a high-efficiency automatic equipment for bonding bagged spring strips into bed core. The machine adopts a new process and conveying method, and can input three different stiffness spring strips to produce in-line type. honeycomb type, zoned spring bed core, can be wrapped up and down. The machine can be used to feed two bed cores with a width of 1.1 meters at a time, and the efficiency is significantly improved. An adhesive machine can be equipped with three pocket spring machines to form an efficient production line.

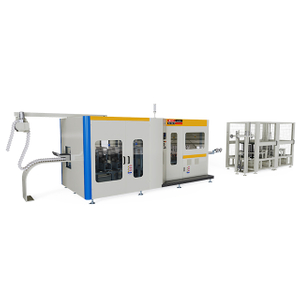

Detail Pictures
Effect Pictures
Technical Specification
| Character |
| model | LR-PSA-99P |
| Production capacity | 17-18 strings/min. |
| Hot melt application system | Nordson (the USA) or Robatech ( Switzerland) |
| Capacity of glue tank | 15kg/18kg/30kg |
| Gluing method | Continuous gluing mode/interrupted gluing mode |
| Control of assembling platform | Electronic control |
| Possibility of assembling zoned tape | Possible |
| Possibility of assembling zoning mattress | Possible |
| Air consumption | 0.3 m⊃3;/min. |
| Air pressure | 0.6-0.7 mpa |
| Power consumption in total | 15KW |
| Power requirements | Voltage | 3AC 380V |
Frequency | 50/60 Hz |
Input current | 25A |
Cable section | 3*10mm2+2*6mm2 |
| Working temperature | +5℃-+35℃ |
| Weight | Approx.4500Kg |
| Consumption Material Data |
| Non-woven fabric |
| Fabric density | 65~80g/m2 |
| Fabric width | 450-2200mm |
| Inner dia. of fabric roll | Min.60mm |
| Outer dia. of fabric roll | Max.600mm |
| Hot melt glue |
| Shape | Pellet or pieces |
| Viscosity | 125℃---6100cps
150℃---2300cps
175℃---1100cps |
| Softening point | 85±5℃ |
| Working range(mm) |
| Spring Waist Diameter | Pocket Spring Height |
| Φ37-75 | 55-250 |
