SB-2A Double Heads Mattress Serging sewing Machine

Mattress border serging machine has two Pegasus sewing head to overlock both mattress border sides. It can work with high speed, stable perfomance and high efficiency.
Availability:
Quantity:
  • SB-2A
  • Stenburg Mattress Machinery

sb-2a

SB-2A Double Sewing Heads Serging Machine

Technical characteristics

1.It has two independent sergers, synchronization of them is controlled by two AC motors with frequency converter velocity modulation,

2.The machine has two servo drive variable speed puller with long lasting urethane rollers, material tension device, and re winder.

3.Machine has excessive material auto-cutting device along with a vacuum scrap-collection device. Additionally, it is equipped with thread break detection device as well as material splice auto-stop device.

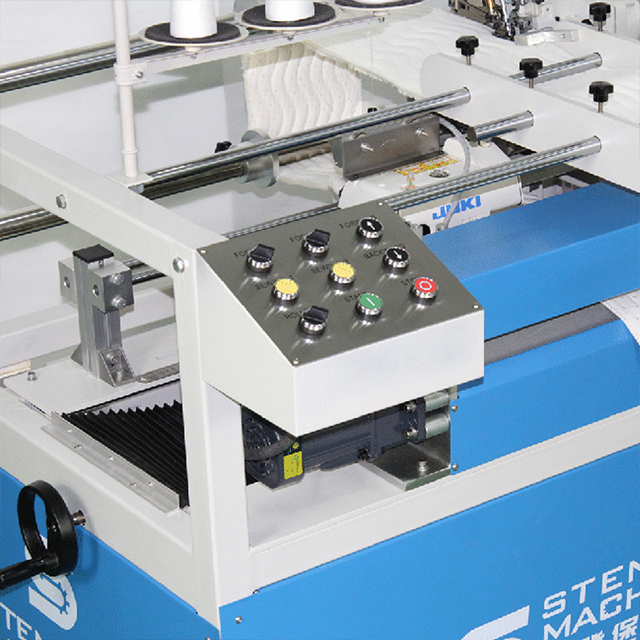

Detail PicturesDetail Pictures

Effect PicturesEffect Pictures

Technical Specification

model SB-2A
Serging mode  Single border, Dual border
Sewing width 5 – 7 mm
Serging width 150-500 mm(adjustable)
Serging speed 15-30 M/min(adjustable)
Max. Material thickness  ≤ 20mm (middle density)
Needle Pitch 0 – 6 mm(adjustable )
Max. Presser lift  15 mm
Rated air pressure 0.5-0.8 Mpa
Total Power  2.5 KW
Voltage 3 Phase,380V,50HZ
Weight 550KG
