SB-60 Cost-Effective Mattress Flanging Machine

Mattress Flanging Machine have strong cloth-feeding system ensuring feeding precision and perfect seam.The sewing speed is controlled with imported needle position motor and control box.Equipped with pneumatic auto presser foot, and special enc order to position needles. Low noise, small vibration, stable performance!
Availability:
  • SB-60
  • Stenburg Mattress Machinery

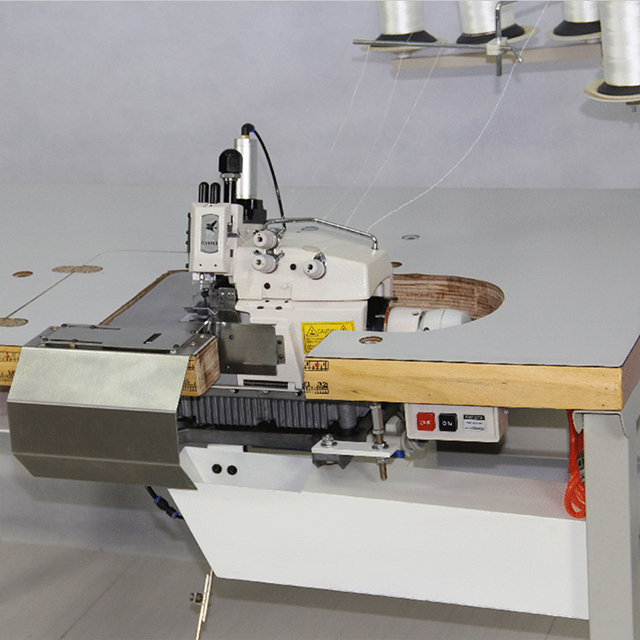

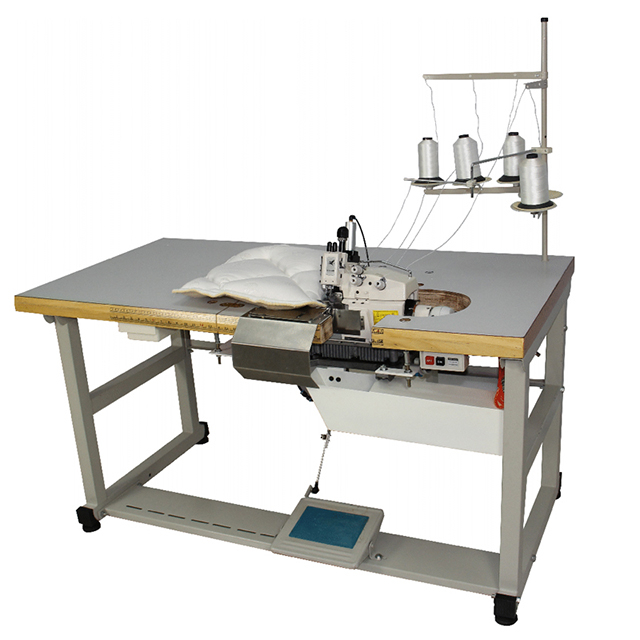

SB-60 Mattress Flanging Machine

Technical characteristics

1. Strong cloth-feeding system ensuring feeding precision and perfect seam.

2. The sewing speed is controlled with imported needle position motor and control box.

3. Equipped with pneumatic auto presser foot, and special enc order to position needles. Low noise, small vibration, stable performance.

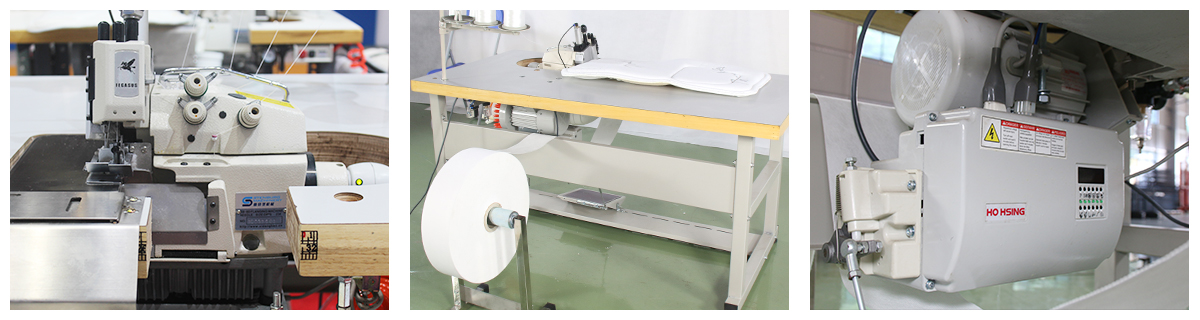

Detail Pictures

Detail Pictures

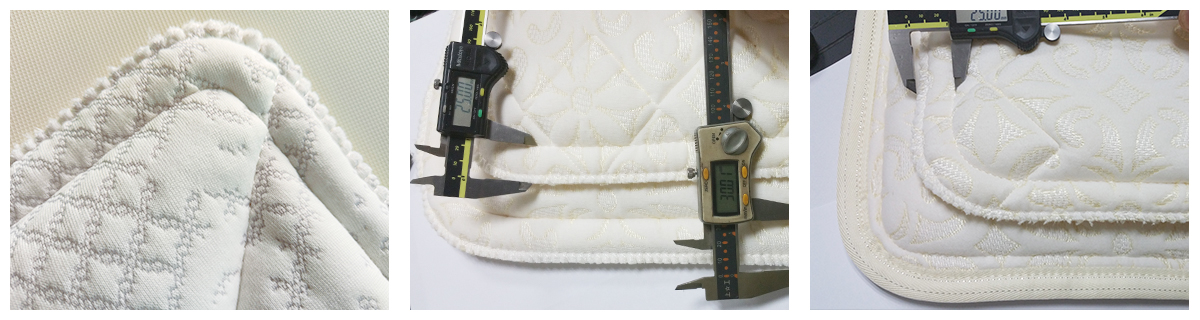

Effect Pictures

Effect Pictures

Technical Specification

model SB-60
Max Rotate Speed  2200 rpm
Flanging Stitch Length 5mm
Flanging Thickness 30-60mm
Stitch Length 2-6mm
Needle Model B64/TV 64
Air Pressure 0.5-0.8mpa
Total Power 560 w
Voltage 1 phase, 220V, 50 HZ
Weight 135kg
