You are here: Home » Products » Mattress Spring Machine » Bonnell Spring Machine » SX-200 Automatic High Speed Bonnell Spring Assembling Machine

Product Category

This product is no longer available

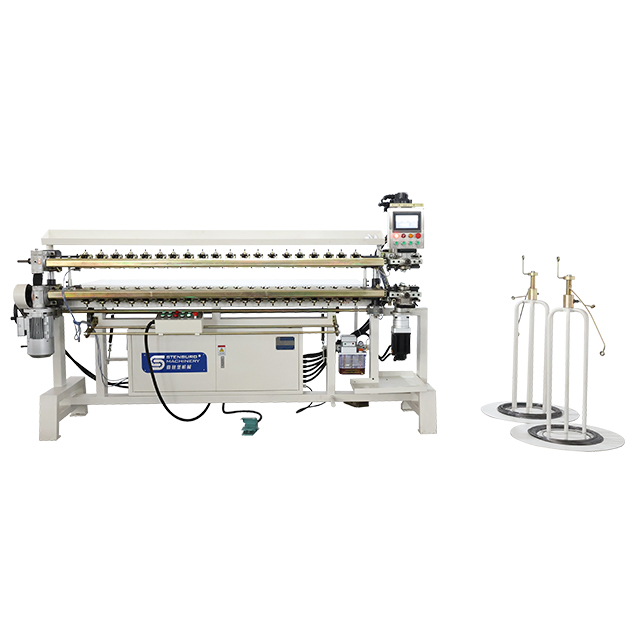

SX-200 Automatic High Speed Bonnell Spring Assembling Machine

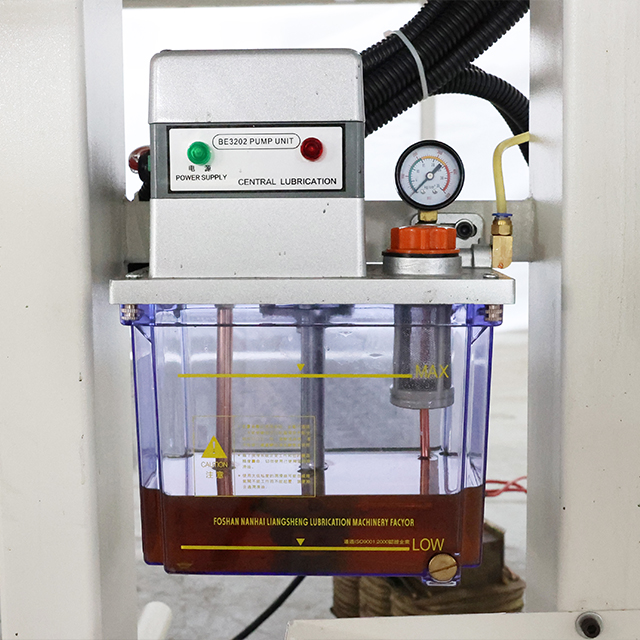

Bonnell spring coiling machine is part of the equipment to produce bonnell spring mattress units. It can produce 80 mattresses per 8 hours. It has servo motor and automatic lubrication system.
  • SX-200

  • Stenburg Mattress Machinery

Availability:

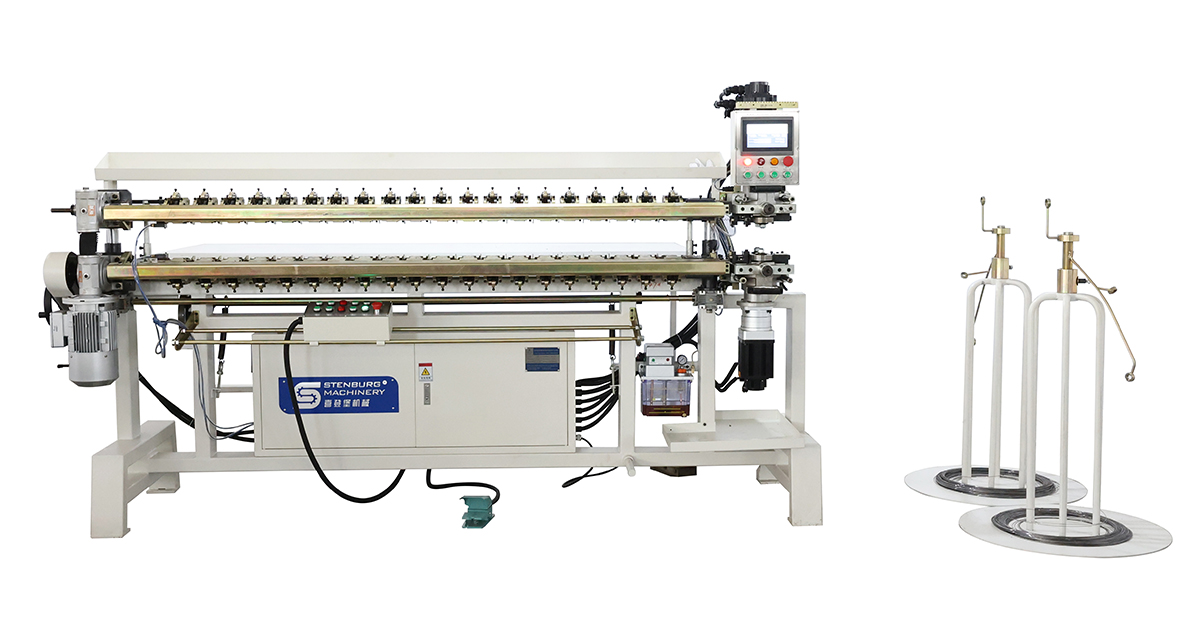

详情图

SX-200 Servo motor Assembling machine

Technical Characteristics

1.only one person to put on the exoected sprin so that can achieve up and down at the same time network series.

2.The machine use the automatic clamping device shutting up ,up and down to achieve synchronization spring schedule string network

3.lf string is in place so it can automatically to cut wire spring c amp shut. expected to push fonward bed nets aucoaticall , sut down autoxrtically if happning encountered failures and beep alarm

4.The size Bed nets can be adjusted .The height can be a free take-off and landing.The computer wil automatically record the number of sheets and set rows

5.It has the ability of beautiful string of let, relatively tight string net. fast speed to time-saving . high efficient and to reduce labor intensity.

6.Use line with servo motor. are free to set the width.

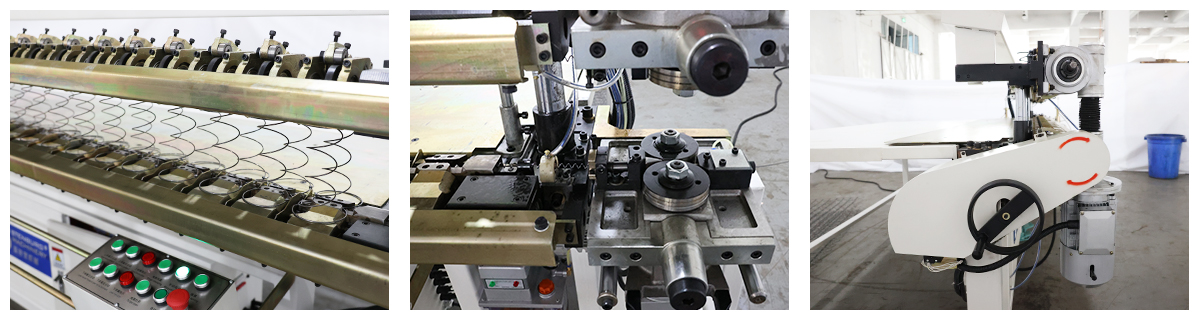

Detail Pictures

Detail Pictures

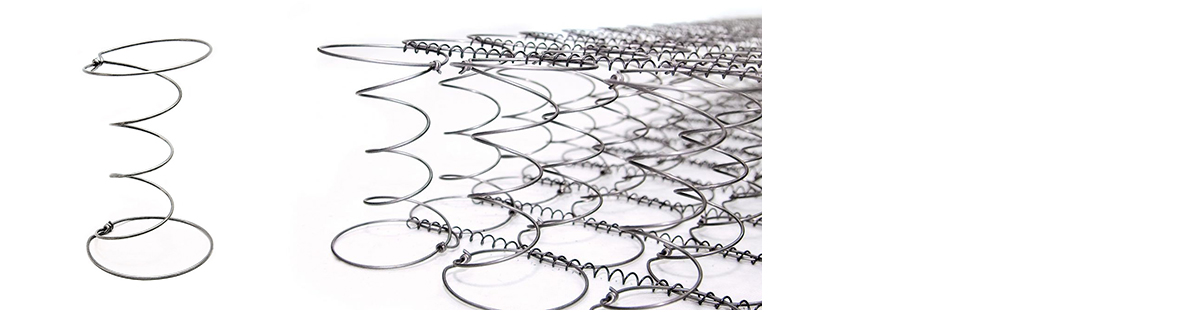

Effect Pictures

Effect Pictures

Technical Specification

Technical Data
Spring Type Bonnell
Capacity 50-80 Sheets /8 Hours(1800MM*2000MM)
Max Width 2M
Height Wire Gauge Φ1.3-Φ1.5MM (Option:Φ1.6MM)
Spring End Ring Φ1.8-Φ2.4MM
Jaws Spec 68MM Jaws Φ62-Φ68MM
78MM Jaws Φ65-Φ70MM
88MM Jaws Φ82-Φ88MM
92MM Jaws Φ75-Φ90MM
98MM Jaws Φ82-Φ95MM
Spring Height 70-190MM (Option:190-210MM)
Total Power 3KVA
Weight Net Approx: 990KG
Power Requirement 380V,3 Phase,50-60HZ(Option:415V-480V,220V)
