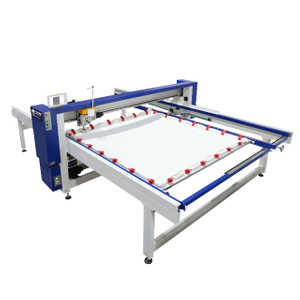

XDB-S3000 High Speed Single Needle Computerized Quilting Machine
Products Description
It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast.
Technical Characteristics
1. Advantage quality lock stitch sewing head, rotating speed,can up to 3000 RPM.
2. Diagnostic testing for thread broken and pattern compensation.
3. Adjustable presser plate in different thickness.
4 .Memories restart all patterns after stop quilting.
5. 3600T&J and simple pattern,more than 200 patterns ;.
6. Capable pattern-designing software can adopt various quilting file and quilting system.
7. Daily output counter and total output counter.
8. Needle arrangement and patter showing.
9.Automatic needle lift,pneumatic thread cutting and thread break detector;
10. Pattern compensation and correction.
1 1. Servo Driver motor operations.
12. Automatic material feeding and cutting device
Detail Pictures
Effect Pictures
Technical Specification
| Model | XDB-S3000 |
| Quilt width | ≤2400mm |
| Quilting thickness | ≤70mm |
| Needle type | 130/21 |
| Stitch | 2-6 mm |
| Rotation speed of needle | 3000RPM |
| Production speed | (40-120)m/h |
| Power | 8.8 KW |
| Voltage | 3-Phase,380V,50Hz / 3-Phase,220V,50Hz |
| Weight | 4500Kg |
| Size (L*W*H) | 10000 × 4500 × 1600mm |
