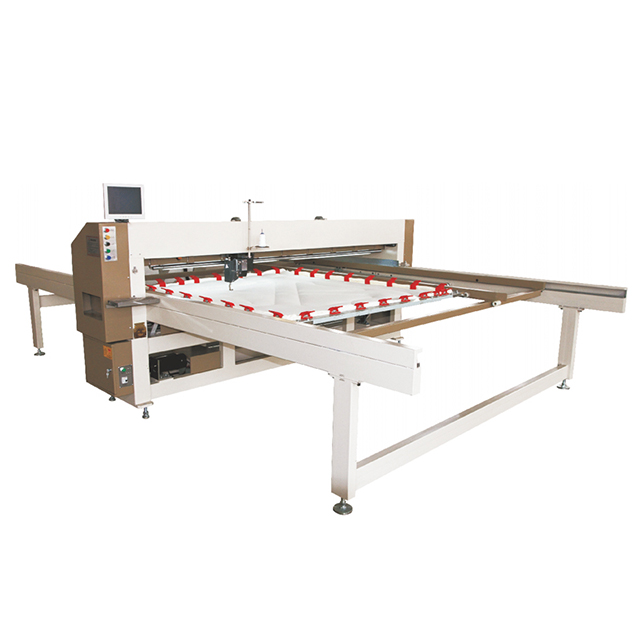

XXD-26 Computerized Single Needle Quilting Machine

Computerized Single Needle Quilting Machine, It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast.
  • XXD-26

  • Stenburg Mattress Machinery

Availability:

   1

XXD-26 Computerized Single Needle Quilting  Machine

Products Description

It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast.

Technical Characters

1. Any pattern auto-quilting;

2. Quilting with equal stitch. It is to  amend stitch and speed;

3. Clockwise and counterclockwise  quilting and empty forward or backward or thread button is provided;

4.The needle automatically stops at high  position when the machine

5.Automatic detection and shutdown when the thread  break

6. Real-time display of quilting status  and operation tips

7. It automatically returns to original  point

8. The function of pattern tracing to  make the needle position quickly

9. It has the function to collect  statistics of work and time;

10.The pattern can be automatically  scaled by the pattern edge setting.

12. Two USB ports for rein stalling the  computer system and inputting patterns.

13. The spindle speed is increased and  the work efficiency is increased.

14. For large hook applications, the  bobbin is twice as large as a small hook.

15. The system has a test function for  easy maintenance.

16. The graphic has a rotation and flip  function.

Technical Specifications

Model XXD-26
Working Form Full-automatically
Usage Quilted bedding,    a variety of patterns
Max working width 2.6m
Max quilting    thickness 20-800G/m2
Max size of    dropping needle 2.42*2.6m
Needle Speed 2200RPM
Maximum size 2.6*2.8m
Power 1.5KW
Output 1000
Weight 1.47KG
