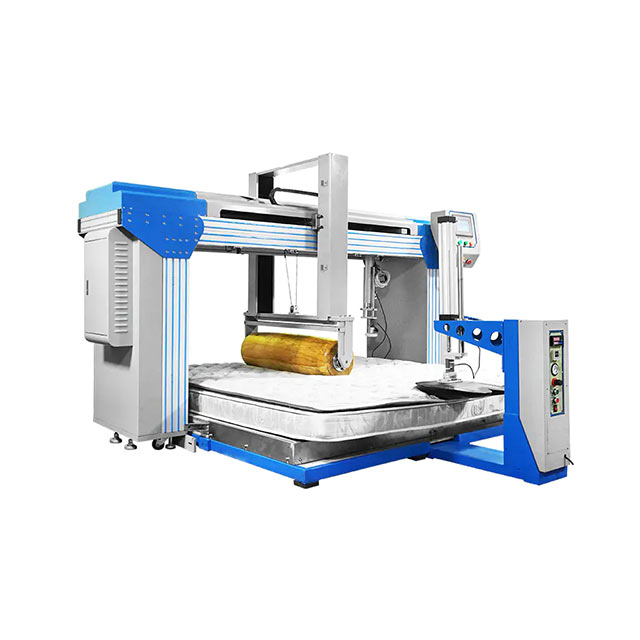

XDB-F764 Mattress Rolling & Firmness Durability Tester

model: XDB-F764
product name: Mattress Rolling & Firmness Durability Tester
Application: Mattress testing equipment
Brand Name: STENBURG MACHINERY
Place of Origin: Guangdong, China (Mainland)
Certificate: ISO9001: 2000
Minimum order quantity: 1 set
Price terms: FOB, C&F, CIF (optional)
Payment method: letter of credit wire transfer
Packaging details: film packaging/wooden box
Delivery time: 15~30 working days
  • XDB-F764

  • STENBURG MACHINERY

Availability:
Quantity:

5

XDB-F764   Mattress Rolling & Firmness Durability Tester

Product Description

It apply to Innerspring, Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.

Technical Characters

1. Imposed the pressure on mattress by a transducer, pressure range to 300KG

2. Adjust the pushrod stroke on mattress , maximum force = 1025N  minimum force = 22N

3. Pusher travel speed adjustable, about 100 weeks times per minute

Technical Specifications

Model

XDB-F764

Suitable maximum specimen 2.2m *2.2m
Display Accuracy 0.001kgf
Deformation precision 0.001mm
Check the height loss automatically 200、6000、12500、25000、50000、75000、100000
Counter range 0-99999 times

Weight

about 650Kg
