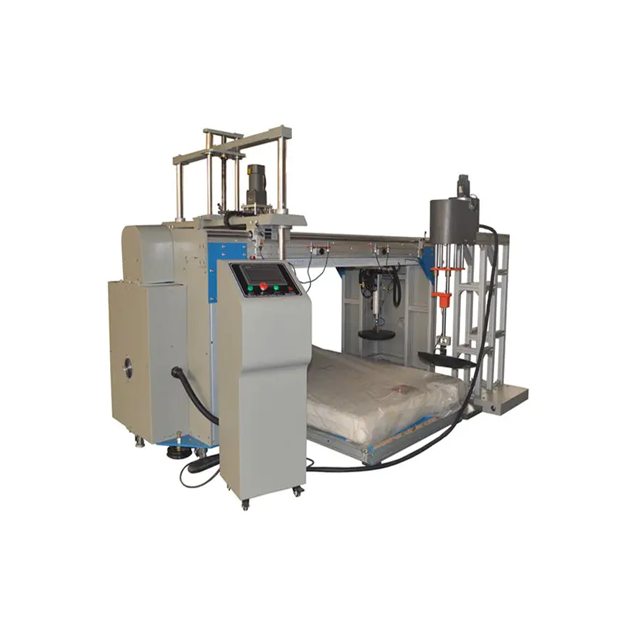

XDB-F764X   Mattress Intergrated Tester

model: XDB-F764X
product name: Mattress Intergrated Tester
Application: Mattress testing equipment
Brand Name: STENBURG MACHINERY
Place of Origin: Guangdong, China (Mainland)
Certificate: ISO9001: 2000
Minimum order quantity: 1 set
Price terms: FOB, C&F, CIF (optional)
Payment method: letter of credit wire transfer
Packaging details: film packaging/wooden box
Delivery time: 15~30 working days
  • XDB-F764

  • STENBURG MACHINERY

Availability:
Quantity:

XDB-F764X

XDB-F764X   Mattress Intergrated Tester

Product Description

The mattress comprehensive tester is a comprehensive mattress multi-function testing equipment, which can test the mattress stably, test the hardness of the mattress, and comply with international standards such as ASTM F 1566.

Technical Characters

1)Durability test

1.According to different mattress to adjust the rolling stroke (adjust the limit switch position)

2. Low coefficient of friction guide, ensure full drum weight on the mattress.

3. The LCD Touch Screen display provides easy control and setting.

Test standard: ASTM F 1566, EN 1957

Mattress durability test application and test purpose:

The mattress durability tester uses a horizontal hexagonal wooden roller or cylinder (250 mm in diameter at both ends and 300 mm in the middle) to roll back and forth on the mattress to simulate human movement to evaluate the durability of the mattress.

The mattress durability tester is manufactured to determine the durability of any type of mattress and box spring unit by simulating long-term use conditions, regardless of the material of construction. It consists of a weighted roller that moves laterally on the test mattress to simulate human movement. By sliding the stroke adjuster to the left or right, the stroke length of the roller movement can be easily adjusted to suit the relevant mattress under test. The Roller can be easily loaded and unloaded onto the test mattress through a motor-driven lifting assembly.

2)EN Hardness & Height Change Test

Test Standard: ASTM F 1566, EN 1957

Mattress Hardness & Height Change Test Applications& Test Purpose:

The test machine combines the loading device (roll) with a hardness measuring device. Thus, firmness test can be carried out according to ASTM F 1566 or EN 1957, without the need for a rearrangement of the specimen, which would falsify the measured values. It can also display height change by servo measuring system.

After simply loosening the front frame reinforcement the specimen can be inserted into a flexible test base plate. This makes the testing device very effective and space-saving.

Software allows for a flexible parameter entry, the execution of different testing procedures, a graphical representation of measured values, test evaluation, and logging. Then the pre-set number of cycles is reached, the test is ended automatically.

3)Edge Test

Test Standard: EN1725

Edge Test Applications& Test Purpose:

The machine increases mattress fatigue test function, it simulate human sitting on the edge of mattress, with 1000N force to test the fatigue of mattress for 5000 cyclic according to EN175.

Technical Specifications

Model XDB-F764X
Durability Test

Hexagonal Wood Barrel  (ASTM F 1566)

109kg, length 915±75 mm

Cylinder wood barrel (EN1957) 140kg, length 1000mm
Maximum size of mattress 2200m×2000m×400mm
Test speed 0-20 r/min
Control method PLC
Dimension 2900mm×2700mm×1800mm
Power AC380V±10%, 50/60Hz, three phase
Durability Test

Load block

Diameter 355 mm, Spherical radius of curvature 800mm, Front edge radius of curvature 20mm

Speed 90mm/min
Stroke 350mm
Driving method SMC brand electric cylinder
Load cell 200kg (Germany brand tecsis)
Load plate position adjustment 300mm
Height change test
Test method High-precision servo measuring system
Edge Test

Test Force

1000N

Driving method Air cylinder
Times 5000 cycles
Hold time 3S
