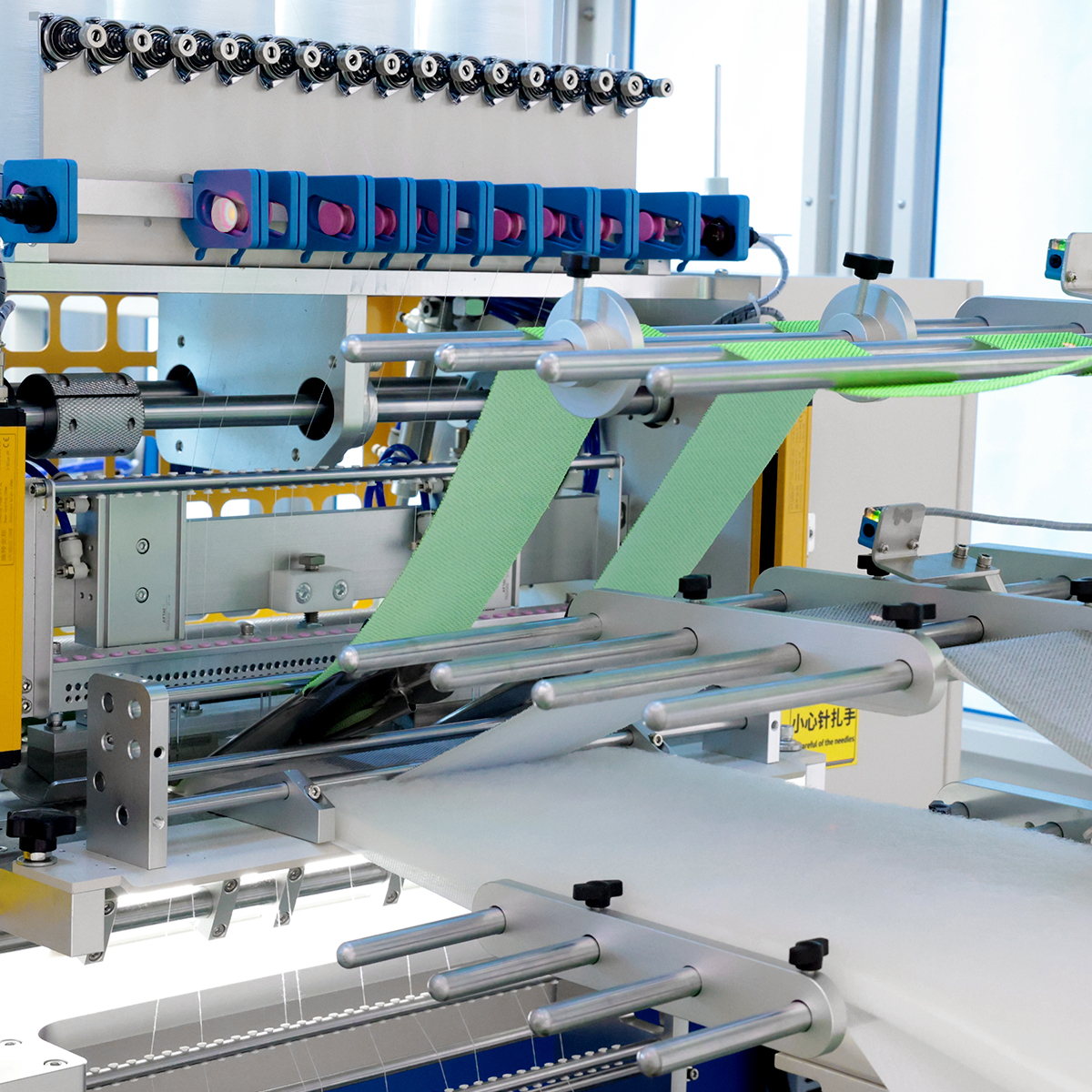

Effect Pictures

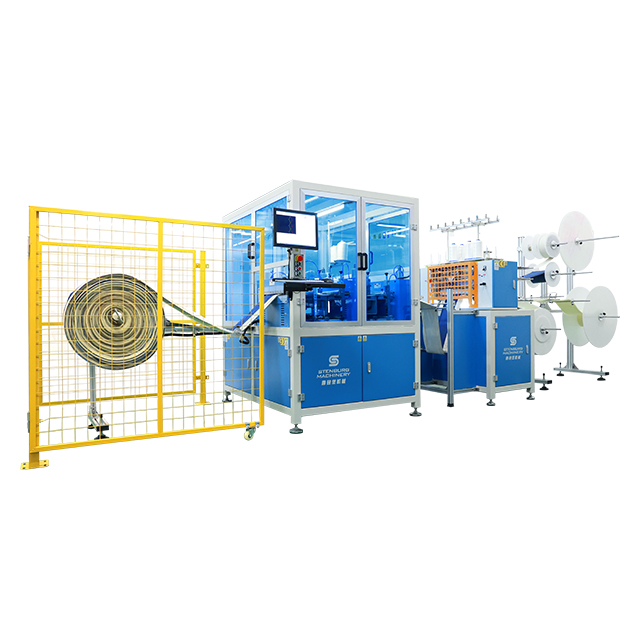

BQ-65 Automatic Mattress Border Quilter Machine
Product Description
The machine consists of multineedle sewing head and two Juki sewing heads. It can be programmed any design patterns.It is easy to choose any design by touch screen easily. It can also add decorative tape and 3D mesh fabric on the mattress border. It is important sewing machine for high class mattress production.
Technical Characteristics
1. Automatic material transport ;
2. Broken thread detector, upper thread bottom thread, shut down immediately;
3. Humanized bottom threading, convenient and fast;
4. Flexible fixture positioning, can achieve a variety of different styles, simple operation;
5. Flat synchronous wheel tension control,upper and lower limit online work;
6. The use of two Japanese juki Lock stitch sewing heads without the need to replace the bottom thread, stable, high efficiency;
7. Using CAD drawing software, you can draw directly on the display screen, convenient and fast;
8. It can display the process of graphic sewing, track the running of the pattern track, and automatically detect the working state;
9. Humanized design concept, safe, simple operation, stable and durable.
Technical Specification
| Model | BQ-65 |
| Sewing width | Quilting Motor: 300mm Linear Motor: 16" (406mm) |
| Sewing thickness | ≤25mm (depending on material density) |
| Needle stich | 6.35mm |
| Stitch | 2-5mm |
| Material width | 500mm |
| Maximum rotation speed | Quilting Motor: 2200RPM Linear Motor: 1200RPM |
| Total power | 5.5kw |
| Rated air pressure | 0.6-0.8MPa |
| Weight | 1500Kg |
Floor Plan
Success Case
