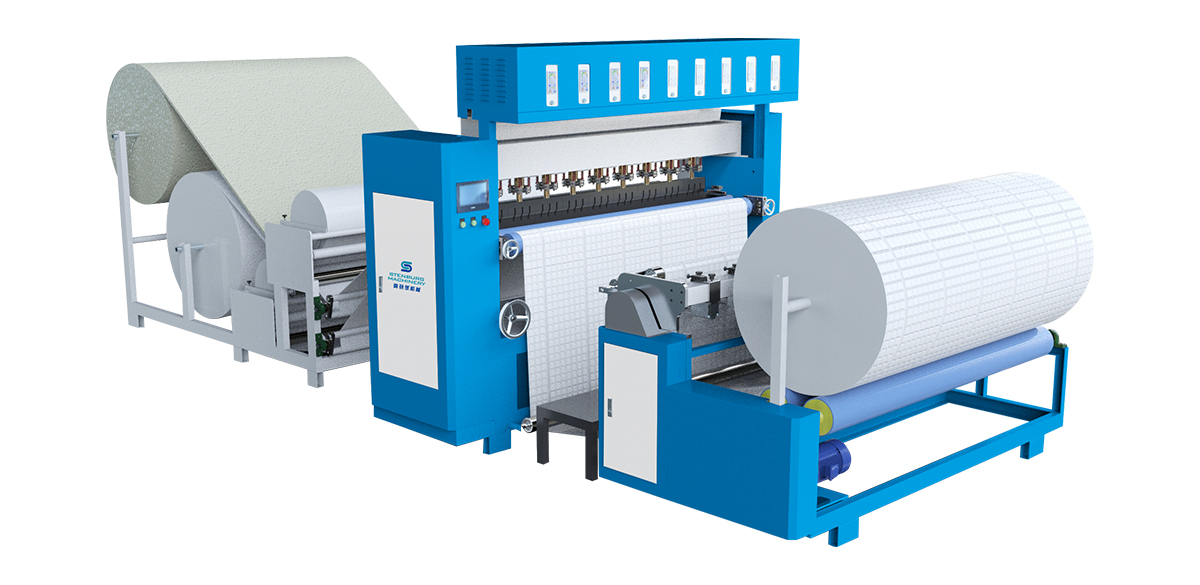

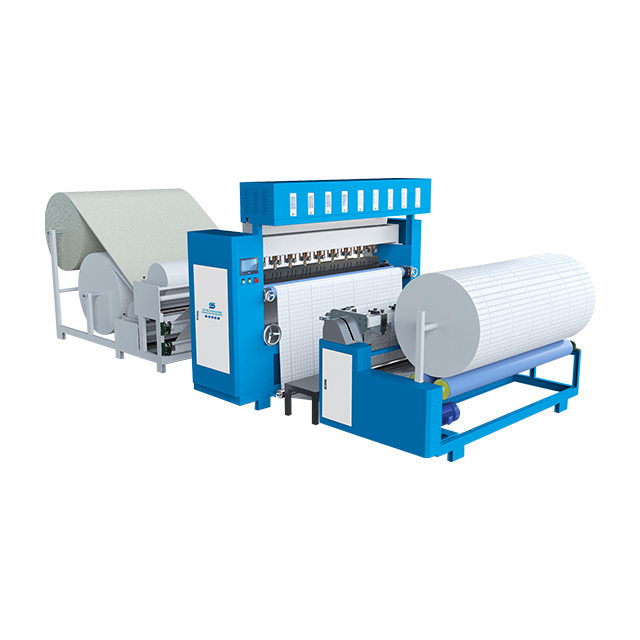

XDB-UQ01 Ultrasonic Mattress Quilting Machine(Border Slittng)

Efficiency is multiplied—reaching 3 to 5 times that of traditional sewing machines. It saves thread and reduces labor requirements; it supports both single-line and multi-line cutting, and patterns can be switched simply by changing the pattern roller.
  • XDB-QU01

  • Stenburg Mattress Machinery

Availability:
Quantity:

XDB-QU01 Ultrasonic Mattress Quilting Machine(Border Slittng)

Technical Characteristics

1. Efficiency is multiplied—reaching 3 to 5 times that of traditional sewing machines. It saves thread and reduces labor requirements; it supports both single-line and multi-line cutting, and patterns can be switched simply by changing the pattern roller.

2. The embossing roller can be designed arbitrarily, and different patterns can be made by replacing the embossing roller.

3.Supports widths ranging from 1.2 to 3.2 meters and is compatible with a wide variety of materials, including synthetic fibers, non-woven fabrics, and artificial leather.

4.Automatically completes embossing, lamination, and edge trimming; edges are smooth and burr-free, resistant to collapse under pressure, and exhibit high consistency in both pattern and dimensions.

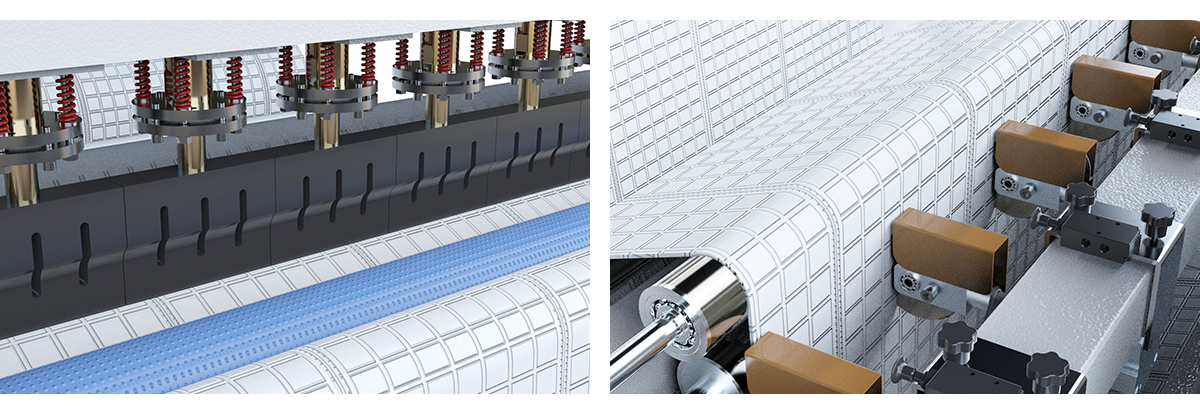

Detail Pictures

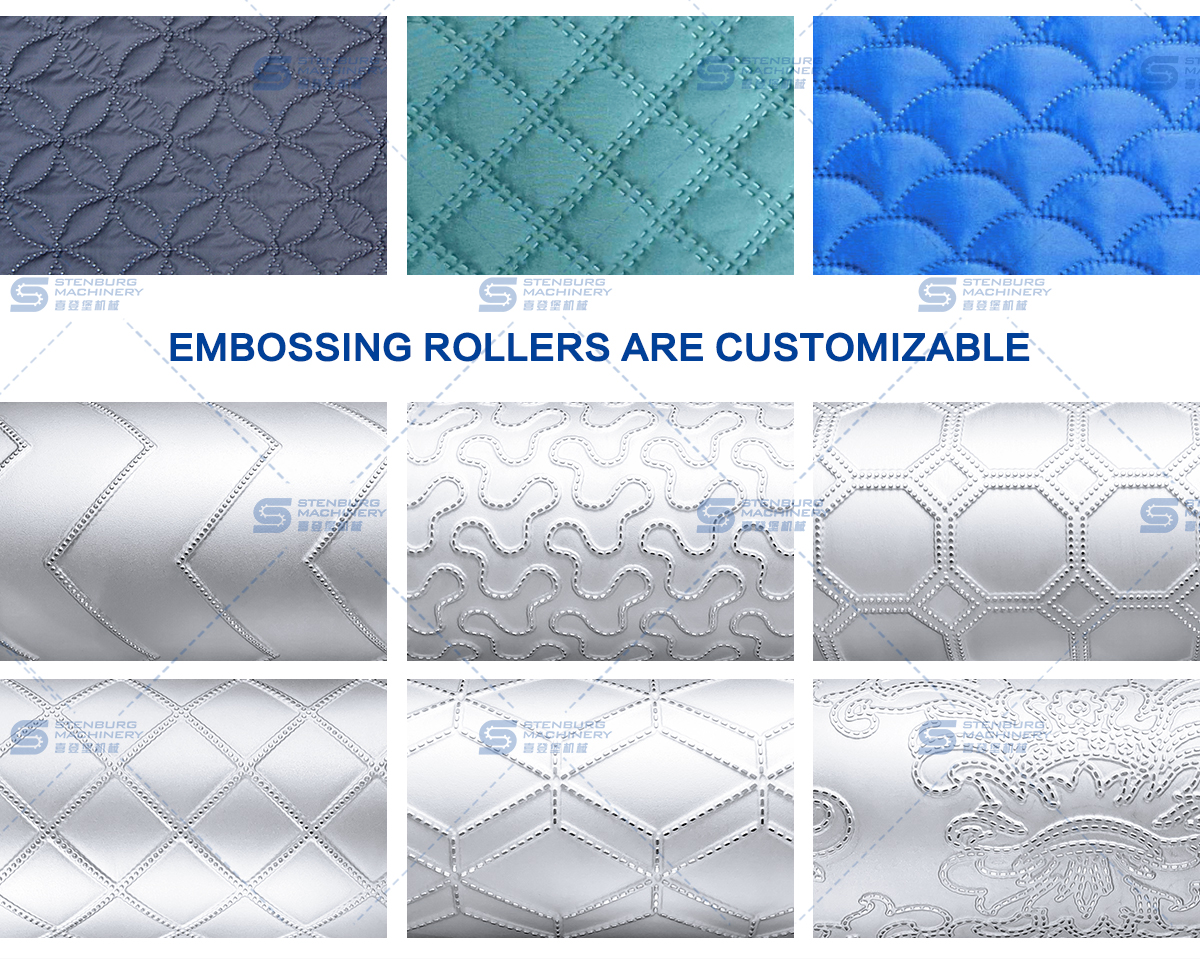

Effect Pictures


Technical Specification

Working Speed

0-13M/MIN

Working width

1850/2000/2200/2400/2600/2800/3000/3200 MM

Customized to requirements

Maximum Quilting Thickness

600GSM

Ultrasonic Welding Horn Dimensions

200MM

Slitting Knife

11/PCS(Customizable)

Drum Diameter

130-190MM(Customizable)

Drum Depth

2-7MM (Customizable)

Output Power

9KW (Instantaneous Current at Startup 18KW)

Operating Voltage

3P, 380V, 50HZ

Machine Weight

2.8T
