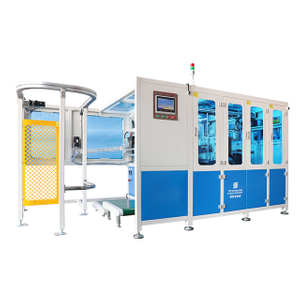

XDB-BQ65-2B Automatic Mattress Border Quilter Serging Machine

XDB-BQ65-2B Automatic Mattress Border Quilter Serging Machine

Model:
XDB-BQ65-2B
Brand:
STENBURG

Quantity:
Availability:





Inquire Add to Basket

Product Description

XDB-BQ65-2B Automatic Mattress Border Quilter Serging Machine

Technical Characteristics

1.Broken thread detector, upper thread bottom thread, shut down immediately.

2.Humanized bottom threading, convenient and fast.

3.Flexible fixture positioning, can achieve a variety of different styles, simple operation.

4.Flat synchronous wheel tension control,upper and lower limit online work.

5.Using CAD drawing software, you can draw directly on the display screen.

6.Can choose JUKI/Golden Wheel lock stitch sewing heads without the need to replace the bottom thread, stable, high efficiency.

7.It can Can display graphic effect, automatically detect working status.

Detail Pictures

细节图

Effect Pictures

效果图

Technical Specifications

Model	Pattern Sewing Machine
Maximum speed	2200RPM
Sewing width	Standard：260mm Special custom：420mm
Sewing thickness	2-26mm
Needle stitch	2-6mm
Voltage power	1 phase 220V 50HZ，3.8KW

Model	Straight Line Machine
Sewing width	406mm
Border width	80-500mm
Sewing thickness	2-35mm
Maximum speed	1200RPM
Needle pitch	6.35mm
Stitch	2-6mm
Weight	2000kg
Voltage power	1 phase 220V 50HZ，1.8KW
